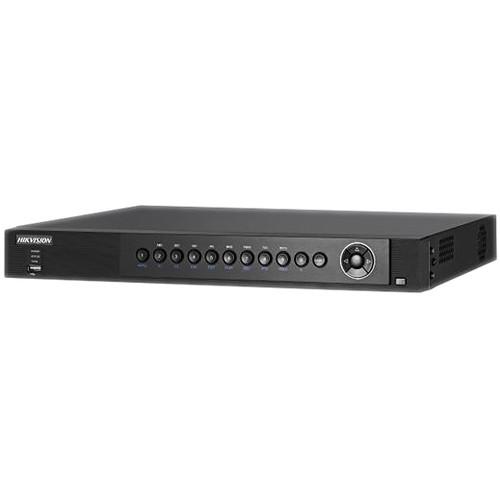

User Manual for Hikvision Turbo HD Tribrid 8-Channel 5MP DVR with PoC Support & 2TB HDD Click to enlarge the picture
Contents of the user manual for the Hikvision Turbo HD Tribrid 8-Channel 5MP
- Product category: Digital Video Recorders (DVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Digital Video Recorders (DVRs)
|
User manual for the Hikvision Turbo HD Tribrid 8-Channel 5MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The Turbo HD Tribrid 8-Channel 5MP DVR with PoC Support & 2TB HDD from Hikvision enables you to record from and manage up to 8 cameras. This DVR offers full channel recording at up to 5MP resolution. It comes with a 2TB HDD preinstalled. Storage is expandable to two SATA HDDs each with a maximum 8TB capacity, for a total of 16TB. A BNC interface supports HD-TVI and analog cameras, and a self-adaptive Ethernet interface supports IP cameras up to 6MP on two channels. H.265+, H.265, H.264+, and H.264 video compression keep file sizes manageable while maintaining quality.
An RCA connector offers two-way audio communication. In addition, there are HDMI and VGA connections for video output, with support for dual streaming to maximize bandwidth efficiency. The HDMI connection can output up to 4K UHD resolution video. - Full channel recording at up to 5MP resolution
- 8-channel synchronous playback support
- Supports up to 6MP IP cameras on two channels
- Supports H.265+, H.265, H.264+, and H.264 IP cameras
- Supports long distance transmission over coaxial cable to a maximum distance of 3940' at 720p and 2630' at 1080p
- Simultaneous HDMI & VGA output
- Supports analytics, such as line crossing, intrusion, and scene change detection
- 1 x USB 2.0 and 1 x USB 3.0 port
- 8 alarm inputs and 4 alarm outputs
- Self-adaptive Ethernet interface
UPC: 842571109160 In the Box Hikvision Turbo HD Tribrid 8-Channel 5MP DVR with PoC Support & 2TB HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision Turbo HD Tribrid 8-Channel 5MP DVR with PoC Support & 2TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-7208HUI-K2/P Specs | Video Compression | H.265+, H.265, H.264+, H.264 | Analog Video Input | 8 BNC interface (1.0 V p-p, 75 Ohms), supporting coaxitron connections | HD-TVI Input | 5 MP, 4 MP, 3 MP, 1920 x 1080 at 30 fps, 1920 x 1080 at 25 fps, 1280 x 720 at 60 fps, 1280 x 720 at 50 fps, 1280 x 720 at 30 fps, 1280 x 720 at 25 fps | CVBS Input | NTSC/PAL | PoC Camera Input | Supports Hikvision PoC Cameras: Do not unplug or plug the PoC camera if it is powered by an external power supply | IP Video Inputs | 2 Up to 6 MP resolution Supports H.265+, H.265, H.264+, and H.264 IP cameras | Audio Compression | G.711u | Audio Input | 4-channel, RCA 2.0 V p-p, 1 kOhm | CVBS Output | 1-channel, BNC 1.0 V p-p, 75 Ohms
Resolution: NTSC: 704 x 480 PAL: 704 x 576 | HDMI Output | 1 Channel at 30 Hz: 3840 x 2160 (4K UHD) 1 Channel at 60 Hz: 2560 x 1440 (2K), 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | VGA Output | 1 Channel at 60 Hz: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | Encoding Resolutions | 5 MP, 4 MP, 3 MP, 1080p, 720p, WD1, 4CIF, VGA, CIF | Frame Rate | Main Stream: 5 MP at 12 fps, 4 MP at 15 fps, 3 MP at 18 fps, 1080p/720p/WD1/4CIF/VGA/CIF at 30 fps (NTSC) / 25 fps (PAL)
Sub Stream: WD1/4CIF/CIF at 30 fps (NTSC) / 25 fps (PAL) | Video Bit Rate | 32 kb/s to 10 Mb/s | Audio Output | 1 channel, RCA (linear, 1 kOhm) | Audio Bit Rate | 64 kb/s | Dual Stream | Supported | Stream Type | Video, video and audio | Synchronous Playback | 8-channel | | Remote Connections | 128 | Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF | | SATA | 2 SATA interfaces | Capacity | Up to 8 TB capacity for each disk (2 TB preinstalled) | | Two-Way Audio Input | 1-channel, RCA (2.0 V p-p, 1 kOhm using the first audio input) | Network Interface | 1 x RJ45 10/100M self-adaptive Ethernet interface | Serial Interface | RS-485, half-duplex | USB Interface | Front Panel: 1 x USB 2.0 Rear Panel: 1 x USB 3.0 | Alarm Input / Output | 8 inputs, 4 outputs | | Power Supply | 48 VDC | Power Consumption | Without HDD: ≤60 W | Operating Temperature | 14 to 131°F / -10 to 55°C | Operating Humidity | 10 to 90% | Dimensions (W x D x H) | 15 x 12.6 x 1.9" / 380 x 320 x 48 mm | Weight | Without HDD: ≤3.9 lb / 1.78 kg |
