User Manual for Hikvision Turbo PTZ 1080p Indoor Day Night Dome Camera Click to enlarge the picture
Contents of the user manual for the Hikvision Turbo PTZ 1080p Indoor Day
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision Turbo PTZ 1080p Indoor Day contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|

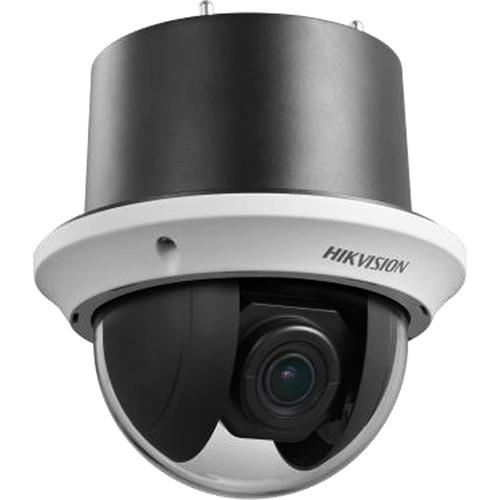

Product description The Turbo PTZ 1080p Indoor Dome Camera from Hikvision captures high-quality images in low-light environment with its black anti-reflective glass. Equipped with 1/3’’ progressive scan CMOS chip, the camera offers WDR and 2MP real-time resolution. Thanks to the 23x optical zoom day/night lens, the camera delivers detailed images even in dark areas. -
- 1/3" Progressive Scan CMOS image sensor
- Up to 1920 x 1080 resolution
- ±0.1° preset accuracy
- Pelco-P/D protocol
- 23x optical zoom
- 3D intelligent positioning function
- Power-off memory function: restore PTZ & Lens status after reboot
- Built-in temperature sensor, with display of internal temperature
- Lightning protection, surge protection, and voltage transient protection
- RS-485 communication diagnosis
- Scheduled PTZ movement
- UTC (Up the Coax) function
- Supports Turbo HD and BNC output
- Auto focus, auto white balance, backlight compensation and auto/manual day & night switch
- Privacy masks programmable
- 3D DNR, digital zoom
- DWDR, EIS function
- Pan & tilt motion
UPC: 813908024050 In the Box Hikvision Turbo PTZ 1080p Indoor Day/Night Dome Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision Turbo PTZ 1080p Indoor Day Night Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2AE4223T Specs | | | Image Sensor | 1/3" Progressive Scan CMOS | | Minimum Illumination | Color: 0.05 lux @ F1.6, AGC ON
B&W: 0.01 lux @ F1.6, AGC ON | | Resolution | 1920 x 1080 | | Focal Length | 4-92mm, 23x | | Digital Zoom | 16x | | Zoom Speed | Approximately 3 sec (optical wide to tele) | | Angle of View | 49 to 2.2° (wide to tele) | | Minimum Working Distance | 0.4 to 40" (10 to 1,000 mm) (wide to tele) | | Aperture Range | F1.6 to F3.7 | | Focus Modes | Auto / Semiautomatic / Manual | | DWDR | Support | | S / N Ratio | ≥ 50 dB | | Shutter Time | 1-1/10,000 sec | | AGC | Auto / Manual | | White Balance | Auto / Manual / ATW / Indoor / Outdoor | | Day & Night | IR Cut Filter | | Privacy Mask Type | 8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen | | Enhancements | 3D DNR, BLC, EIS | | | | Range | Pan: 360° endless
Tilt: 0° to 90° (Auto Flip) | | Speed | Pan Manual Speed: 0.1° to 160°/sec, Pan Preset Speed: 160°/sec
Tilt Manual Speed: 0.1° to 120°/sec, Tilt Preset Speed: 120°/sec | | Number of Presets | 256 | | Patrol | 8 patrols, up to 32 presets per patrol | | Pattern | 4 patterns, with the total recording time not less than 10 minutes | | Other Actions | Preset / Patrol / Pattern / Pan scan / Tilt scan / Panorama scan | | Task | Preset / Patrol / Pattern / Pan scan / Tilt scan / Panorama scan | | RS-485 Communication | Supported | | | | HD Output | 1 turbo HD720p/1080p output, 1.0 Vpp / 75 Ohms, NTSC (or PAL) composite, BNC | | CVBS Output | 1.0 Vpp / 75 Ohms, NTSC (or PAL) composite, BNC | | Alarm Input | 2 | | Alarm Output | 1 | | RS-485 | Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol | | UTC | HIKVISION_C | | | | Menu Language | English | | Power | 24 VAC
Maximum 12 W | | Working Temperature | -22 to 149°F (-30 to 65°C) | | Humidity | 90% or less | | Protection Level | IP66 standard
TVS 4,000 V lightning protection, surge protection and voltage transient protection | | Mounting Options | Long-Arm Wall Mount: DS-1602ZJ
Corner Mount: DS-1602ZJ-Corner
Pole Mount: DS-1602ZJ-pole
Power Box Mount: DS-1602ZJ-box
Swan-Neck Mount: DS-1619ZJ | | Dimensions (Ø x H) | 7.3 x 13" (19 x 33 cm) | | Weight | Approximately 8.8 lb (4.0 kg) | | | | Package Weight | 8.55 lb | | Box Dimensions (LxWxH) | 15.4 x 8.8 x 8.7" |
