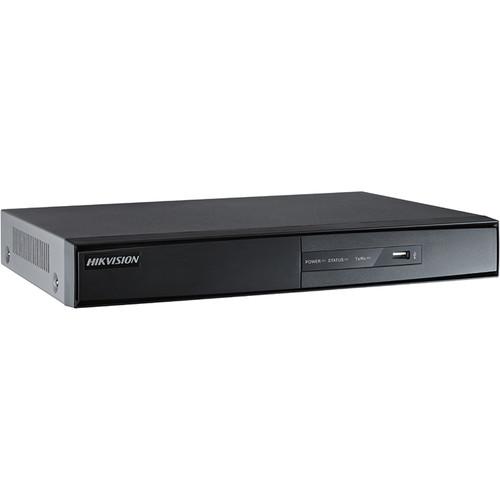

User Manual for Hikvision Turbo Series 16-Channel 1080p HD-TVI DVR with 3TB HDD Click to enlarge the picture
Contents of the user manual for the Hikvision Turbo Series 16-Channel 1080p HD-TVI
- Product category: Digital Video Recorders (DVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Digital Video Recorders (DVRs)
|
User manual for the Hikvision Turbo Series 16-Channel 1080p HD-TVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The Turbo Series 16-Channel 1080p HD-TVI DVR from Hikvision supports up to 16 video inputs. The DVR plays back videos at up to 1080p resolution in real-time and is designed for use with both HD-TVI and analog cameras. The system supports two-way audio for microphone-equipped cameras and a single audio-out. For long-distance transmission of HD images, the recorder supports standard coaxial cable. - H.264 and dual-stream video compression
- Supports both HD-TVI and analog cameras with adaptive access
- Supports real-time recording at resolutions of up to 720p
- HDMI and VGA output at up to 1920 x 1080 resolution
- Long transmission distance over coax cable
- Supports up to 16-channel synchronous playback at 1080p resolution
UPC: 816783019098 In the Box Hikvision Turbo Series 16-Channel 1080p HD-TVI DVR with 3TB HDD Mouse Remote Power Supply Ear Mounts Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision Turbo Series 16-Channel 1080p HD-TVI DVR with 3TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-7216HGHI-SH-3TB Specs | Video Compression | H.264 | | Analog & HD-TVI Video Input | 16 x BNC interface (1 V p-p, 75 Ohms) | | Supported Camera Types | 720p25, 720p30, 720p50, 720p60, 1080p25, 1080p30, CVBS | | Audio Compression | G.711u | | Audio Input | 1 x RCA (2 V p-p, 1 kOhm) | | HDMI/VGA Output | 60 Hz:
1920 x 1080, 1280 x 1024, 1280 × 720, 1024 × 768 | | Encoding Resolution | Main Stream: 1080p (non-real-time), 720p, VGA, 4CIF, CIF
Sub-Stream: WD1 (non-real-time), 4CIF (non-real-time), CIF, QCIF, QVGA | | Frame Rate | Main Stream: 1/16 fps ~ real-time frame rate
Sub-Stream: 1/16 fps ~ real-time frame rate | | Video Bit Rate | 32 kb/s to 6 mb/s | | Audio Output | 1 x RCA (linear, 1 kOhms) | | Audio Bit Rate | 64 kb/s | | Dual Streaming | Yes | | Stream Type | Video, video & audio | | Synchronous Playback | 16 channels | | Playback Resolution | 1080p, 720p, VGA, WD1, 4CIF, CIF, QVGA, QCIF | | Remote Network Connections | 128 | | Network Protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS | | Storage | 2 x SATA interfaces for 2 HDDs (up to 6 TB each); 1 eSATA interface; 3 TB HDD preinstalled | | Network Interface | 1 x 10/100/1000M self-adaptive Ethernet interface | | Serial Interface | RS-232, RS-485, Keyboard | | USB Ports | 2 x USB 2.0 | | Alarm Input / Output | 16 / 4 | | Power Supply | 12 VDC | | Power Consumption | ≤20 W (without hard disks) | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Operating Humidity | 10 to 90% | | Chassis | 1U chassis | | Dimensions | 15.0 x 11.4 x 1.9" (38.0 x 29.0 x 4.8 cm) | | Weight | 4.4 lb (2.0 kg) | | | | Package Weight | 9.1 lb | | Box Dimensions (LxWxH) | 16.9 x 14.6 x 5.3" |
