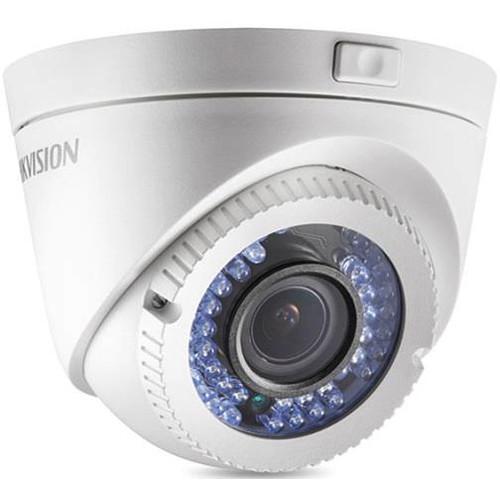

User Manual for Hikvision TurboHD 1080p Analog Motorized Varifocal Turret Camera Click to enlarge the picture
Contents of the user manual for the Hikvision TurboHD 1080p Analog Motorized Varifocal
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision TurboHD 1080p Analog Motorized Varifocal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The TurboHD 1080p Analog Motorized Varifocal Turret Camera from Hikvision features a 2MP CMOS image sensor and 2.8 to 12mm motorized varifocal lens, and produces 1080p resolution video. With an IR range of up to 131’, this camera also works in total darkness (0 lux). - 2MP high-performance CMOS
- Analog HD output, up to 1080p resolution
- 2.8 to 12mm motorized varifocal lens
- OSD menu, 3D-DNR, Smart IR
- IP66-rated weather resistance
- Up the Coax (HIKVISION-C, Pelco C protocol)
UPC: 813908024029 In the Box Hikvision TurboHD 1080p Analog Motorized Varifocal Turret Camera Limited 3-Year Warranty Brochure PDF 755.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision TurboHD 1080p Analog Motorized Varifocal Turret Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE56D5T Specs | | | Image Sensor | 2 MP CMOS Image Sensor | | Signal System | NTSC | | Effective Pixels (H x V) | 1920 x 1080 | | Minimum Illumination | .014 lux @ f/1.4 with AGC on, 0 lux with IR on | | Shutter Time | 1/25 (1/30) to 1/50,000 sec | | Lens | Motorized Varifocal Lens; 2.8 to 12 mm @ f/1.4
Angle of View: 103 to 32.1° | | Lens Mount | Diameter: 14 mm | | Day & Night | ICR | | Angle Adjustment | Pan: 0 to 360°
Tilt: 0 to 75°
Rotation: 0 to 360° | | Synchronization | Internal synchronization | | WDR Mode | 120 dB | | Video Frame Rate | 1080p @ 25 fps
1080p @ 30 fps | | HD Video Output | 1 x Analog HD output | | CVBS Output | 1 x V p-p composite output (75 Ohms/BNC) | | S/N Ratio | >52 dB | | | | Scene | Indoor, Outdoor, Indoor, LOW-LIGHT | | Camera ID | On/Off (15 characters, position programmable) | | AGC | Supported | | Day/Night Mode | Color/B&W/EXT | | White Balance | ATW, AWC-SET, Indoor, Outdoor, Manual | | Privacy Masking | On/Off, maximum 8 zones | | Motion Detection | On/Off, maximum 4 zones | | BLC | Supported | | Flicker Free | On/Off | | Language | English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish, Polish, Russian, Portuguese, Dutch, Turkish, Hebrew, and Arabic | | Functions | HSBLC, Digital noise reduction, Digital zoom (62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM | | | | Operating Conditions | -22 to 140°F (-30 to 60°C)
Humidity 90% or less (non-condensing) | | Power Supply | 12 VDC ±15% | | Power Consumption | Maximum 5 W | | IR Range | 131' (40 m) | | Protection Rating | IP66 | | Communication | Up the coax
Protocol: HIKVISION-C | | Dimensions (Ø x D) | 5.1 x 4" (13 x 10 cm) | | Weight | 14 oz (410 g) | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 6.8 x 6.8 x 6.1" |
