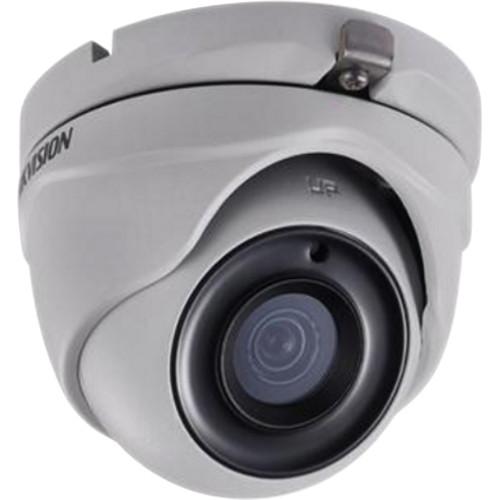

User Manual for Hikvision TurboHD 1080p Analog Outdoor Turret Camera with 3.6mmFixed Lens Click to enlarge the picture
Contents of the user manual for the Hikvision TurboHD 1080p Analog Outdoor Turret
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision TurboHD 1080p Analog Outdoor Turret contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The TurboHD 1080p Analog Outdoor Turret Camera from Hikvision utilizes a 2MP high-performance CMOS sensor and a 3.6mm fixed lens to capture images at a resolution up to 1928 x 1088 at 30 fps. With a built-in IR cut filter this camera can capture clear images in complete darkness with an IR range of 66'. The camera offers a WDR (Wide Dynamic Range) of up to 120 dB for capturing images under varied lighting conditions, including extreme backlight and low light. With the IP66-rated weatherproof housing, this camera is suitable for outdoor applications. -
- 2MP high-performance CMOS
- Analog HD output, up to 1080p resolution
- True Day/Night
- True WDR (Wide Dynamic Range), up to 120 dB
- EXIR technology, up to 66' IR range
- IP66 weatherproof
- Up the coax communication
UPC: 813908026917 In the Box Hikvision TurboHD 1080p Analog Outdoor Turret Camera with 3.6mmFixed Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision TurboHD 1080p Analog Outdoor Turret Camera with 3.6mmFixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE56D7T-ITM-3.6MM Specs | | | Image Sensor | 2 MP CMOS image sensor | | Signal System | NTSC | | Effective Pixels | 1920 x 1080 | | Minimum Illumination | 0.01 lux at f/1.2, AGC on
0 lux with IR on | | Shutter Time | 1/30 to 1/50,000 secs | | Lens | 3.6mm | | Day & Night | ICR | | Angle Adjustment | Pan: 0 to 360°
Tilt: 0 to 75°
Rotate: 0 to 360° | | Synchronization | Internal synchronization | | Wide Dynamic Range | 120 dB | | Video Frame Rate | 1920 x 1080 at 30 fps | | HD Video Output | 1 x analog HD output | | S/N Ratio | >62 dB | | | | AGC | Supported | | Software Day / Night | Color/B&W/Smart IR | | BLC | Supported | | | | Operating Conditions | -40 to 140°F (-40 to 284°C) | | Humidity | 90% or less (non-condensing) | | Power Supply | 12 VDC ±10% | | Power Consumption | Maximum 5 W | | Protection Level | IP66 | | IR Range | 65.6' (20 m) | | Communication | Up the coax
Protocol: TVI output | | Dimensions | 3.58 x 3.25 x 2.69" (91 x 82.6 x 68.3 mm) | | Weight | 0.77 lb (0.34 kg) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 4.5 x 4.4 x 3.3" |
