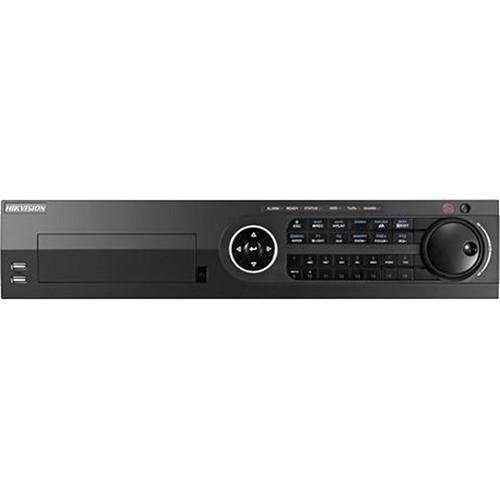

Product description The TurboHD 16-Channel 3MP DVR with 48TB HDD from Hikvision enables you to record from and manage up to 16 cameras. This DVR offers full channel recording at up to 3MP resolution. It comes with a 48TB HDD preinstalled. Storage is expandable to eight SATA HDDs each with a maximum 6TB capacity, for a total of 48TB. A BNC interface supports HD-TVI and analog cameras, and a self-adaptive Ethernet interface supports IP cameras up to 8MP. H.264+ and H.264 video compression keep file sizes manageable while maintaining quality.
An RCA connector offers two-way audio communication. In addition, there are two HDMI and VGA connections for video output with support for dual streaming to maximize bandwidth efficiency. The second HDMI connection can output up to 4K UHD resolution video. - Full channel recording at up to 3MP resolution
- 16-channel synchronous playback support
- Supports IP cameras up to 8MP
- Hot-swappable HDD support for RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10
- Supports analytics, such as line crossing, intrusion, scene change detection, people counting, heat map functionality, and Video Quality Diagnostics (VQD)
- 2 x USB 2.0 and 1 x USB 3.0 port
- 16 alarm inputs and 4 alarm outputs
- Self-adaptive Ethernet interface
UPC: 842571106909 In the Box Hikvision TurboHD 16-Channel 3MP DVR with 48TB HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision TurboHD 16-Channel 3MP DVR with 48TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-9016HUHI-F8/N Specs | | | Video Compression | H.264+, H.264 | | Analog Video Inputs | 16
BNC interface (1.0 V p-p, 75 Ohms), supporting UTC (Up-the-Coax) connection | | HD-TVI Input | 3 MP, 1920 x 1080 at 30 fps, 1920 x 1080 at 25 fps, 1280 x 720 at 60 fps, 1280 x 720 at 50 fps, 1280 x 720 at 30 fps, 1280 x 720 at 25 fps | | AHD Input | 1920 x 1080 at 30 fps, 1920 x 1080 at 25 fps, 1280 x 720 at 30 fps, 1280 x 720 at 25 fps | | CVBS Input | Supported | | IP Video Inputs | 18 (up to 32)
Up to 8 MP resolution
Supports H.265, H.264+, H.264 network cameras | | Network Bandwidth | 320 Mb/s | | Audio Compression | G.711u | | Audio Input | 16-channel, RCA 2.0 V p-p, 1 kOhm | | CVBS Output | 1-channel, BNC 1.0 V p-p, 75 Ohms
Resolution:
NTSC: 704 x 480
PAL: 704 x 576 | | HDMI/VGA Output | HDMI1/VGA Output:
1 Channel at 60 Hz: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
HDMI2/VGA Output:
1 Channel at 30 Hz: 3840 x 2160 (4K UHD)
1 Channel at 60 Hz: 2560 x 1440 (2K), 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Encoding Resolutions | 3 MP, 1080p, 720p, WD1, 4CIF, VGA, CIF | | Frame Rate | Main Stream: 3 MP at 15 fps, 1080p/720p/WD1/4CIF/VGA/CIF at 30 fps (NTSC) / 25 fps (PAL)
Sub-Stream: WD1/4CIF at 12 fps, CIF/QVGA/QCIF at 30 fps (NTSC) / 25 fps (PAL) | | Video Bit Rate | 32 kb/s to 10 Mb/s | | Audio Output | 2 channel CVBS and VGA, RCA (linear, 1 kOhm) | | Audio Bit Rate | 64 kb/s | | Dual Stream | Supported | | Stream Type | Video, video & audio | | Synchronous Playback | 16-channel | | | | Remote Connections | 128 | | Network Protocols | TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, SNMP | | | | SATA | 8 SATA interfaces | | eSATA | Supported | | Capacity | Up to 6 TB capacity for each disk (48 TB HDD preinstalled) | | | | Array Type | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 | | | | Two-Way Audio Input | 1-channel RCA (2.0 V p-p, 1 kOhm using the first audio input) | | Network Interface | 2 x RJ45 10/100/1000M self-adaptive Ethernet interface | | Serial Interface | RS-485 (half-duplex), RS-485 (full-duplex), keyboard | | Alarm Input / Output | 16 inputs, 4 outputs | | USB Interface | Front Panel: 2 x USB 2.0
Rear Panel: 1 x USB 3.0 | | | | Power Supply | 100 to 240 VAC | | Power Consumption | Without HDD: ≤65 W | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10 to 90%, non-condensing | | Dimensions (W x D x H) | 17.5 x 18.5 x 3.5" / 445 x 470 x 90 mm | | Weight | ≤17.6 lb / 8 kg |
