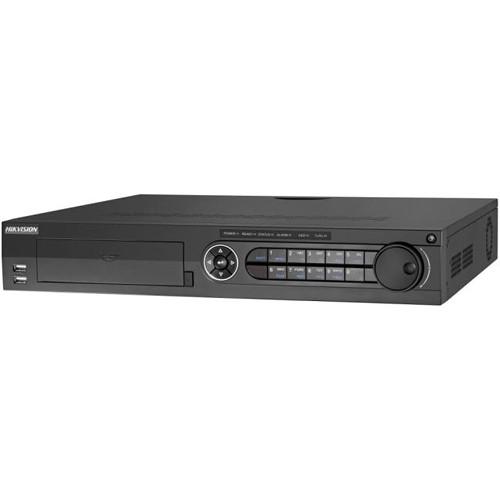

User Manual for Hikvision TurboHD 32-Channel 1080p DVR Click to enlarge the picture
Contents of the user manual for the Hikvision TurboHD 32-Channel 1080p DVR
- Product category: Digital Video Recorders (DVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Digital Video Recorders (DVRs)
|
User manual for the Hikvision TurboHD 32-Channel 1080p DVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Configure, record, and play back footage from up to 32 cameras with the TurboHD 32-Channel 1080p DVR from Hikvision. The NVR features an Ethernet interface along with a BNC interface for supporting IP cameras as well as HD-TVI over analog cameras. It is compatible with cameras that use 1080p, 720p, or analog resolutions, and it offers two RCA inputs and one RCA output for 2-way audio capabilities. Additionally, there are HDMI and VGA connections for video output in high definition, with support for dual streaming to maximize bandwidth. H.264 recordings can be stored using the four SATA interface HDDs, each with a 14TB capacity pre-installed. Furthermore, eSATA and USB interfaces provide external storage options and allow you to export recorded data. There are also RS-232, RS-485, and keyboard interfaces, as well as 16 alarm inputs and four alarm outputs. This DVR is 19" rack-mounted with a 1.5U chassis for easily storing in a private or secure location. - Supports IP and HD-TVI cameras
- HDMI and VGA interfaces for up to 1920 x 1080p video output resolution
- Supports multiple configurations, like redundant recording and holiday recording
- Up to 32-channel synchronous playback and reverse playback
- Instant playback for assigned cameras during multi-channel live view mode
- Allows you to lock recorded files
- Supports HDD quota and group management
- Different capacities can be assigned to different cameras under quota mode
- Supports manual video quality diagnostics
- 16 inputs and 4 outputs for VCA alarm (line crossing detection and intrusion detection)
- Supports customization of tags, searching, and playback by tags
- Provides four SATA interfaces and one eSATA interface
- One self-adaptive 10/100/1000M network interface
- Starts recording with the click of a single button
- Supports access by EZVIZ Cloud P2P
- Supports Hikvision DDNS (Dynamic Domain Name System)
UPC: 813908023350 In the Box Hikvision TurboHD 32-Channel 1080p DVR (14TB) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision TurboHD 32-Channel 1080p DVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-7332HGHI Specs | | | Video Compression | H.264 | | Channels | 32
BNC interface (1 V p-p, 75 Ohms) | | Supported Camera Types | 720p/25, 720p/30, 720p/50, 720p/60, 1080p/30, CVBS | | IP Video Inputs | 8-channel (up to 32-channel)
Up to 2 MP resolution | | Audio Compression | G.711μ | | Audio Input | 4-channel, RCA (2 V p-p, 1 kOhm) | | Two-Way Audio Input | 1-channel, RCA (2 V p-p, 1 kOhm) | | | | HDMI/VGA Output | 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz | | Encoding Resolution | Main Stream: 1080P (non-real-time) / 720p / WD1 / VGA / 4CIF / CIF
Sub-Stream: WD1 (non-real-time) / 4CIF (non-real-time) / CIF / QCIF / QVGA | | Frame Rate | Main Stream: 30 fps (real-time frame rate)
Sub-Stream: 30 fps (real-time frame rate) | | Video Bit Rate | 32 kbps to 6 Mbps | | Audio | 2-channel, RCA (linear, 1 kOhm) | | Audio Bit Rate | 64 kbps | | Streams | Dual streams | | Stream Type | Video, video & audio | | Synchronous Playback | 16-channel | | Playback Resolution | 1080p / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF | | | | Remote Connection | 128 | | Network Protocols | TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS | | | | Type | 4 x SATA interfaces for 4 HDDs; 1 x eSATA interface | | Capacity | Installed: 14 TB | | | | Network | 1 x 10/100/1000M self-adaptive Ethernet interface | | Serial | RS-232, RS-485, keyboard | | USB | 3 x USB 2.0 | | Alarm | 16 x input
4 x output | | | | Power Supply | 100 to 240 VAC, 47 to 63 Hz | | Consumption | ≤65 W without hard disks | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Operating Humidity | 10 to 90% | | Chassis | 19" rack-mounted 1.5U chassis | | Dimensions | 17.5 × 15.3 × 2.7" (44.5 × 39 × 7 cm) | | Weight | Approximately 11 lb (5 kg) without hard disks |
