User Manual for Hikvision TurboHD 4-Channel 5MP Tribrid DVR Click to enlarge the picture
Contents of the user manual for the Hikvision TurboHD 4-Channel 5MP Tribrid DVR
- Product category: Digital Video Recorders (DVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Digital Video Recorders (DVRs)
 |
User manual for the Hikvision TurboHD 4-Channel 5MP Tribrid DVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|

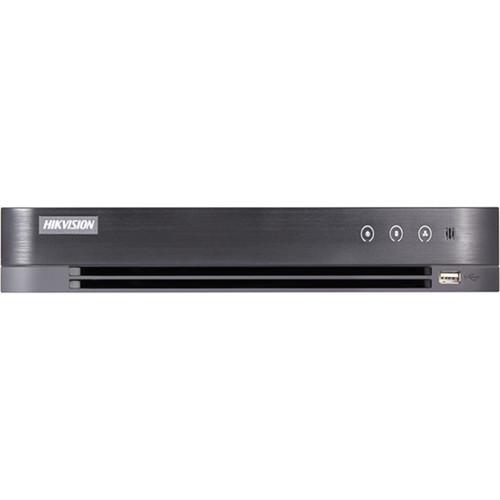

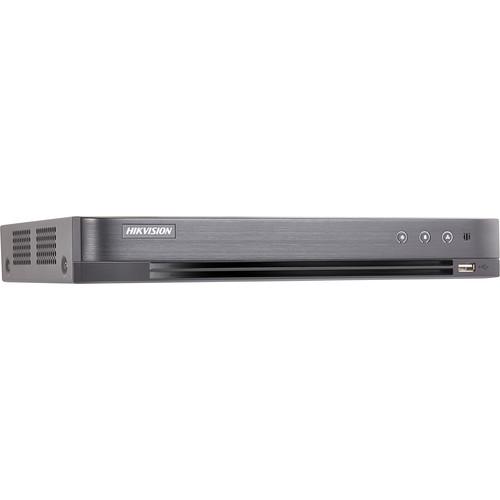

Product description Stream and record from up to four video devices with the TurboHD 4-Channel 5MP Tribrid DVR from Hikvision at resolutions of up to 5MP. Equipped with one SATA port, this DVR supports up to 8TB of internal storage (HDDs available separately). External storage options include network servers and USB storage devices. Network bandwidth use is optimized while ensuring high-quality recording and playback using dual-streaming H.265+, H.265, H.264+, or H.264 compression.
The DVR enables simultaneous live view and playback of up to four channels via its CVBS port at resolutions up to 704 x 480 and its HDMI and VGA ports at resolutions up to 3840 x 2160. Four channels of video can be recorded simultaneously at a bit rate of 32 kb/s to 10 Mb/s. The DVR is equipped with BNC video and RCA audio connectors, and half-duplex RS-485 serial port for remote control. - Supports analytics including line crossing, intrusion, and scene change detection
- Supports Power over Coax (PoC) technology
UPC: 842571108620 In the Box Hikvision TurboHD 4-Channel 5MP Tribrid DVR (No HDD) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision TurboHD 4-Channel 5MP Tribrid DVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-7204HUI-K1/P Specs | | | Video Compression | H.265+, H.265, H.264+, H.264 | | Analog & HD-TVI Video Input | 4-channel BNC interface (1.0 V p-p, 75 Ohms)
Supports coaxitron connection
5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 | | CVBS Input | PAL, NTSC | | IP Video Inputs | 2 channels at up to 6 MP resolution
Supports H.265+, H.265, H.264+, H.264 IP cameras | | Audio Compression | G.711u | | Audio Input | 1 x RCA port, 4 channels (2.0 V p-p, 1 kOhm) | | CVBS Output | 1 x BNC port, 1 channel (1.0 V p-p, 75 Ohms)
Resolution: 704 x 480 NTSC, 704 x 576 PAL | | HDMI/VGA Output | 1 x port, 1 channel
Resolution: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 at 60 Hz | | Encoding Resolutions | 5 MP, 4 MP, 3 MP, 1080p, 720p, WD1, 4CIF, VGA, CIF | | Frame Rate | Main Stream: 5 MP at 12 fps, 4 MP at 15 fps, 3 MP at 18 fps; 1080p, 720p, WD1, 4CIF, VGA, CIF at 25 fps (PAL) / 30 fps (NTSC)
Sub-Stream: WD1, 4CIF, CIF at 25 fps (PAL) / 30 fps (NTSC) | | Video Bit Rate | 32 kb/s to 10 Mb/s | | Audio Output | 1 x RCA port, 1 channel (linear, 1 kOhm) | | Audio Bit Rate | 64 Kb/s | | Dual Stream | Supported | | Stream Type | Video, video and audio | | Synchronous Playback | 4 channels | | | | Remote Connections | 128 | | Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF | | | | SATA | 1 x SATA interface | | Capacity | Up to 8 TB capacity for each disk
HDDs available separately | | | | Two-Way Audio Input | 1 x RCA port, 1 channel (2.0 V p-p, 1 kOhm) using the first audio input | | Network Interface | 1 x RJ45 10M/100M self-adaptive Ethernet interface | | Serial Interface | 1 x RS-485 (half-duplex) | | USB Interface | 2 x USB 2.0 ports | | Alarm | 4 x inputs
1 x output | | | | Power Supply | 48 VDC | | Consumption | Up to 40 W (without HDDs) | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Operating Humidity | 10 to 90% | | Dimensions | 12.4 x 9.5 x 1.8" (31.5 x 24.2 x 4.5 cm) | | Weight | 2.6 lb (1.2 kg) max. |
