Hikvision TurboHD 4-Channel 5MP Tribrid DVR

Search your instruction manual in PDF to download

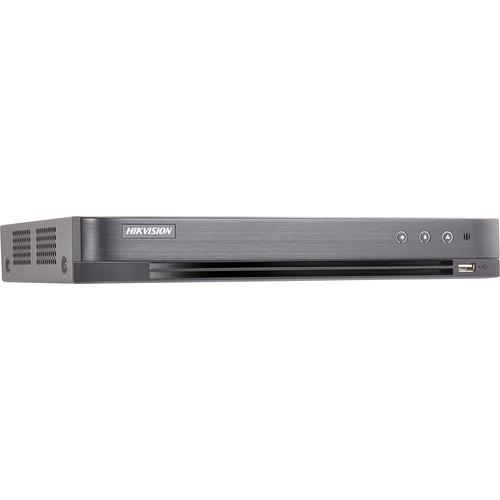

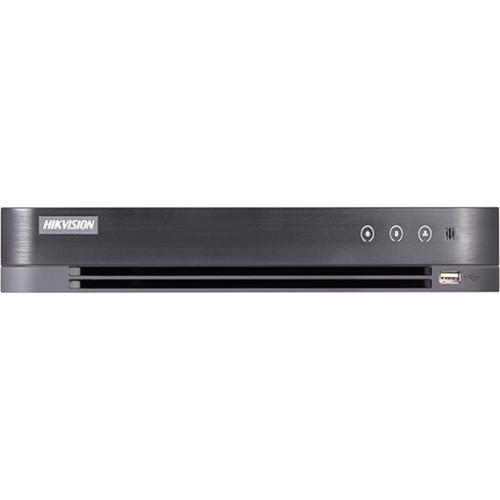

User Manual for Hikvision TurboHD 4-Channel 5MP Tribrid DVR with 8TB HDD

Click to enlarge the picture
Hikvision TurboHD 4-Channel 5MP Tribrid DVR with 8TB HDD Contents of the user manual for the Hikvision TurboHD 4-Channel 5MP Tribrid DVR
  • Product category: Digital Video Recorders (DVRs) Hikvision
  • Brand: Hikvision
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Hikvision Digital Video Recorders (DVRs)

Hikvision TurboHD 4-Channel 5MP Tribrid DVR with 8TB HDD Hikvision TurboHD 4-Channel 5MP Tribrid DVR with 8TB HDD
User manual for the Hikvision TurboHD 4-Channel 5MP Tribrid DVR contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Hikvision product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!



Product description

Stream and record from up to four video devices with the TurboHD 4-Channel 5MP Tribrid DVR from Hikvision at resolutions of up to 5MP. Equipped with one SATA port, this DVR supports up to 8TB of internal storage (8TB preinstalled). External storage options include network servers and USB storage devices. Network bandwidth use is optimized while ensuring high-quality recording and playback using dual-streaming H.265+, H.265, H.264+, or H.264 compression.

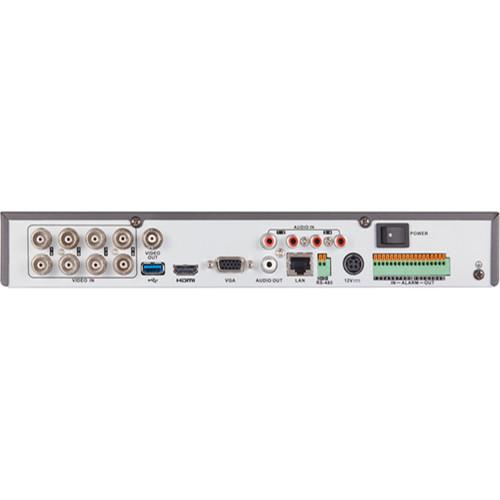

The DVR enables simultaneous live view and playback of up to four channels via its CVBS port at resolutions up to 704 x 480 and its HDMI and VGA ports at resolutions up to 3840 x 2160. Four channels of video can be recorded simultaneously at a bit rate of 32 kb/s to 10 Mb/s. The DVR is equipped with BNC video and RCA audio connectors, and half-duplex RS-485 serial port for remote control.
  • Supports analytics including line crossing, intrusion, and scene change detection
  • Supports Power over Coax (PoC) technology
UPC: 842571109146 In the Box Hikvision TurboHD 4-Channel 5MP Tribrid DVR with 8TB HDD
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Hikvision TurboHD 4-Channel 5MP Tribrid DVR with 8TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Hikvision DS-7204HUI-K1/P Specs

    Video Compression H.265+, H.265, H.264+, H.264
    Analog & HD-TVI Video Input 4-channel BNC interface (1.0 V p-p, 75 Ohms)
    Supports coaxitron connection
    5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
    CVBS Input PAL, NTSC
    IP Video Inputs 2 channels at up to 6 MP resolution
    Supports H.265+, H.265, H.264+, H.264 IP cameras
    Audio Compression G.711u
    Audio Input 1 x RCA port, 4 channels (2.0 V p-p, 1 kOhm)
    CVBS Output 1 x BNC port, 1 channel (1.0 V p-p, 75 Ohms)
    Resolution: 704 x 480 NTSC, 704 x 576 PAL
    HDMI/VGA Output 1 x port, 1 channel
    Resolution: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 at 60 Hz
    Encoding Resolutions 5 MP, 4 MP, 3 MP, 1080p, 720p, WD1, 4CIF, VGA, CIF
    Frame Rate Main Stream: 5 MP at 12 fps, 4 MP at 15 fps, 3 MP at 18 fps; 1080p, 720p, WD1, 4CIF, VGA, CIF at 25 fps (PAL) / 30 fps (NTSC)
    Sub-Stream: WD1, 4CIF, CIF at 25 fps (PAL) / 30 fps (NTSC)
    Video Bit Rate 32 kb/s to 10 Mb/s
    Audio Output 1 x RCA port, 1 channel (linear, 1 kOhm)
    Audio Bit Rate 64 Kb/s
    Dual Stream Supported
    Stream Type Video, video and audio
    Synchronous Playback 4 channels
    Remote Connections 128
    Network Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
    SATA 1 x SATA interface
    Capacity Up to 8 TB capacity for each disk
    8 TB preinstalled
    Two-Way Audio Input 1 x RCA port, 1 channel (2.0 V p-p, 1 kOhm) using the first audio input
    Network Interface 1 x RJ45 10M/100M self-adaptive Ethernet interface
    Serial Interface 1 x RS-485 (half-duplex)
    USB Interface 2 x USB 2.0 ports
    Alarm 4 x inputs
    1 x output
    Power Supply 48 VDC
    Consumption Up to 40 W (without HDDs)
    Operating Temperature 14 to 131°F (-10 to 55°C)
    Operating Humidity 10 to 90%
    Dimensions 12.4 x 9.5 x 1.8" (31.5 x 24.2 x 4.5 cm)
    Weight 2.6 lb (1.2 kg) max.
