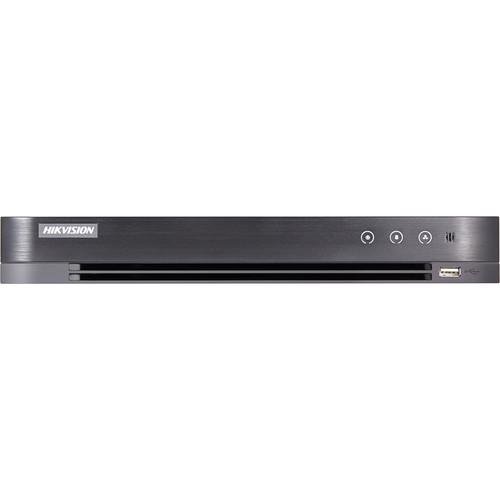

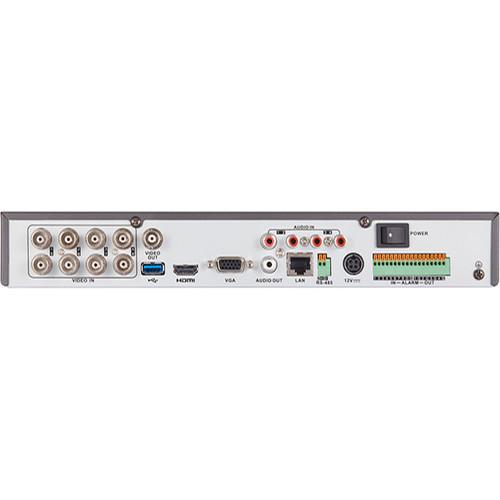

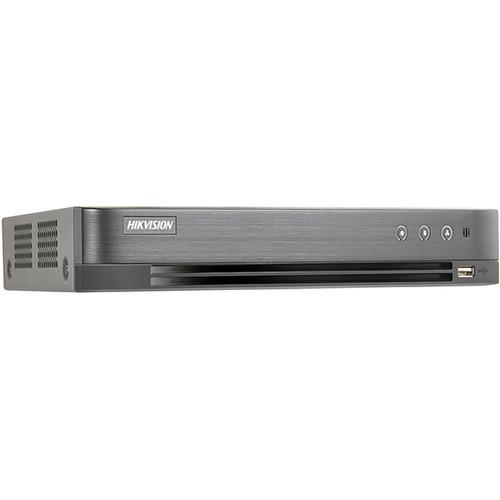

User Manual for Hikvision TurboHD 4-Channel HD-TVI DVR Click to enlarge the picture
Contents of the user manual for the Hikvision TurboHD 4-Channel HD-TVI DVR
- Product category: Digital Video Recorders (DVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Digital Video Recorders (DVRs)
 |
User manual for the Hikvision TurboHD 4-Channel HD-TVI DVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Record from up to four HD-TVI or analog video devices with the TurboHD 4-Channel HD-TVI DVR from Hikvision at resolutions of up to 1080p at 30 fps and stream at up to 15 fps. Equipped with one SATA port, this DVR supports up to 8TB of internal storage (HDDs available separately). External storage options include network servers and USB storage devices. Network bandwidth use is optimized while ensuring high-quality recording and playback using dual-streaming H.265+, H.265, H.264+, or H.264 compression.
The DVR enables simultaneous live viewing and playback of up to four channels via its BNC port at resolutions up to 704 x 480 and its HDMI and VGA ports at resolutions up to 1920 x 1080. Four channels of video can be streamed at a bit rate of 32 kb/s to 10 Mb/s. The DVR is equipped with BNC video and RCA audio connectors, and a half-duplex RS-485 serial port for remote control. - Supports analytics including line crossing, intrusion, and scene change detection
UPC: 842571105025 In the Box Hikvision TurboHD 4-Channel HD-TVI DVR (No HDD) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision TurboHD 4-Channel HD-TVI DVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-7204HQI-K1 Specs | | | Video Compression | H.265+, H.265, H.264+, H.264 | | Analog & HD-TVI Video Input | 4-channel BNC interface (1.0 V p-p, 75 Ohms)
Supports Hikvision-C UTC protocol
3 MP (available only on channel 1 and 2), 1080 at 30 fps, 720p at 60 fps | | CVBS Input | PAL, NTSC | | IP Video Inputs | 1 channel at up to 4 MP resolution
Supports H.265+, H.265, H.264+, H.264 IP cameras | | Audio Compression | G.711u | | Audio Input | 1 x RCA port, 1 channel (2.0 V p-p, 1 kOhm) | | CVBS Output | 1 x BNC port, 1 channel (1.0 V p-p, 75 Ohms)
Resolution: 704 x 480 NTSC, 704 x 576 PAL | | HDMI/VGA Output | 1 x port, 1 channel
Resolution: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 at 60 Hz | | Encoding Resolutions | 1080p Lite Mode Not Enabled: 3 MP, 1080p, 720p, VGA, WD1, 4CIF, CIF
1080p Lite Mode Enabled: 3 MP, 1080p lite, 720p lite, VGA, WD1, 4CIF, CIF | | Frame Rate | Main Stream:
1080p Lite Mode Not Enabled:
3 MP Stream Access: 3 MP, 1080p, 720p, VGA, WD1, 4CIF, CIF at 15 fps
1080p Stream Access: 1080p, 720p at 15 fps; VGA, WD1, 4CIF, CIF at 25 fps (PAL) / 30 fps (NTSC)
720p Stream Access: 720p, VGA, WD1, 4CIF, CIF at 25 fps (PAL) / 30 fps (NTSC)
1080p Lite Mode Enabled: 3 MP at 15 fps; 1080p lite, 720p lite, VGA, WD1, 4CIF, CIF at 25 fps (PAL) / 30 fps (NTSC)
Sub-Stream: WD1, 4CIF, CIF at 25 fps (PAL) / 30 fps (NTSC) | | Video Bit Rate | 32 kb/s to 10 Mb/s | | Audio Output | 1 x RCA port, 1 channel (linear, 1 kOhm) | | Audio Bit Rate | 64 kb/s | | Dual Stream | Supported | | Stream Type | Video and audio | | Synchronous Playback | 4 channels | | | | Remote Connections | 128 | | Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF | | | | SATA | 1 x SATA interface | | Capacity | Up to 8 TB
HDDs available separately | | | | Two-Way Audio Input | 1 x RCA port, 1 channel (2.0 V p-p, 1 kOhm) using the first audio input | | Network Interface | 1 x RJ45 10M/100M self-adaptive Ethernet interface | | Serial Interface | 1 x RS-485 (half-duplex) | | USB Interface | 2 x USB 2.0 ports | | | | Transmission Distance | 1080p: Up to 2630' / 800 m
720p HD-TVI: 3940' / 1200 m | | Power Supply | 12 VDC | | Consumption | Up to 40 W (without HDDs) | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10 to 90% | | Dimensions | 12.4 x 9.5 x 1.8" / 31.5 x 24.2 x 4.5 cm | | Weight | 2.6 lb / 1.2 kg, without HDDs | | | | Package Weight | 4.185 lb | | Box Dimensions (LxWxH) | 19.2 x 16.9 x 3.6" |
