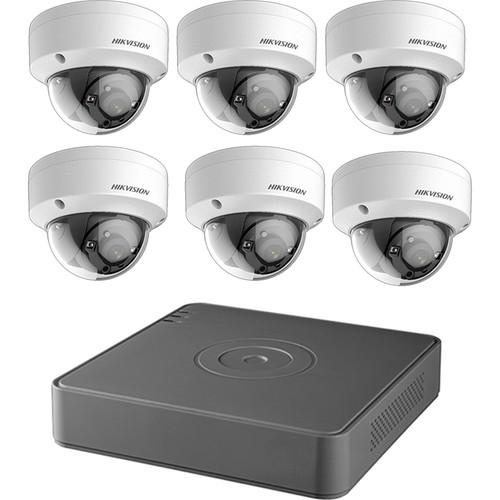

User Manual for Hikvision TurboHD 8-Channel 1080p DVR with 2TB HDD and 6 1080p Outdoor Dome Cameras Kit Click to enlarge the picture
Contents of the user manual for the Hikvision TurboHD 8-Channel 1080p DVR with
- Product category: Surveillance Systems Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Surveillance Systems
|
User manual for the Hikvision TurboHD 8-Channel 1080p DVR with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Monitor up to six outdoor areas with the TurboHD 8-Channel 1080p DVR with 2TB HDD and 6 1080p Outdoor Dome Cameras Kit from Hikvision. This kit comes with a 1080p DVR and six 1080p dome cameras to help keep your home or business secure. The DVR comes with a 2TB HDD preinstalled to store video from all six cameras. Connect the DVR to the Internet via its Ethernet port and download the free iVMS-4500 app for iOS and Android to access a live feed on the go.
Each of the six dome cameras can capture 1080p resolution video with its 2.8mm lens and wide-angle 103° field of view. The cameras can monitor during the day and at night thanks to IR LEDs with a night vision range of up to 66'. Housed in an IP66- and IK10-rated enclosure, the included cameras are protected against dust, water, and impact, making them suitable for use outdoors and in high-risk environments. - 8-channel DVR with 2TB HDD
- Six 1080p IP66- and IK10-rated dome cameras included
- Night vision range up to 66' in complete darkness
- Adjustable motion detection to select specific areas of interest
- Remote access via iVMS-4500 app for iOS and Android
UPC: 842571101157 In the Box Hikvision TurboHD 8-Channel 1080p DVR with 2TB HDD and 6 1080p Outdoor Dome Cameras Kit 8-Channel DVR with 2TB HDD 6 x 1080p Outdoor Dome Cameras Mouse Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision TurboHD 8-Channel 1080p DVR with 2TB HDD and 6 1080p Outdoor Dome Cameras Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision T7108Q2TB Specs | | | Video Inputs | 8 x BNC, 1.0 V p-p, 75 Ohms
HD-TVI: 1080p at 25/30 Hz, 720p at 25/30/50/60 Hz
CVBS: Supported | | Video Compression | H.264 | | Audio Compression | G.711u | | Audio Input | 1-channel, RCA (2.0 V p-p, 1 kOhm) | | Video Outputs | HDMI and VGA: at 60 Hz
1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Encoding Resolutions | 1080p (not real-time), 720p, VGA, WD1, 4CIF, CIF | | Frame Rates | Main Stream: 1/16-30 fps
Sub Stream: WD1, 4CIF at 12 fps, CIF, QVGA, QCIF at 1/16-30 fps | | Video Bit Rate | 32 kbps to 6 Mbps | | Audio Output | 1-channel, RCA (linear, 1 kOhm) | | Audio Bit Rate | 64 kbps | | Dual Stream | Supported | | Stream Type | Video, video and audio | | Synchronous Playback | 8 channels | | Remote Connections | 128 | | Network Protocols | TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS, ONVIF | | SATA | 1 x SATA | | Storage Capacity | 2 TB pre-installed | | Network Interface | RJ45 10/100 Mbps self-adaptive Ethernet | | USB Ports | 2 x USB 2.0 | | Power Supply | 12 VDC | | Power Consumption | ≤12 W | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Operating Humidity | 10 to 90% | | Dimensions | 7.9 x 7.9 x 1.8" (200 x 200 x 45 mm) | | Weight | ≤1.8 lb (0.8 kg) | | | | Image Sensor | 2 MP progressive scan CMOS sensor | | Signal System | NTSC/PAL | | Effective Pixels | 1928 x 1088 | | Minimum Illumination | 0.034 lux at f/2.0 (AGC on)
0 lux with EXIR LEDs on | | Shutter Time | 1/25 (1/30) to 1/50,000 sec | | Lens | 2.8mm | | Field of View | 103° | | Lens Mount | M12 | | Day/Night | ICR | | Angle Adjustment | Pan: 0 to 340°
Tilt: 0 to 75°
Rotation: 0 to 355° | | Frame Rate | 12 fps with DVR | | Video Output | BNC for analog HD output over coax | | S/N Ratio | >62 dB | | Image Enhancement | AGC, day/night mode (color, B&W, smart), white balance (auto, manual), BLC, WDR, DNR, mirror, Smart IR | | OSD | UTC | | Communication | UTC protocol: Hikvision-C (TVI output), supports UTC OSD | | IR LED Range | Up to 66' (20 m) | | Operating Temperature | -40 to 140°F (-40 to 60°C) | | Operating Humidity | <90%, non-condensing | | Power Supply | 12 VDC ±15% | | Power Consumption | 5 W maximum | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions | 4.3 x 3.25" (111 x 82.5 mm) | | Weight | 0.77 (0.35 kg) | | | | Package Weight | 16.9 lb | | Box Dimensions (LxWxH) | 19.5 x 10.6 x 9.6" |
