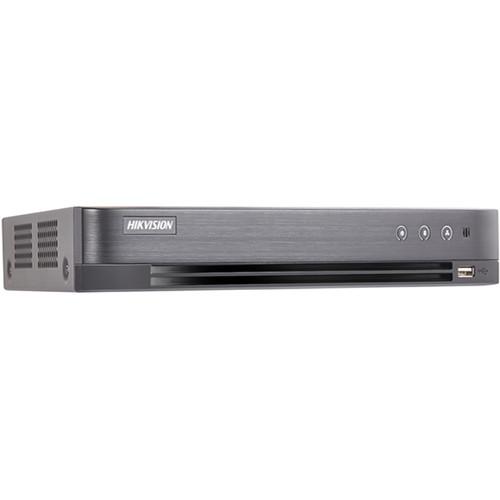

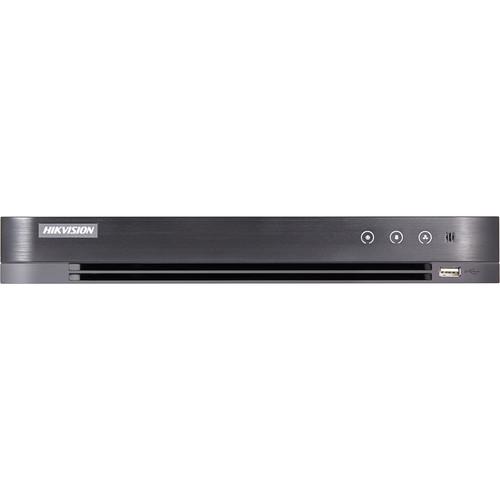

Product description Record from up to eight HD-TVI or analog video devices with the TurboHD 8-Channel HD-TVI DVR from Hikvision at resolutions of up to 1080p at 30 fps and stream at up to 15 fps. Equipped with two SATA ports, each supporting a capacity of up to 8TB, this DVR supports up to 16TB of internal storage (4TB preinstalled). External storage options include network servers and USB storage devices. Network bandwidth use is optimized while ensuring high-quality recording and playback using dual-streaming H.265+, H.265, H.264+, or H.264 compression.

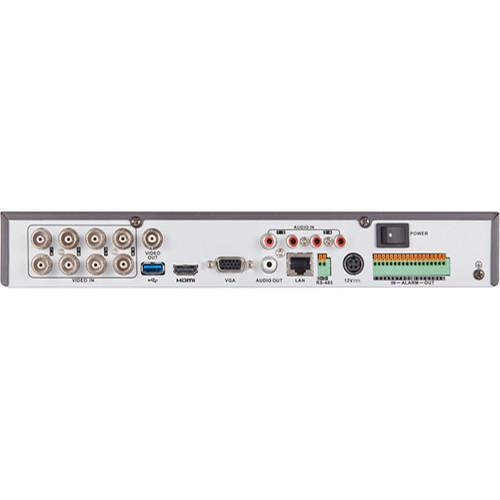

This digital video recorder supports power over coaxial (PoC) cameras, allowing you to supply power and receive video over a single cable. The DVR enables simultaneous live viewing and playback of up to eight channels via its CVBS port at resolutions up to 704 x 576 and its HDMI and VGA ports at resolutions up to 1920 x 1080. Eight channels of video can be viewing streamed at a bit rate of 32 kb/s to 10 Mb/s. The DVR is equipped with BNC video and RCA audio connectors, and a half-duplex RS-485 serial port for remote control. - Supports analytics including line crossing, intrusion, and scene change detection
UPC: 842571108774 In the Box Hikvision TurboHD 8-Channel HD-TVI DVR with 4TB HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision TurboHD 8-Channel HD-TVI DVR with 4TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-7208HQI-K2/P Specs | | | Video Compression | H.265+, H.265, H.264+, H.264 | | Analog & HD-TVI Video Input | 8-channel BNC interface (1.0 V p-p, 75 Ohms)
Supports Hikvision-C UTC protocol
3 MP (available only on channel 1 and 2), 1080 at 30 fps, 720p at 60 fps | | CVBS Input | PAL, NTSC | | IP Video Inputs | 2 channels at up to 4 MP resolution
Supports H.265+, H.265, H.264+, H.264 IP cameras | | Audio Compression | G.711u | | Audio Input | 1 x RCA port, 1 channel (2.0 V p-p, 1 kOhm) | | CVBS Output | 1 x BNC port, 1 channel (1.0 V p-p, 75 Ohms)
Resolution: 704 x 480 NTSC, 704 x 576 PAL | | HDMI/VGA Output | 1 x port, 1 channel
Resolution: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 at 60 Hz | | Encoding Resolutions | 1080p Lite Mode Not Enabled: 3 MP, 1080p, 720p, VGA, WD1, 4CIF, CIF
1080p Lite Mode Enabled: 3 MP, 1080p lite, 720p lite, VGA, WD1, 4CIF, CIF | | Frame Rate | Main Stream:
1080p Lite Mode Not Enabled:
3 MP Stream Access: 3 MP, 1080p, 720p, VGA, WD1, 4CIF, CIF at 15 fps
1080p Stream Access: 1080p, 720p at 15 fps; VGA, WD1, 4CIF, CIF at 25 fps (PAL) / 30 fps (NTSC)
720p Stream Access: 720p, VGA, WD1, 4CIF, CIF at 25 fps (PAL) / 30 fps (NTSC)
1080p Lite Mode Enabled: 3 MP at 15 fps; 1080p lite, 720p lite, VGA, WD1, 4CIF, CIF at 25 fps (PAL) / 30 fps (NTSC)
Sub-Stream: WD1, 4CIF, CIF at 25 fps (PAL) / 30 fps (NTSC) | | Video Bit Rate | 32 kb/s to 10 Mb/s | | Audio Output | 1 x RCA port, 1 channel (linear, 1 kOhm) | | Audio Bit Rate | 64 kb/s | | Dual Stream | Supported | | Stream Type | Video and audio | | Synchronous Playback | 8 channels | | | | Remote Connections | 128 | | Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF | | | | SATA | 2 x SATA interface | | Capacity | Up to 8 TB capacity for each disk
4 TB preinstalled | | | | Two-Way Audio Input | 1 x RCA port, 1 channel (2.0 V p-p, 1 kOhm) using the first audio input | | Network Interface | 1 x RJ45 10M/100M self-adaptive Ethernet interface | | Serial Interface | 1 x RS-485 (half-duplex) | | USB Interface | 2 x USB 2.0 ports | | | | Transmission Distance | 1080p: Up to 2,630' / 800 m
720p HD-TVI: 3,940' / 1,200 m | | Power Supply | 48 VDC | | Consumption | Up to 60 W (without HDDs) | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10 to 90% | | Dimensions | 15.0 x 12.6 x 1.9" / 38.0 x 32.0 x 4.8 cm | | Weight | 3.9 lb / 1.8 kg without HDDs |
