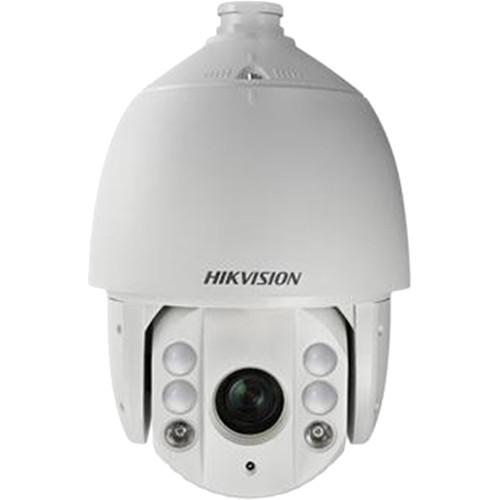

User Manual for Hikvision TurboHD DS-2AE7230TI-A 2MP Outdoor PTZ Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision TurboHD DS-2AE7230TI-A 2MP Outdoor PTZ
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision TurboHD DS-2AE7230TI-A 2MP Outdoor PTZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description PAL and NTSC compatible, the TurboHD DS-2AE7230TI-A 2MP Outdoor PTZ Dome Camera from Hikvision is a versatile surveillance camera that can be used in a myriad of security solutions. This camera provides high-definition video over coaxial cables, allowing you to upgrade an existing surveillance setup while still keeping your BNC wiring. With a 1/3" CMOS sensor, the camera features 1920 x 1080 video resolution, and it uses a 4-120mm varifocal lens for a 58 to 1.7° horizontal field of view. You can pan the camera 360°, tilt it from -15° to 90°, and optically zoom the camera up to 23x to choose the exact area you would like to monitor. You can also digitally zoom up to 16x for focusing within your field of view. IR LEDs provide up to 393.7' of night vision for use at all times, and the LEDs automatically adjust their light intensity depending on your zoom ratio setting. Backlight compensation, digital noise reduction, automatic gain control, and adjustable white balance enhancements assist in providing clear video footage, regardless of changing light levels. Furthermore, there are up to eight simultaneously programmable privacy masking areas for personalizing the camera to your specific requirements. The camera's housing is IP66-rated weatherproof for use outdoors, and it is protected against lightning, power surges, and transient voltage for additional security. - Offers high-resolution imaging passed through coaxial cables
- 4-120mm varifocal lens with f/1.6 to 4.4 aperture for 58 to 1.7° field of view
- UTC offers detailed settings of features for adjusting the camera to specific needs
- Easily pan, tilt, and rotate the camera for choosing a specific view area
- 360° endless panning at speeds of up to 240° per second
- -15 to 90° tilt range with speeds of up to 200° per second
- 30x optical zoom with automatically adjustable rotation speeds
- DNR setting allows for cleaner images by removing unwanted noise
- Day/Night and backlight compensation for viewable images in changing light levels
- Wide Dynamic Range enables you to capture detailed pictures in ambient lighting
- Adjustable white balance creates accurate color depiction
- Automatic gain control maintains strong illumination signals
- 8 privacy-masking zones allow you to record only desired areas
- 16x digital zoom focuses within your field of view
- PAL/NTSC compatible for versatility
- One HD composite output and one RS485 interface with Pelco P & D support
UPC: 816783018381 In the Box Hikvision TurboHD DS-2AE7230TI-A 2MP Outdoor PTZ Dome Camera with Night Vision Limited 3-Year Warranty Brochure PDF 487.7kbyqyzdfrw Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision TurboHD DS-2AE7230TI-A 2MP Outdoor PTZ Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2AE7230TI-A Specs | | | Sensor | 1/3" CMOS | | Effective Pixels (H x V) | 1920 x 1080 | | Signal System | NTSC / PAL | | Minimum Illumination | Color: 0.02 lux @ f/1.6 (AGC on)
B/W: 0.002 lux @ f/1.6 (AGC on)
0 lux with IR | | White Balance | Auto / Manual / ATW / Indoor / Outdoor | | AGC | Auto / Manual | | S/N Ratio | ≥ 50 dB | | DNR | 3D-DNR supported | | Digital WDR | Supported | | Image Stabilization | Electronic image stabilization supported | | BLC | Supported | | Shutter Time | NTSC: 1-1 to 1/10,000 seconds
PAL: 1-1 to 1/10,000 seconds | | Day/Night | IR cut filter | | Digital Zoom | 16x | | Privacy Masking | 8 x programmable privacy masks
Up to 8 zones can be masked simultaneously on the same video screen | | Auto Focus Modes | Auto / Semiautomatic / Manual | | | | Focal Length | 4-120mm varifocal | | Optical Zoom | 30x | | Zoom Speed | 3 seconds (Optical wide to tele) | | Angle of View | 58 to 1.7° (Wide to tele) | | Minimum Working Distance | 10 to 1500 mm (Wide to tele) | | Aperture Range | f/1.6 to 4.4 | | | | Pan | Range: 360° endless
Manual Speed: 0.1 to 160°/second, Preset Speed: 240°/second | | Tilt | Range: -15 to 90° (Auto flip)
Manual Speed: 0.1 to 120°/second, Preset Speed: 200°/second | | Zoom | Proportional: Rotation speed can be adjusted automatically according to zoom multiples | | Number of Presets | 256 | | Patrol | 8 patrols, up to 32 presets per patrol | | Pattern | 4 patterns, with the total recording time not less than 10 minutes | | Power Method | Power-off memory supported | | Action Type | Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame scan / Random scan / Panorama scan | | PTZ Position Display | On / Off | | Preset | Preset freezing supported | | Task | Scheduled: Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan | | RS-485 Communication | Supported | | | | Range | Up to 393.7' (120.0 m) | | Intensity Adjustment | Automatically adjusted, depending on the zoom ratio | | | | HD Output | HD 1080p output, 1.0 V p-p / 75 Ohms, NTSC / PAL composite, BNC | | RS-485 | Half-duplex mode, self-adaptive Hikvision, Pelco-P, Pelco-D protocol | | UTC | Hikvision _C (Needs UTC controller) | | | | Menu Language | English / Chinese | | Power Supply | 24 VAC, 50 W maximum | | Working Temperature | -22 to 149°F (-30 to 65°C) | | Humidity | 90% or less | | Protection Level | IP66 standard
TVS 4000 V lighting protection, surge protection, voltage transient protection | | Dimensions | 8.66 x 13.91" (22.0 x 35.3 cm) | | Weight | 9.92 lb (4.50 kg) | | | | Package Weight | 16.55 lb | | Box Dimensions (LxWxH) | 19.6 x 11.1 x 11.1" |
