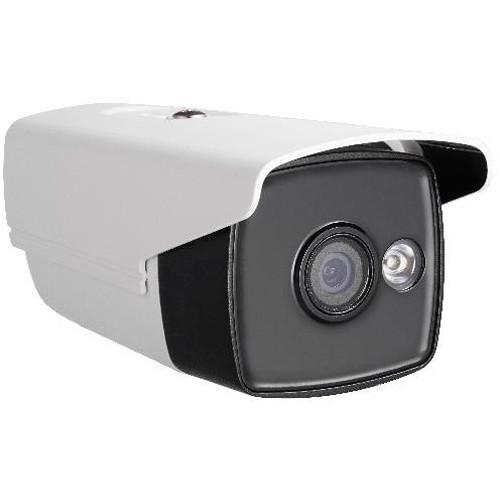

User Manual for Hikvision TurboHD DS-2CE16D0T-WL3 2MP Outdoor HD-TVI Bullet Camera with Night Vision & 3.6mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision TurboHD DS-2CE16D0T-WL3 2MP Outdoor HD-TVI
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision TurboHD DS-2CE16D0T-WL3 2MP Outdoor HD-TVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Get a high definition view of your property using existing coax cables with the TurboHD DS-2CE16D0T-WL3 2MP Outdoor HD-TVI Bullet Camera with Night Vision & 3.6mm Lens from Hikvision. Equipped with a 2MP CMOS sensor and a 3.6mm fixed lens, the DS-2CE16D0T-WL3 captures video at resolutions up to 1920 x 1080 at 30 fps in a horizontal field of view of 82°. The camera has an IR emitter and a supplemental white light lamp, each with an effective range of up to 100'. Designed for outdoor use, the camera is housed in an IP66-rated enclosure. In the Box Hikvision TurboHD DS-2CE16D0T-WL3 2MP Outdoor HD-TVI Bullet Camera with Night Vision & 3.6mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision TurboHD DS-2CE16D0T-WL3 2MP Outdoor HD-TVI Bullet Camera with Night Vision & 3.6mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE16D0T-WL3 Specs | | | Image Sensor | 2 MP CMOS Sensor | | Resolution | 1920 x 1080 at 25/30 fps | | Minimum Illumination | 0.01 Lux at f/1.2, AGC On | | Shutter Speed | 1/50,000 to 1/30 Seconds | | Lens | 3.6mm Fixed | | Field of View | Horizontal: 82° | | Lens Mount | M12 | | Day/Night | Yes, Color | | Angle Adjustment | Horizontal: 0 to 360°
Vertical: 0 to 90° | | Signal System | NTSC | | Synchronization | Internal | | HD Video Output | 1 x Analog HD Output | | Signal-to-Noise Ratio | >62 dB | | | | IR Range | Up to 100' / 30 m | | White Light Range | Up to 100' / 30 m | | Ingress Protection | IP66 | | Up-the-Coax Protocol | HIKVISION-C | | Certifications | UL, CE, FCC, cSA | | Power Supply | 12 VDC ±10% | | Maximum Power Consumption | 1 W
3 W with White Light On | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 90% Max., Non-Condensing | | Dimensions | 7.64 x 3.68 x 3.70" / 19.4 x 9.3 x 9.4 cm | | Weight | 0.99 lb / 450 g Approx. |
