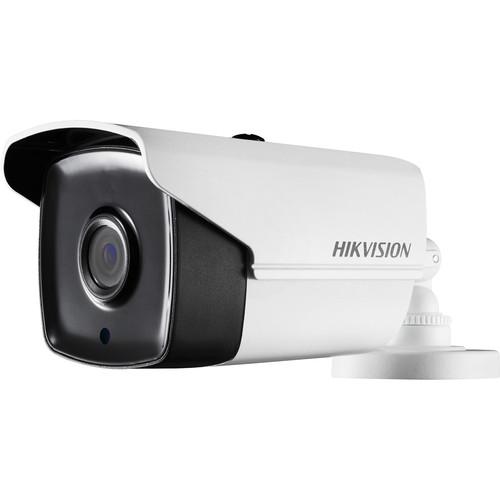

User Manual for Hikvision TurboHD DS-2CE16D8T-IT 2MP Outdoor HD-TVI Bullet Camera with Night Vision & 2.8mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision TurboHD DS-2CE16D8T-IT 2MP Outdoor HD-TVI
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision TurboHD DS-2CE16D8T-IT 2MP Outdoor HD-TVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Get a high definition view of your property using existing coax cables with the TurboHD DS-2CE16D8T-IT 2MP Outdoor HD-TVI Bullet Camera with Night Vision from Hikvision. Equipped with a 2MP CMOS sensor and a 2.8mm fixed lens, the camera captures video at resolutions up to 1920 x 1080 at 30 fps in a horizontal field of view of 103.5°. The camera is equipped with an IR cut filter and IR LEDs for night vision with an effective range of up to 65'. Image enhancement features including a 120 dB wide dynamic range and automatic white balance enable you to capture clear images in varying lighting conditions. Designed for outdoor use, the camera is housed in an IP67-rated enclosure. - EXIR 2.0 IR technology for low-light visibility up to 65'
- IR cut filter for day and night vision
- Camera pivots from 0 to 360° horizontally and from 0 to 180° vertically
- 120 dB wide dynamic range
- cSA, FCC, CE, and UL certified
In the Box Hikvision TurboHD DS-2CE16D8T-IT 2MP Outdoor HD-TVI Bullet Camera with Night Vision & 2.8mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision TurboHD DS-2CE16D8T-IT 2MP Outdoor HD-TVI Bullet Camera with Night Vision & 2.8mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE16D8T-IT Specs | | | Image Sensor | 2 MP Progressive Scan CMOS Sensor | | Signal System | NTSC/PAL | | Resolution | 1920 x 1080 | | Frame Rate | NTSC: 30 fps at 1920 x 1080
PAL: 25 fps at 1920 x 1080 | | Minimum Illumination | Color: 0.005 Lux at f/1.2, AGC On
B&W: 0 Lux with IR | | Shutter Speed | NTSC: 1/50,000 to 1/30 Seconds
PAL: 1/50,000 to 1/25 Seconds | | Slow Shutter | 16x Maximum | | Lens | 2.8mm Fixed | | Field of View | Horizontal: 103.5° | | Lens Mount | M12 | | Day/Night | IR Cut Filter | | Angle Adjustment | Horizontal: 0 to 360°
Vertical: 0 to 180°
Rotation: 0 to 360° | | Synchronization | Internal | | Wide Dynamic Range | >120 dB | | | | AGC | Yes | | Day/Night | Auto/Color/B&W | | White Balance | ATW/Manual | | Privacy Masking | On/Off, 8 Programmable Privacy Zones | | Motion Detection | 4 Programmable Motion Areas | | Backlight Compensation | WDR/BLC/HLC/Off | | Digital Noise Reduction | 3D-DNR, Levels 1 to 10 | | Language | English | | Functions | Brightness, Sharpness, Mirror, Smart IR | | | | HD Video Output | 1 x Analog HD Output | | | | IR Range | Up to 65' / 20 m | | Ingress Protection | IP67 | | Communication | Up-the-Coax, HIKVISION-C Protocol | | Certifications | UL, CE, FCC, cSA | | Material | Metal | | Power Supply | 12 VDC ±25% | | Maximum Power Consumption | 3.6 W | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 90% Max., Non-Condensing | | Dimensions | 2.28 x 2.40 x 6.42" / 5.8 x 6.1 x 16.3 cm | | Weight | 0.77 lb / 350 g Approximate |
