Hikvision TurboHD DS-2CE16D8T-IT3 2MP Outdoor HD-TVI

Search your instruction manual in PDF to download

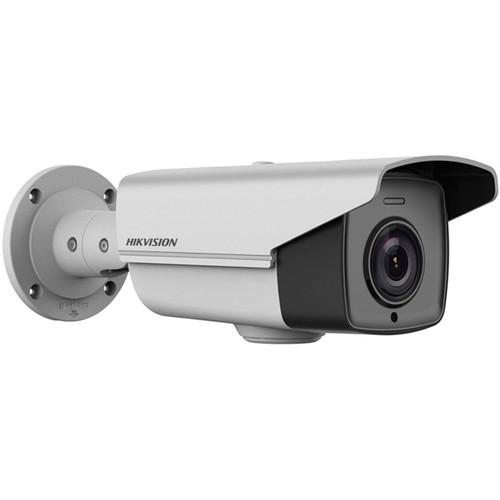

User Manual for Hikvision TurboHD DS-2CE16D8T-IT3 2MP Outdoor HD-TVI Bullet Camera with Night Vision & 12mm Lens

Click to enlarge the picture
Hikvision TurboHD DS-2CE16D8T-IT3 2MP Outdoor HD-TVI Bullet Camera with Night Vision & 12mm Lens Contents of the user manual for the Hikvision TurboHD DS-2CE16D8T-IT3 2MP Outdoor HD-TVI
  • Product category: Wired Analog & HD Cameras Hikvision
  • Brand: Hikvision
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Hikvision Wired Analog & HD Cameras

User manual for the Hikvision TurboHD DS-2CE16D8T-IT3 2MP Outdoor HD-TVI contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Hikvision product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!



Product description

Get a high definition view of your property using existing coax cables with the TurboHD DS-2CE16D8T-IT3 2MP Outdoor HD-TVI Bullet Camera with Night Vision from Hikvision. Equipped with a 2MP CMOS sensor and a 12mm fixed lens, the DS-2CE16D8T-IT3 captures video at resolutions up to 1920 x 1080 at 30 fps in a horizontal field of view of 24.4°. The camera is equipped with an IR cut filter and IR LEDs for night vision to an effective range of up to 130'. Image enhancement features including a 120 dB wide dynamic range and automatic white balance enable you to capture clear images in varying lighting conditions. Designed for outdoor use, the camera is housed in an IP67-rated enclosure.
  • EXIR 2.0 IR technology for low-light visibility up to 130'
  • IR cut filter for day and night vision
  • Camera pivots from 0 to 360° horizontally and from 0 to 180° vertically
  • 0 to 360° rotation
  • Internal synchronization
  • 120 dB wide dynamic range
  • Automatic gain control
  • Automatic white balance
  • Backlight compensation
  • 3D digital noise reduction
  • Mirroring
  • cSA, FCC, CE, and UL certified
In the Box Hikvision TurboHD DS-2CE16D8T-IT3 2MP Outdoor HD-TVI Bullet Camera with Night Vision & 12mm Lens
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Hikvision TurboHD DS-2CE16D8T-IT3 2MP Outdoor HD-TVI Bullet Camera with Night Vision & 12mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Hikvision DS-2CE16D8T-IT3 Specs

    Image Sensor 2 MP Progressive Scan CMOS Sensor
    Signal System NTSC/PAL
    Resolution 1920 x 1080
    Frame Rate NTSC: 30 fps at 1920 x 1080
    PAL: 25 fps at 1920 x 1080
    Minimum Illumination Color: 0.005 Lux at f/1.2, AGC On
    B&W: 0 Lux with IR
    Shutter Speed NTSC: 1/50,000 to 1/30 Seconds
    PAL: 1/50,000 to 1/25 Seconds
    Slow Shutter 16x Maximum
    Lens 12mm Fixed
    Field of View Horizontal: 24.4°
    Lens Mount M12
    Day/Night IR Cut Filter
    Angle Adjustment Horizontal: 0 to 360°
    Vertical: 0 to 180°
    Rotation: 0 to 360°
    Synchronization Internal
    Wide Dynamic Range >120 dB
    AGC Yes
    Day/Night Auto/Color/B&W
    White Balance ATW/Manual
    Privacy Masking On/Off, 4 Programmable Privacy Zones
    Motion Detection 4 Programmable Motion Areas
    Backlight Compensation WDR/BLC/HLC/Off
    Digital Noise Reduction 3D-DNR, Levels 1 to 10
    Language English
    Functions Brightness, Sharpness, Mirror, Smart IR
    HD Video Output 1 x Analog HD Output
    IR Range Up to 130' / 40 m
    Ingress Protection IP67
    Communication Up-the-Coax, HIKVISION-C Protocol (HD-TVI output)
    Certifications UL, CE, FCC, cSA
    Material Metal
    Power Supply 12 VDC ±25%
    Maximum Power Consumption 3.6 W
    Operating Temperature -40 to 140°F / -40 to 60°C
    Operating Humidity 90% Max., Non-Condensing
    Dimensions 3.4 x 3.2 x 8.7" / 8.7 x 8.2 x 22.6 cm
    Weight 1.5 lb / 680 g Approximate
