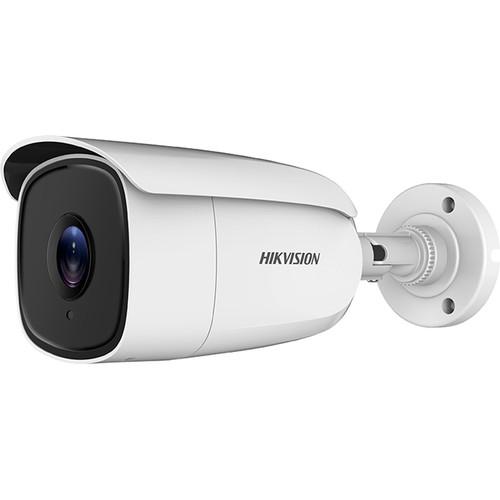

User Manual for Hikvision TurboHD DS-2CE18U8T-IT3 8MP Outdoor HD-TVI Bullet Camera with Night Vision & 2.8mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision TurboHD DS-2CE18U8T-IT3 8MP Outdoor HD-TVI
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision TurboHD DS-2CE18U8T-IT3 8MP Outdoor HD-TVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Get an 8MP view of your property using existing coax cables with the TurboHD DS-2CE18U8T-IT3 8MP Outdoor HD-TVI Bullet Camera with Night Vision from Hikvision. Equipped with an 8MP CMOS sensor and a 2.8mm fixed lens, the DS-2CE18U8T-IT3 captures video at resolutions up to 3840 x 2160 at 15 fps in a horizontal field of view of 102.2°. The camera is equipped with an IR cut filter and IR LEDs for night vision with an effective range of up to 195'. Image enhancement features including a 120 dB wide dynamic range and automatic white balance enable you to capture clear images in varying lighting conditions. Designed for outdoor use, the camera is housed in an IP67-rated enclosure. - EXIR 2.0 IR technology for low-light visibility up to 195'
- IR cut filter for day and night vision
- Camera pivots from 0 to 360° horizontally and from 0 to 180° vertically
- 120 dB wide dynamic range
- Highlight and backlight compensation
- 3D digital noise reduction
- Privacy masking with four programmable zones
- cSA, FCC, CE, and UL certified
UPC: 842571115352 In the Box Hikvision TurboHD DS-2CE18U8T-IT3 8MP Outdoor HD-TVI Bullet Camera with Night Vision & 2.8mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision TurboHD DS-2CE18U8T-IT3 8MP Outdoor HD-TVI Bullet Camera with Night Vision & 2.8mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE18U8T-IT3 2.8MM Specs | | | Image Sensor | 8 MP Progressive Scan CMOS Sensor | | Resolution | 3840 x 2160 | | Minimum Illumination | Color: 0.003 Lux at f/1.2, AGC On
B&W: 0 Lux with IR | | Shutter Speed | 1/10,000 to 1/15 Seconds | | Lens | 2.8mm Fixed | | Slow Shutter | 16x Maximum | | Field of View | Horizontal: 102.2° | | Lens Mount | M12 | | Day/Night | IR Cut Filter | | Angle Adjustment | Horizontal: 0 to 360°
Vertical: 0 to 180°
Rotation: 0 to 360° | | Signal System | NTSC | | Frame Rate | 15 fps at 8 MP
20 fps at 5 MP
30 fps at 4 MP
30 fps at 1080p | | Synchronization | Internal | | Wide Dynamic Range | 120 dB | | | | AGC | Yes | | Day/Night | Auto/Color/B&W | | White Balance | Auto/Manual/Natural | | Privacy Masking | On/Off, 4 Programmable Privacy Zones | | Backlight Compensation | Yes | | 3D-DNR | Levels 1 to 10 | | Language | English | | Functions | Contrast, Sharpness, Saturation, Mirror, Defog, HLC | | | | HD Video Output | 1 x Analog HD-TVI Output | | Switch | 1 CVBS Output (BNC, 75 Ohms) | | | | IR Range | Up to 195' / 60 m | | Ingress Protection | IP67 | | Communication | Up-the-Coax, HIKVISION-C Protocol (HD-TVI Output) | | Certifications | UL, CE, FCC, cSA | | Material | Metal | | Power Supply | 12 VDC ±25% | | Maximum Power Consumption | 4.8 W | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 90% Max., Non-Condensing | | Dimensions (Ø x H) | 2.75 x 8.85" / 7.0 x 22.5 cm | | Weight | 1.4 lb / 630 g Approximate | | | | Package Weight | 1.82 lb | | Box Dimensions (LxWxH) | 9.3 x 4.8 x 4.8" |
