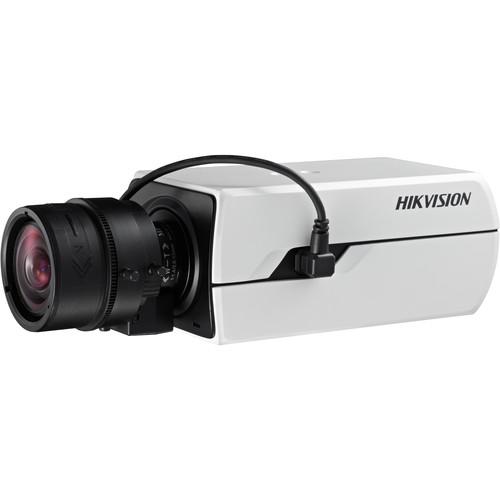

User Manual for Hikvision TurboHD DS-2CE37U8T-A 8MP HD-TVI Box Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision TurboHD DS-2CE37U8T-A 8MP HD-TVI Box
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision TurboHD DS-2CE37U8T-A 8MP HD-TVI Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Get an 8MP view of your property using existing coax cables with the TurboHD DS-2CE37U8T-A 8MP HD-TVI Box Camera with Night Vision from Hikvision. Featuring a C/CS lens mount, this camera is designed to be customized with the separately available lens of your choice. The camera is equipped with an 8MP CMOS sensor to capture video at resolutions up to 3840 x 2160 at 15 fps. It delivers color images down to 0.003 lux, and uses IR LEDs to deliver B&W images in zero-lux conditions. Image enhancement features including a 120 dB wide dynamic range, automatic white balance, and backlight/highlight compensation enable you to capture clear images in varying lighting conditions. - Color images down to 0.003 lux at f/1.2 with AGC on
- 120 dB wide dynamic range
- 3D digital noise reduction
- Four programmable privacy masking zones
- HD analog and CVBS dual output
- Alarm and RS-485 interfaces
- Runs on 12 VDC or 24 VAC power
- cSA, FCC, CE, and UL certified
UPC: 842571115314 In the Box Hikvision TurboHD DS-2CE37U8T-A 8MP HD-TVI Box Camera with Night Vision (No Lens) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision TurboHD DS-2CE37U8T-A 8MP HD-TVI Box Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE37U8T-A Specs | | | Image Sensor | 8 MP Progressive Scan CMOS | | Signal System | NTSC | | Resolution | 3840 x 2160 | | Frame Rate | 15 fps at 8 MP
20 fps at 5 MP
30 fps at 4 MP
30 fps at 1080p | | Minimum Illumination | Color:
0.003 Lux at f/1.2 with AGC On
B&W: 0 Lux with IR | | Shutter Time | 1/10,000 to 1/15 Seconds | | Lens Mount | C/CS Mount | | Auto Iris | DC Drive | | Synchronization | Internal | | WDR | 120 dB | | | | AGC | Yes | | Day/Night Mode | Auto, Color, B&W | | White Balance | Auto, Manual, Natural | | Privacy Masking | On/Off, 4 Programmable Zones | | BLC | Yes | | DNR | 3D-DNR, Levels 1 to 10 | | Language | English | | Functions | Contrast, Sharpness, Saturation, Mirror, Defog, HLC | | | | HD Video Output | 1 x HD-TVI Output | | CVBS Output | 1 x BNC (75 Ohms) | | Communication Interface | 1 x RS-485 | | | | Material | Metal | | Certifications | UL, CE, FCC, cSA | | Communication | Up-the-Coax, HIKVISION-C Protocol (HD-TVI output) | | Power Supply | 12 VDC ±25%, 24 VAC ±25% | | Maximum Power Consumption | 10 W | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 90% Max., Non-Condensing | | Dimensions | 5.71 x 2.28 x 2.75" / 14.5 x 5.8 x 7.0 cm | | Weight | 1.15 lb / 520 kg |
