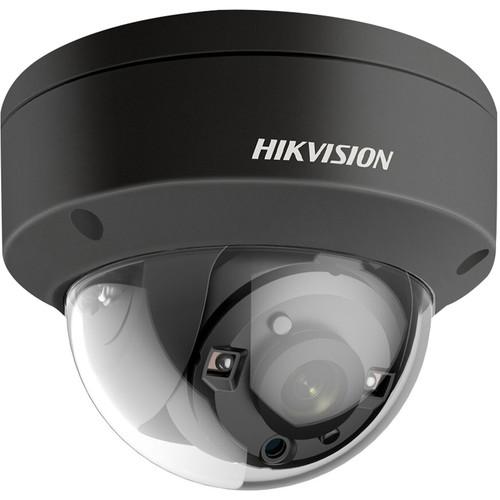

User Manual for Hikvision TurboHD DS-2CE56H5T-VPITEB 5MP Outdoor HD-TVI Dome Camera with Night Vision & 2.8mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision TurboHD DS-2CE56H5T-VPITEB 5MP Outdoor HD-TVI
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision TurboHD DS-2CE56H5T-VPITEB 5MP Outdoor HD-TVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Get a 5MP view of your property using existing coax cables with the black TurboHD DS-2CE56H5T-VPITEB 5MP Outdoor HD-TVI Dome Camera with Night Vision from Hikvision. Equipped with a 5MP CMOS sensor and a 2.8mm fixed lens, the camera captures video at resolutions up to 2560 x 1944 at 20 fps in a 91° field of view. The camera has an IR cut filter and IR LEDs for night vision with an effective range of up to 65'. Image enhancement features including digital wide dynamic range and automatic white balance enable you to capture clear images in varying lighting conditions.
The DS-2CE56H5T-VPITEB features PoC technology, enabling you to run just one cable for both data and power. Designed for use in vandal-prone outdoor locations, the camera is housed in an IP67- and IK10-rated enclosure. - EXIR 2.0 IR technology for low-light visibility up to 65'
- IR cut filter for day and night vision
- Camera pivots from 0 to 355° horizontally and from 0 to 75° vertically
- Digital wide dynamic range
- cSA, FCC, CE, and UL certified
- IP67 rated for outdoor use
- IK10-rated vandal resistance
In the Box Hikvision TurboHD DS-2CE56H5T-VPITEB 5MP Outdoor HD-TVI Dome Camera with Night Vision & 2.8mm Lens (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision TurboHD DS-2CE56H5T-VPITEB 5MP Outdoor HD-TVI Dome Camera with Night Vision & 2.8mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE56H5T-VPITEB 2.8MM Specs | | | Image Sensor | 5 MP CMOS Sensor | | Resolution | 2560 x 1944 at 20 fps
2560 x 1944 at 12.5 fps (Not Available in PoC Mode)
2560 x 1440 at 30 fps
2560 x 1440 at 25 fps (Default)
1920 x 1080 at 30/25 fps | | Minimum Illumination | Color: 0.008 Lux at f/1.2, AGC On
B&W: 0 Lux with IR | | Shutter Speed | NTSC: 1/50,000 to 1/30 Seconds
PAL: 1/50,000 to 1/25 Seconds | | Lens | 2.8mm Fixed | | Field of View | Horizontal: 91° | | Lens Mount | M12 | | Day/Night | IR Cut Filter | | Angle Adjustment | Horizontal: 0 to 355°
Vertical: 0 to 75°
Rotation: 0 to 355° | | Synchronization | Internal | | | | AGC | Yes | | Day/Night | Auto/Color/B&W | | White Balance | ATW/MWB | | Backlight Compensation | Yes | | Digital WDR | Yes | | Language | English | | Functions | Brightness, Sharpness, DNR, Mirror, Smart IR | | | | HD Video Output | 1 x Analog HD Output | | | | IR Range | Up to 65' / 20 m | | Ingress Protection | IP67 | | Vandal Resistance | IK10 | | Communication | Up-the-Coax, HIKVISION-C Protocol | | Certifications | UL, CE, FCC, cSA | | Material | Metal | | Power Supply | 12 VDC ±25%, PoC.af | | Maximum Power Consumption | 4.5 W | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 90% Max., Non-Condensing | | Dimensions (Ø x H) | 4.4 x 3.2" / 11.1 x 8.2 cm | | Weight | 0.77 lb / 350 g Approximate |
