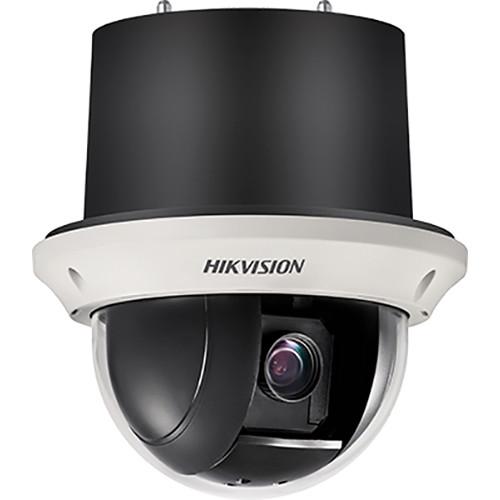

User Manual for Hikvision TurboHD EPT-4215-D3 2MP HD-TVI PTZ Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision TurboHD EPT-4215-D3 2MP HD-TVI PTZ
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision TurboHD EPT-4215-D3 2MP HD-TVI PTZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Get a high definition view of your property using existing coax cables with the TurboHD EPT-4215-D3 2MP HD-TVI PTZ Dome Camera with Night Vision from Hikvision. Equipped with a 2MP CMOS sensor and a 5-75mm varifocal lens, the EPT-4215-D3 captures video at resolutions up to 1920 x 1080 at 30 fps in a 53.8 to 4.0° field of view. The camera is equipped with an IR cut filter and IR LEDs for night vision with an effective range of up to 330'. Image enhancement features including a 120 dB wide dynamic range and automatic white balance enable you to capture clear images in varying lighting conditions. Moreover, the EPT-4215-D3 has PTZ functionality, with 360° endless pan, 105° tilt, and 15x optical zoom, allowing you see more detail and cover larger areas with a single camera. - Color images down to 0.005 lux at f/1.6 with AGC on
- IR technology for up to 330' of night vision
- IR cut filter for day and night vision
- 360° endless pan and 85° tilt
- 120 dB wide dynamic range
- 3D digital noise reduction
- Eight programmable privacy masking zones
- HD analog and CVBS dual output
- cSA, FCC, CE, and UL certified
UPC: 842571116823 In the Box Hikvision TurboHD EPT-4215-D3 2MP HD-TVI PTZ Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision TurboHD EPT-4215-D3 2MP HD-TVI PTZ Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision EPT-4215-D3 Specs | | | Image Sensor | 2 MP 1/2.8" Progressive Scan CMOS | | Resolution | 1920 x 1080 | | Frame Rate | 30 fps at 1920 x 1080 | | Minimum Illumination | Color:
0.005 Lux at f/1.6 with AGC On
B&W: 0 Lux with IR | | White Balance | Auto, Half-Auto, Manual, ATW, Indoor, Outdoor | | AGC | Auto, Manual | | DNR | 3D-DNR | | WDR | ≥120 dB | | Shutter Speed | 1/10,000 to 1 Second | | Day/Night | IR Cut Filter | | Privacy Masking | 8 Programmable Privacy Masking Zones | | | | Focus Modes | Auto, Semi-Auto, Manual | | Lens | 5-75mm Varifocal | | Optical Zoom | 15x | | Aperture Range | f/1.6 to f/3.5 | | Field of View | 53.8 to 4.0° | | Minimum Working Distance | Wide to Tele: 0.4 to 59" / 10 to 1500 mm | | Zoom Speed | Wide to Tele: 2.4 Seconds Approximate | | | | Pan | 360° Endless | | Pan Speed | Configurable from 0.1 to 100° per second
Preset Speed: 100° per second | | Tilt | 5 to 90° (Auto-Flip) | | Tilt Speed | Configurable from 0.1 to 80° per second
Preset Speed: 80° per second | | Proportional Zoom | Yes | | Patrol Scan | 10 Patrols
Up to 32 Presets per Patrol | | Pattern Scan | 5 Pattern Scans
Record Time: Over 10 Minutes for Each Scan | | Power-Off Memory | Yes | | Park Action | Preset, Patrol, Pattern, Pan Scan, Tilt Scan, Panorama Scan, Day Mode, Night Mode, None | | Status Display | On/Off | | Preset Freezing | Supported | | Scheduled Tasks | Preset, Patrol, Pattern, Pan Scan, Tilt Scan, Panorama Scan, Day Mode, Night Mode, Zero Calibration, None | | | | HD Video Output | 1 x Analog 1080p Output, NTSC Composite (BNC) | | CVBS Output | 1.0 V p-p, 75 Ohms, NTSC Composite (BNC) | | RS-485 | Half-Duplex Mode
Self-Adaptive HIKVISION, Pelco-P, and Pelco-D Protocols | | UTC | UTC Protocol (or HIKVISION-C Protocol) | | | | IR Range | Up to 330' / 100 m | | Language | English | | Protection | TVS 4000V Lightning Protection, Surge Protection, and Transient Voltage Protection | | Certifications | UL, CE, FCC, cSA | | Power Supply | 12 VDC | | Maximum Power Consumption | 12 W | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | 90% Max., Non-Condensing | | Dimensions (Ø x H) | 6.5 x 6.6" / 16.5 x 16.8 cm | | Weight | 4.4 lb / 2 kg | | | | Package Weight | 5.5 lb | | Box Dimensions (LxWxH) | 15.3 x 8.7 x 8.7" |
