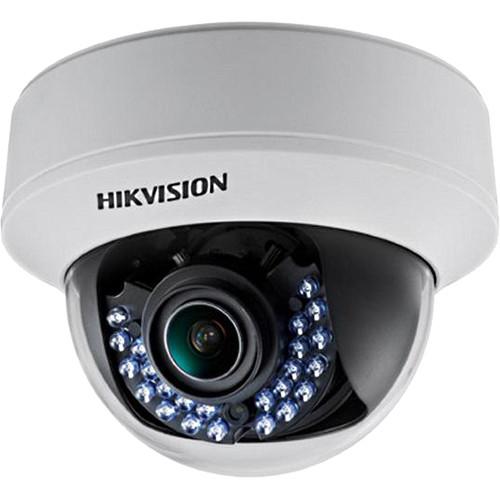

User Manual for Hikvision TurboHD Series 1.3MP HD-TVI Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision TurboHD Series 1.3MP HD-TVI Dome
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision TurboHD Series 1.3MP HD-TVI Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description PAL- and NTSC-compatible, the TurboHD Series 1.3MP HD-TVI Dome Camera from Hikvision is a versatile surveillance camera that can be used in a myriad of security solutions. The camera features HD-TVI technology, providing you with high-definition video over coaxial cables. This allows you to upgrade an existing surveillance setup while keeping your BNC wiring. With a 1/3" progressive scan CMOS sensor, the camera features 1280 x 720 video resolution, and it uses a 2.8-12mm varifocal lens for a 78-28° horizontal field of view. There are up to four programmable motion detection zones and eight programmable privacy-masking areas for personalizing the camera to your specific requirements. Backlight compensation, digital noise reduction, automatic gain composure, and adjustable white balance enhancements assist in providing clear video footage, regardless of changing light levels. Furthermore, the onscreen display menu allows you to make quick changes to the camera's light settings for increasing image sharpness and brightness. - Offers high-resolution imaging passed through coaxial cables
- Infrared LEDs provide up to 98' of night vision, even in complete darkness
- On-screen display operated through on-board control
- UTC offers detailed setting of features for adjusting the camera to specific needs
- DNR setting allows for cleaner images by removing unwanted noise
- Day/Night and backlight compensation for viewable images in changing light levels
- Wide Dynamic Range enables you to capture detailed pictures in variable lighting
- Adjustable white balance creates accurate color depiction
- Automatic gain control maintains strong illumination signals
- Motion detection can be programmed for up to 4 zones
- Privacy-masking zones allow you to record only desired areas
- Digital zoom focuses within your field of view
- PAL/NTSC compatible for versatility
UPC: 813908020403 In the Box Hikvision TurboHD Series 1.3MP HD-TVI Dome Camera with Night Vision Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision TurboHD Series 1.3MP HD-TVI Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Hikvision TurboHD Series 1.3MP HD-TVI Dome Camera with Night Vision can be downloaded in PDF format at the link stated below.
Technical parametersHikvision DS-2CE56C5T-AVFIR Specs | | | Image Sensor | 1/3" progressive scan CMOS sensor | | Signal System | PAL/NTSC | | Effective Pixels (H x V) | 1305 x 1049 | | Minimum Illumination | 0.001 lux at f/1.2, AGC on
0 lux with IR on | | Lens | 2.8-12mm at f/1.4 | | Field of View | Horizontal: 78-28° | | Lens Mount | M12 | | Adjustments | Pan: 0 to 355°
Tilt: 0 to 180°
Rotate: 0 to 355° | | Day/Night | IR cut filter with auto-switch | | IR Range | 98.4' (30 m) | | Synchronization | Internal | | Output | 1 x V p-p composite (75 Ohms, BNC) | | S/N Ratio | >62 dB | | UTC | Supported | | | | Automatic Gain Control | Low, middle, high, off | | Day/Night Mode | Color, B&W, EXT | | Auto White Balance | Auto, manual | | Privacy Masking | On/off, maximum 8 zones | | Motion Detection | On/off, maximum 4 zones | | Language | English and Chinese | | Functions | Digital wide dynamic range (DWDR), 3D digital noise reduction (3D-DNR), sharpness, brightness, digital zoom, mirror | | | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Humidity | 90% or less (non-condensing) | | Power Supply | 12 VDC ±10% | | Maximum Power Consumption | 12 VDC: 3.5 W
24 VAC: 4.5 W | | Dimensions | 5.4 x 4" (13.6 x 10.1 cm) | | Weight | 0.84 lb (0.4 kg) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 6.9 x 6.8 x 6.0" |
