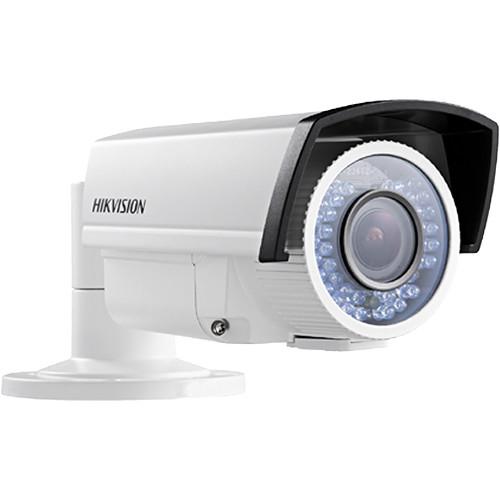

User Manual for Hikvision TurboHD Series 1.3MP Outdoor HD-TVI Bullet Camera Click to enlarge the picture
Contents of the user manual for the Hikvision TurboHD Series 1.3MP Outdoor HD-TVI
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision TurboHD Series 1.3MP Outdoor HD-TVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The TurboHD Series 1.3MP HD-TVI Outdoor Bullet Camera from Hikvision is a versatile surveillance camera that can be used in a myriad of security solutions. The camera features HD-TVI technology, providing you with high-definition video over coaxial cables. This allows you to upgrade an existing surveillance setup while still keeping your BNC wiring. With a 1/3" progressive-scan CMOS sensor, the camera features 1280 x 720 high-quality video resolution, and it uses a 2.8-12mm varifocal lens for a 78° to 28° horizontal field of view. In addition, you can easily pan, tilt, and zoom the camera for choosing the exact view area you would like to monitor. There are up to four programmable motion detection zones and eight programmable privacy masking areas for personalizing the camera to your specific requirements. Backlight compensation, digital noise reduction, automatic gain composure, and adjustable white balance enhancements assist in providing clear video footage, regardless of changing light levels. Furthermore, the onscreen display menu allows you to make quick changes to the camera's light settings for increasing image sharpness and brightness. - Offers high-resolution imaging passed through coaxial cables
- Infrared LEDs provide up to 130' of night vision, even in complete darkness
- On-screen display operates through on-board control
- UTC offers detailed settings of features for adjusting the camera to specific needs
- Easily pan, tilt, and rotate the camera for choosing a specific view area
- DNR setting allows for cleaner images by removing unwanted noise
- Day/Night and backlight compensation for viewable images in changing light levels
- Wide Dynamic Range enables you to capture detailed pictures in ambient lighting
- Adjustable white balance creates accurate color depiction
- Automatic gain control maintains strong illumination signals
- Motion detection can be programmed for up to 4 zones
- Privacy-masking zones allow you to record only desired areas
- Digital zoom focuses within your field of view
UPC: 816783018930 In the Box Hikvision TurboHD Series 1.3MP Outdoor HD-TVI Bullet Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision TurboHD Series 1.3MP Outdoor HD-TVI Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision TurboHD Series Specs | | | Image Sensor | 1/3" progressive-scan CMOS | | Signal System | NTSC | | Effective Pixels (H x V) | 1305 x 1049 | | Minimum Illumination | 0.0014 lux @ f/1.4 (AGC on) | | Shutter Speed | 1/60 to 1/50,000 seconds | | Lens | 2.8-12mm @ f/1.4 | | Horizontal Angle of View | 78° to 28° | | Lens Mount | φ14 | | Adjustments | Pan: 0 to 360°
Tilt: 0 to 90°
Rotation: 0 to 360° | | Day/Night | True Day/Night with ICR | | IR Range | 131.2' / 40.0 m | | Synchronization | Internal | | Frame Rate | 60 fps | | Output | CVBS: 1 V p-p composite (75 ohms, BNC) | | S/N Ratio | > 62 dB | | | | Settings | Automatic Exposure: Globe AE / DWDR
AGC: Low / Middle / High / Off
Slow Shutter: Supported
White Balance: Auto / Manual
3D DNR: Low / Middle / High / Off | | Day/Night Mode | Color / BW / Smart IR | | Motion Detection | Up to 4 zones | | Privacy Masking | Up to 8 zones | | OSD and System Menu Display | Up the coax | | Language | English | | Functions | DWDR, 3D DNR, Sharpness, Brightness, Digital zoom, Mirror | | | | Communication | Up the coax (UTC controller required)
Protocol: Pelco-C (Coaxitron) | | Power Supply | 12 VDC | | Power Consumption | 4 W (max) | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Humidity | 90% or less (non-condensing) | | Ratings | IP66 weatherproof rating | | Dimensions | 4.1 x 3.4 x 10.5" / 10.5 x 8.7 x 26.7 cm | | Weight | 3.0 lb / 1.3 kg | | | | Package Weight | 2.535 lb | | Box Dimensions (LxWxH) | 12.45 x 5.8 x 5.8" |
