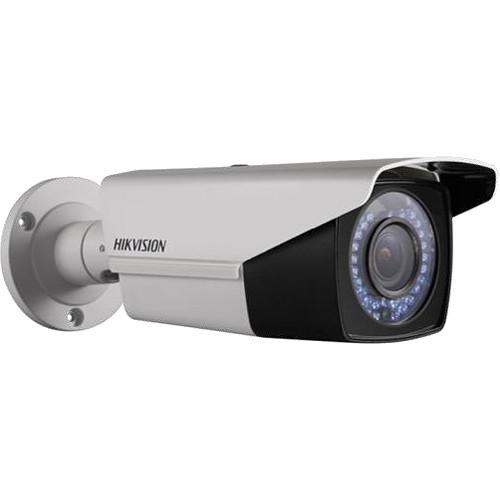

User Manual for Hikvision TurboHD Series 1080p Outdoor Bullet Camera with Night Vision & Built-In Heater Click to enlarge the picture
Contents of the user manual for the Hikvision TurboHD Series 1080p Outdoor Bullet
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision TurboHD Series 1080p Outdoor Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The TurboHD Series 1080p Outdoor Bullet Camera with Night Vision from Hikvision can capture 1080p video over standard coax cable thanks to TurboHD technology allowing you to use existing cables. It has a 2MP CMOS image sensor and a 2.8-12mm varifocal lens with a 103-32.1° field of view to monitor medium to large areas. A mechanical IR cut filter and IR LEDs provide night vision in complete darkness for 24/7 surveillance at a range of up to 130'. The camera is housed in an IP66-rated enclosure for protection against dust and water, making it suitable for outdoor use. A built-in heater allows full operation in weather conditions down to -40°F. - 2MP progressive scan CMOS sensor captures 1920 x 1080 resolution video at up to 30 fps
- 2.8-12mm varifocal lens has a 103-32.1° field of view
- IR LEDs for night vision up to 130'
- Wide dynamic range (120 dB) and 3D digital noise reduction help the camera produce clear images in varying lighting conditions
- Built-in heater for operation in temperatures as low as -40°F
- IP66-rated enclosure for outdoor use
UPC: 813908024371 In the Box Hikvision TurboHD Series 1080p Outdoor Bullet Camera with Night Vision & Built-In Heater Limited 3-Year Warranty Brochure PDF 783.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision TurboHD Series 1080p Outdoor Bullet Camera with Night Vision & Built-In Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE16D5T Specs | | | Image Sensor | 2 MP CMOS sensor | | Signal System | NTSC | | Effective Pixels | 1920 x 1080 | | Minimum Illumination | 0.014 lux at f/1.4 with AGC on
0 lux with IR LEDs on | | Shutter Time | 1/30 to 1/50,000 sec | | Lens | 2.8-12mm at f/1.4
Motorized, varifocal | | Field of View | 103-32.1° | | Lens Mount | Diameter: 14 mm | | Day/Night | Mechanical IR cut filter | | Synchronization | Internal synchronization | | Wide Dynamic Range | 120 dB | | Digital Noise Reduction | 3D-DNR | | Video Frame Rate | 1080p at 30 fps | | Video Output | 1 x BNC coax with TurboHD | | CVBS Output | 1 x V p-p composite output, 75 Ohms | | S/N Ratio | >52 dB | | | | Scene | Indoor, outdoor, indoor1, low-light | | Camera ID | On/off (15 characters, position programmable) | | AGC | Support | | Day/Night Mode | Color, B&W, ext | | White Balance | ATW, AWC-SET, indoor, outdoor, manual | | Privacy Masking | On/off, maximum 8 zones | | Motion Detection | On/off, maximum 4 zones | | BLC | Supported | | Anti-Flicker | On/off | | Functions | HSBLC, digital noise reduction, digital zoom (62x), slow shutter, mirror, defog, defect pixel correction, SMART D-ZOOM | | | | Operating Conditions | -40 to 140°F (-40 to 60°C) | | Humidity | ≤90%, non-condensing | | Power Supply | 12 VDC, 24 VAC | | Maximum Power Consumption | 12 W | | IP Rating | IP66 | | IR Range | Up to 130' (40 m) | | Communication | Up the coax
Protocol: HIKVISION-C | | Dimensions | 3.6 x 3.3 x 10.6" (92 x 85 x 270 mm) | | Weight | 1.5 lb (0.7 kg) | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 11.1 x 5.15 x 4.9" |
