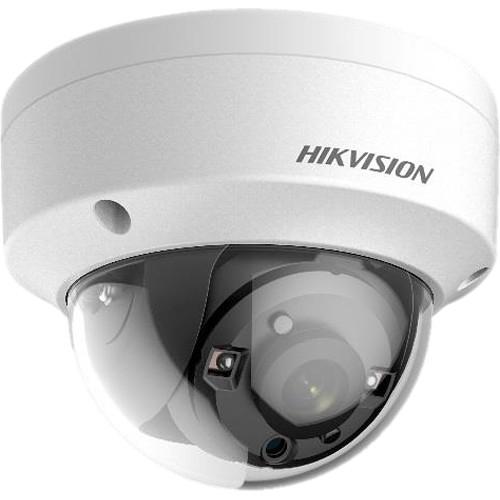

User Manual for Hikvision TurboHD Series 2MP 1080p Outdoor Vandal-Resistant EXIR Dome Camera Click to enlarge the picture
Contents of the user manual for the Hikvision TurboHD Series 2MP 1080p Outdoor
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision TurboHD Series 2MP 1080p Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The TurboHD Series 2MP 1080p Outdoor Vandal-Resistant EXIR Dome Camera from Hikvision provides HD analog output up to 1080p. The analog signal can be sent over existing RG6 coaxial cable, eliminating the need for new cables. The camera's 2MP CMOS image sensor offers 1928 x 1088 resolution at 30 fps, and the 2.8-12mm varifocal lens produces a 35.1° to 114.5° field of view for a wide coverage area.The integrated mechanical IR cut filter enables true Day/Night functionality, and built-in IR LEDs provide up to 131' of night vision in total darkness. The camera also features a range of Smart functions, including line crossing, intrusion, and region entrance and exit; benefiting users with improvements on security efficiency and with key events and objects being recorded for further forensic needs. - Analog HD output, up to 1080p resolution
- 2.8 to 12mm motorized varifocal lens
- OSD (On-Screen Display), DNR (Digital Noise Reduction), Smart IR
- True WDR (Wide Dynamic Range) up to 120 dB
- EXIR technology; up to 131' (40m) IR range
- IP66 weather-resistant and IK10 vandal-resistant
- Up the Coax (HIKVISION-C protocol)
UPC: 813908026955 In the Box Hikvision TurboHD Series 2MP 1080p Outdoor Vandal-Resistant EXIR Dome Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision TurboHD Series 2MP 1080p Outdoor Vandal-Resistant EXIR Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE56D7TAVPIT3Z Specs | | | Image Sensor | 2 MP CMOS | | Signal System | PAL / NTSC | | Effective Pixels (H x V) | 1928 x 1088 | | Minimum Illumination | 0.01 lux @ f/1.2 (AGC ON)
0 lux with IR | | Shutter Time | 1/25 (1/30) to 1/50,000 seconds | | Lens | 2.8-12mm @ f/1.2 | | Angle of View | 35.1° to 114.5° | | Lens Mount | φ14 | | Angle Adjustment | Pan: 0 to 340°
Tilt: 0 to 75°
Rotation: 0 to 355° | | Day/Night | ICR (Infrared Cut Filter) | | IR Range | Up to 131' / 40 m | | Video Frame Rate | 1080p @ 25/30 fps | | HD Video Output | 1 x Analog HD output | | S / N Ratio | More than 62 dB | | | | AGC (Automatic Gain Control) | Supported | | Day/Night Mode | Color / B&W / Smart | | Backlight | Supported | | Functions | Wide dynamic range, digital noise reduction, mirror, smart IR | | | | Working Temperature | -40 to 140°F / -40 to 60°C | | Humidity | 90% or less (non-condensing) | | Power Supply | 24 VAC ±15%, 12 VDC ±15% | | Power Consumption | Maximum 6.5 W | | Ingress protection | IP66 | | Impact Protection | IK10 | | Communication | Up the Coax
Protocol: HIKVISION-C (TVI output) | | Dimensions | Ø5.7 x 4.9" / Ø144.7 x 124.4 mm | | Weight | 3.53 lb / 1.6 kg | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 9.8 x 8.7 x 7.7" |
