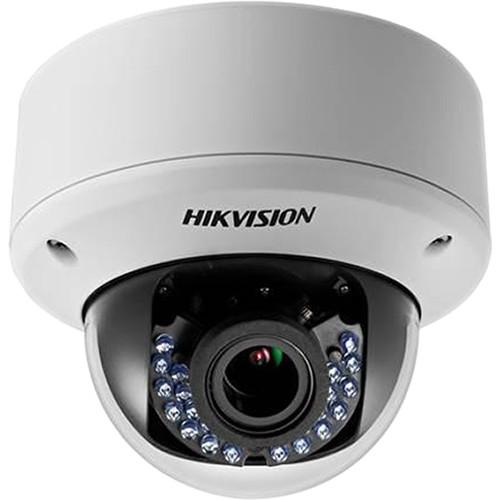

User Manual for Hikvision TurboHD Series 2MP Outdoor HD-TVI Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision TurboHD Series 2MP Outdoor HD-TVI
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision TurboHD Series 2MP Outdoor HD-TVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The white TurboHD Series 2MP Outdoor HD-TVI Dome Camera with Night Vision from Hikvision uses HD-TVI technology and a 1/3" progressive scan CMOS sensor to capture 1080p video at up to 30 fps over standard coax cable. Its 2.8-12mm varifocal lens provides a wide, 102-35° field of view to monitor medium-sized areas. The IR cut filter and IR LEDs provide up to 131' of night vision for 24-hour surveillance. Automatic gain control, backlight compensation, and digital noise reduction settings enable you to capture clear images in varying lighting conditions. The camera is housed in an IP66-rated enclosure for protection against dust and water, making it suitable for outdoor use. - HD-TVI technology allows for high-definition resolution over standard coax cable
- 1/3" progressive scan CMOS sensor captures 1920 x 1080 resolution video at up to 30 fps
- 2.8-12mm varifocal lens has a 102-35° field of view
- Smart IR LEDs offer up to 131' of night vision
- 3-axis angle adjustments for 0 to 355° pan, 0 to 90° tilt, and 0 to 355° rotation
- OSD menu controlled via UTC (up the coax)
- Automatic gain control, backlight compensation, and digital noise reduction
- IP66-rated enclosure for outdoor use
UPC: 813908020670 In the Box Hikvision TurboHD Series 2MP Outdoor HD-TVI Dome Camera with Night Vision (White) Limited 3-Year Warranty Brochure PDF 617.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision TurboHD Series 2MP Outdoor HD-TVI Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE56D1T-AVPIR3 Specs | | | Image Sensor | 1/3" progressive scan CMOS sensor | | Signal System | NTSC/PAL | | Effective Pixels | 1920 x 1080 | | Minimum Illumination | 0.01 lux at f/1.2 with AGC on
0 lux with IR | | Shutter Time | 1/25 (1/30) to 1/50,000 sec | | Lens | 2.8-12mm at f/1.4 | | Angle of View | 102-35° | | Lens Mount | φ14 | | Angle Adjustment | Pan: 0 to 355°
Tilt: 0 to 90°
Rotation: 0 to 355° | | Video Frame Rate | 1080p at 25/30 fps | | Day/Night | IR cut filter | | IR Range | Up to 131' (40 m) | | HD Video Output | BNC output | | Synchronization | Internal synchronization | | S / N Ratio | >52 dB | | | | Camera ID | On, off (0 to 254) | | Day/Night Mode | Color, B&W, EXT | | Motion Detection | On, off, maximum 4 zones | | Backlight Compensation | On, off | | AGC (Automatic Gain Control) | Supported | | Anti-Flicker | On, off | | Functions | Digital noise reduction, mirror | | Language | English and Chinese | | | | Working Temperature | -40 to 140°F (-40 to 60°C) | | Humidity | ≤90% (non-condensing) | | Power Supply | 12 VDC ±10%
24 VAC ±10% | | Maximum Power Consumption | 4 W | | IP Rating | IP66 | | Dimensions | 5.7 x 4.9" (145 x 124 mm) | | Weight | 2 lb (0.9 kg) | | | | Package Weight | 2.775 lb | | Box Dimensions (LxWxH) | 10.0 x 8.7 x 7.6" |
