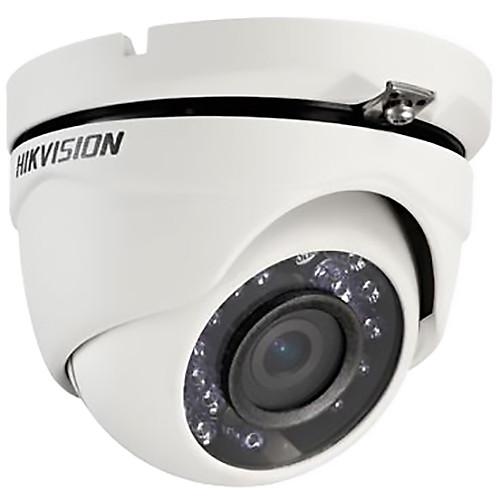

User Manual for Hikvision TurboHD Series 2MP Outdoor HD-TVI Turret Camera with Night Vision and 3.6mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision TurboHD Series 2MP Outdoor HD-TVI
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision TurboHD Series 2MP Outdoor HD-TVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The white TurboHD Series 2MP Outdoor HD-TVI Turret Camera with Night Vision and 3.6mm Lens (White) from Hikvision features a 2MP CMOS sensor to capture 1080p video at up to 30 fps over standard coax cable thanks to HD-TVI technology. Its 3.6mm lens has a 90° field of view to monitor medium-sized outdoor areas. With built-in IR LEDs, this camera can capture clear images of objects up to 66' away in complete darkness. The camera is housed in an IP66-rated enclosure to protect it from dust and water. - Captures 1080p video at up to 30 fps using standard coax cable and HD-TVI technology
- IR cut filter and IR LEDs for night vision up to 66'
- 3-axis angle adjustments during installation
- IP66-rated enclosure for outdoor use
UPC: 813908020922 In the Box Hikvision TurboHD Series 2MP Outdoor HD-TVI Turret Camera with Night Vision and 3.6mm Lens (White) Limited 3-Year Warranty Brochure PDF 457.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision TurboHD Series 2MP Outdoor HD-TVI Turret Camera with Night Vision and 3.6mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE56D1T Specs | | | Sensor | 2 MP 1/3" progressive scan CMOS sensor | | Signal System | NTSC/PAL | | Effective Pixels | 1920 x 1080 | | Minimum Illumination | 0.01 lux at f/1.2 with AGC on
0 lux with IR LEDs on | | Shutter Time | 1/25 (1/30) to 1/50,000 sec | | Lens | 3.6mm | | Field of View | 90° | | Lens Mount | M12 | | Angle Adjustment | Pan: 0 to 360°
Tilt: 0 to 75°
Rotation: 0 to 360° | | Day & Night | IR cut filter with auto switch | | Synchronization | Internal synchronization | | Video Frame Rate | 1920 x 1080 at 25/30 fps | | Video Output | 1 x BNC output | | S/N Ratio | >52 dB | | | | Camera ID | On, off (0-254) | | Motion Detection | On, off (maximum 4 zones) | | BLC | Supported | | AGC | Supported | | Anti-Flicker | On, off | | Language | English, Chinese | | Functions | Digital Noise Reduction (DNR), mirror | | | | Power Supply | 12 VDC ±10% | | Maximum Power Consumption | 3 W | | IP Rating | IP66 | | Night Vision Range | Up to 66' (20 m) | | Operating Temperature | -40 to 140°F (-40 to 60°C) | | Humidity | <90%, non-condensing | | Dimensions | 3.5 x 2.3" (90 x 59 mm) | | Weight | 0.53 lb (0.24 kg) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 4.5 x 4.5 x 3.4" |
