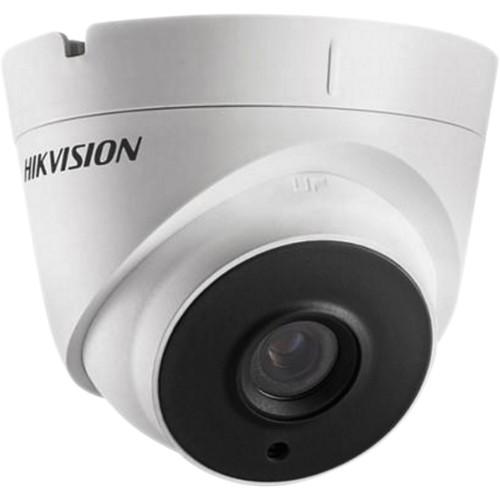

User Manual for Hikvision TurboHD Series 2MP Outdoor Turret Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision TurboHD Series 2MP Outdoor Turret
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision TurboHD Series 2MP Outdoor Turret contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description Use standard coaxial cable to receive high-quality video from the TurboHD Series 2MP Outdoor Turret Camera with Night Vision from Hikvision. The IP66-rated camera has a 2MP CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps and is suitable for outdoor use. An IR cut filter and EXIR IR LED technology help the camera produce clear images of objects in complete darkness up to 66' away. Its 2.8mm fixed lens has a wide, 105.8° field of view to monitor a large area. - 2MP CMOS sensor captures 1080p video at up to 30 fps
- HD video over BNC coax cable
- IR cut filter and IR LED for night vision up to 66'
- 2.8mm lens has a 105.8° field of view
- 3-axis angle adjustments for 0 to 360 pan, 0 to 75° tilt, and 0 to 360° rotation
- Backlight compensation and auto gain control enhances images for better accuracy
- IP66-rated enclosure for outdoor use
UPC: 813908020434 In the Box Hikvision TurboHD Series 2MP Outdoor Turret Camera with Night Vision Limited 3-Year Warranty Brochure PDF 779.3kbzezrzfdtrvvuxtfsyfsetxvzccqzcbuc Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision TurboHD Series 2MP Outdoor Turret Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE56D1T-IT1-2.8MM Specs | Image Sensor | 2 MP CMOS sensor | | Signal System | NTSC/PAL | | Effective Pixels | 1920 x 1080 | | Resolution | 1080p at 25/30 fps | | Minimum Illumination | 0.1 lux at f/1.2, AGC on
0 lux with IR on | | Shutter Time | 1/25 (1/30) to 1/50,000 sec | | Lens | 2.8mm | | Field of View | 105.8° | | Day/Night | IR cut filter with auto switch | | IR Range | Up to 66' (20 m) | | IR | EXIR and Smart IR technology | | Angle Adjustment | Pan: 0 to 360°
Tilt: 0 to 75°
Rotation: 0 to 360° | | Synchronization | Internal synchronization | | Video Output | 1 x BNC coax for HD | | S/N Ratio | >62 dB | | Backlight Compensation | On, off | | AGC (Automatic Gain Control) | Supported | | OSD Menu | Controllable via up-the-coax (UTC) | | Language | English, Chinese | | Working Temperature | -40 to 140°F (-40 to 60°C) | | Humidity | ≤90%, non-condensing | | Power Supply | 12 VDC ±10% | | Maximum Power Consumption | 4 W | | IP Rating | IP66 | | Dimensions | 4.3 x 3.7" (110 x 93.2 mm) | | Weight | 0.8 lb (350 g) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 5.4 x 5.3 x 4.4" |
