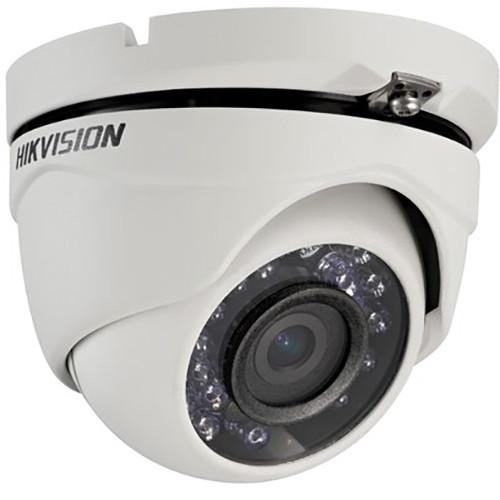

User Manual for Hikvision TurboHD Series 720p Outdoor HD-TVI Turret Camera with 2.8mm Lens and Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision TurboHD Series 720p Outdoor HD-TVI
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision TurboHD Series 720p Outdoor HD-TVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The TurboHD Series 720p Outdoor HD-TVI Turret Camera with 2.8mm Lens and Night Vision from Hikvision can capture 720p video over standard coax cable thanks to HD-TVI technology, allowing you to use existing cables. It features a 1/3" CMOS image sensor and utilizes a 2.8mm lens to capture a 99.73° field of view. Adjust the camera's direction during installation using the 3-axis angle adjustment in order to monitor the desired area. A mechanical IR cut filter and IR LEDs provide night vision in complete darkness at a range of up to for 24/7 surveillance. The camera is housed in an IP66-rated enclosure for protection against dust and water, making it suitable for outdoor use. - 1/3" progressive scan CMOS sensor captures 1280 x 720 resolution video at up to 30 fps
- 2.8mm fixed lens has a 99.73° field of view
- IR LEDs for night vision up to 65'
- IP66-rated for outdoor use
UPC: 816783018251 In the Box Hikvision TurboHD Series 720p Outdoor HD-TVI Turret Camera with 2.8mm Lens and Night Vision Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision TurboHD Series 720p Outdoor HD-TVI Turret Camera with 2.8mm Lens and Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Hikvision TurboHD Series 720p Outdoor HD-TVI Turret Camera with 2.8mm Lens and Night Vision can be downloaded in PDF format at the link stated below.
Technical parametersHikvision DS-2CE56C2T-IRM-2.8MM Specs | | | Image Sensor | 1/3" progressive scan CMOS sensor | | Effective Pixels | 1280 x 720 | | Resolution | 1280 x 720 at 25/30 fps | | Minimum Illumination | 0.043 lux @ f/2.5 (AGC on)
0 lux with IR | | Day/Night | Mechanical IR cut filter | | IR Range | Up to 65.6' (20 m) | | Shutter Speed | 1/30 to 1/50,000 sec | | Digital Noise Reduction | DNR | | | | Lens Mount | M12 | | Lens Type | 2.8mm fixed | | Field of View | 99.73° | | Synchronization | Internal | | | | Video Output | BNC coax | | S/N Ratio | > 52 dB | | Power Supply | 12 VDC ± 10% | | Power Consumption | Max 3.5 W | | Ingress Protection | IP66 | | Operating Temperature | -40 to 140°F (-40 to 60°C) | | Humidity | < 90%, non-condensing | | Dimensions | 3.53 x 2.33" (89.6 x 59.1 mm) | | Weight | 0.88 lb (400 g) | | | | Package Weight | 0.725 lb | | Box Dimensions (LxWxH) | 4.45 x 4.45 x 3.25" |
