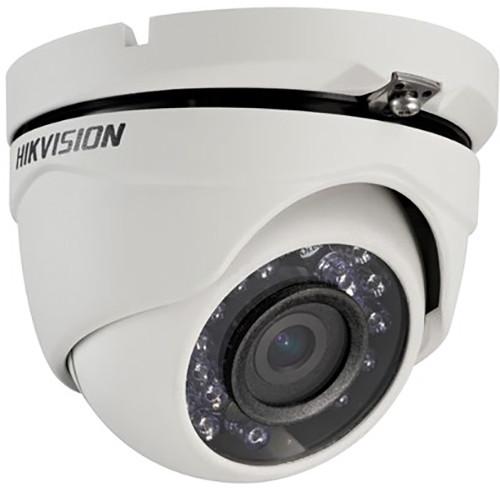

User Manual for Hikvision TurboHD Series 720p Outdoor HD-TVI Turret Camera with 6mm Lens and Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision TurboHD Series 720p Outdoor HD-TVI
- Product category: Wired Analog & HD Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired Analog & HD Cameras
|
User manual for the Hikvision TurboHD Series 720p Outdoor HD-TVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The TurboHD Series 720p Outdoor HD-TVI Turret Camera with 6mm Lens and Night Vision from Hikvision can capture 720p video over standard coax cable thanks to HD-TVI technology, allowing you to use existing cables. It features a 1/3" CMOS image sensor and utilizes a 6mm lens to capture a 50.1° field of view. Adjust the camera's direction during installation using the 3-axis angle adjustment in order to monitor the desired area. A mechanical IR cut filter and IR LEDs provide night vision in complete darkness at a range of up to for 24/7 surveillance. The camera is housed in an IP66-rated enclosure for protection against dust and water, making it suitable for outdoor use. - 1/3" progressive scan CMOS sensor captures 1280 x 720 resolution video at up to 30 fps
- 6mm fixed lens has a 50.1° field of view
- IR LEDs for night vision up to 65'
- IP66-rated for outdoor use
UPC: 816783018909 In the Box Hikvision TurboHD Series 720p Outdoor HD-TVI Turret Camera with 6mm Lens and Night Vision Limited 3-Year Warranty Brochure PDF 470.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision TurboHD Series 720p Outdoor HD-TVI Turret Camera with 6mm Lens and Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CE56C2T-IRM-6MM Specs | | | Image Sensor | 1/3" progressive scan CMOS sensor | | Effective Pixels | 1280 x 720 | | Resolution | 1280 x 720 at 25/30 fps | | Minimum Illumination | 0.043 lux @ f/2.5 (AGC on)
0 lux with IR | | Day/Night | Mechanical IR cut filter | | IR Range | Up to 65.6' (20 m) | | Shutter Speed | 1/30 to 1/50,000 sec | | Digital Noise Reduction | DNR | | | | Lens Mount | M12 | | Lens Type | 6mm fixed | | Field of View | 50.1° | | Synchronization | Internal | | | | Video Output | BNC coax | | S/N Ratio | > 52 dB | | Power Supply | 12 VDC ± 10% | | Power Consumption | Max 3.5 W | | Ingress Protection | IP66 | | Operating Temperature | -40 to 140°F (-40 to 60°C) | | Humidity | < 90%, non-condensing | | Dimensions | 3.53 x 2.33" (89.6 x 59.1 mm) | | Weight | 0.88 lb (400 g) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 4.5 x 4.4 x 3.4" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 58 owners. Add your rating and experience with the product.
