Hikvision TurboHD Series 8-Channel 5MP HD-TVI

Search your instruction manual in PDF to download

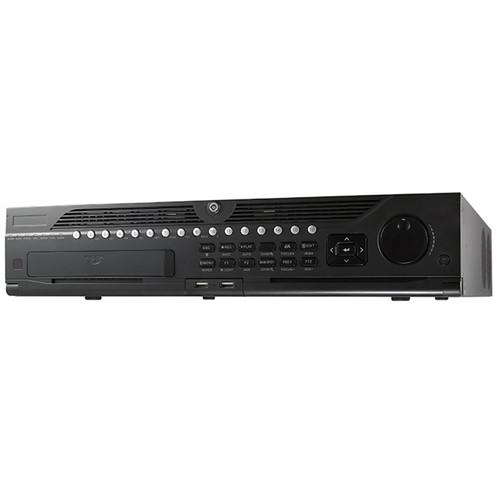

User Manual for Hikvision TurboHD Series 8-Channel 5MP HD-TVI Hybrid DVR with 10TB HDD

Click to enlarge the picture
Hikvision TurboHD Series 8-Channel 5MP HD-TVI Hybrid DVR with 10TB HDD Contents of the user manual for the Hikvision TurboHD Series 8-Channel 5MP HD-TVI
  • Product category: Digital Video Recorders (DVRs) Hikvision
  • Brand: Hikvision
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Hikvision Digital Video Recorders (DVRs)

User manual for the Hikvision TurboHD Series 8-Channel 5MP HD-TVI contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Hikvision product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!



Product description

The TurboHD Series 8-Channel 5MP DVR from Hikvision supports up to eight video inputs from HD-TVI, CVBS, and IP cameras. Equipped with eight HDD ports, each of which can hold an HDD up to 8TB, the recorder can accommodate up to 64TB of internal storage (10TB preinstalled). The DVR plays back video at up to 5MP resolution in real time. It uses H.265+ compression technology, which improves recording efficiency and reduces data storage costs. The system features audio input and output interfaces.
  • Video analytics include line crossing, intrusion, scene change detection, people counting, heat maps, and Video Quality Diagnostics (VQD)
  • HDD hot-swap support for RAID 0, 1, 5, 6, and 10
  • Full-channel recording at up to 5MP
  • HDMI-1 and VGA output up to 1920 x 1080
  • HDMI-2 output up to 4K UHD (3840 x 2160)
  • Long-range transmission over coax
  • 8-channel synchronous playback
In the Box Hikvision TurboHD Series 8-Channel 5MP HD-TVI Hybrid DVR with 10TB HDD
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Hikvision TurboHD Series 8-Channel 5MP HD-TVI Hybrid DVR with 10TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Hikvision DS-9008HUI-K8 Specs

    Video Compression H.265+, H.265, H.264+, and H.264
    Analog Video Input 8 x BNC interfaces (1 V p-p, 75 Ohms)
    HD-TVI Input 5 MP, 4 MP, 3 MP, 1080p, 720p
    CVBS Input Supported
    IP Video Inputs 10 channels, up to 18 channels with analog channels disabled
    Up to 12 MP resolution
    Supports H.265+, H.265, H.264+, and H.264 IP cameras
    Network Bandwidth 260 Mb/s
    Audio Compression G.711u
    Audio Input 8 x RCA (2 V p-p, 1 kOhm)
    CVBS Output 1 x BNC (1 V p-p, 75 Ohms)
    Resolution: 704 x 576 PAL
    704 x 480 NTSC
    HDMI / VGA Output 1 channel, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 at 60 Hz
    HDMI Output 1 channel, 4K UHD (3840 x 2160) at 30 Hz, 2K (2560 x 1440), 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 at 60 Hz
    Video Loop Output Supported
    Encoding Resolutions 5 MP, 4 MP, 3 MP, 1080p, 720p, WD1, 4CIF, VGA, and CIF
    Frame Rate Main Stream: 5 MP at 12 fps, 4 MP at 15 fps, 3 MP at 18 fps, 1080p/720p/WD1/4CIF/VGA/CIF at 25 fps (PAL) / 30 fps (NTSC)
    Sub-Stream: WD1/4CIF/CIF at 25 fps (PAL) / 30 fps (NTSC)
    Video Bit Rate 32 kb/s to 6 Mb/s
    Audio Output 2 x RCA (Linear, 1 kOhm)
    Audio Bit Rate 64 kb/s
    Dual Stream Supported
    Stream Type Video, video and audio
    Synchronous Playback Eight channels
    Remote Connections 128
    Network Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, and SNMP
    SATA 8 x SATA interfaces
    eSATA Supported
    Capacity Up to 8 TB capacity for each SATA interface
    10 TB preinstalled
    Two-Way Audio Input 1 x RCA (2 V p-p, 1 kOhm), independent
    Network Interface 2 x RJ45, 10M/100M/1000M self-adaptive Ethernet interface
    USB Interface 2 x USB 2.0, front
    1 x USB 3.0 rear
    Serial Interface 1 x RS-232
    1 x RS-485
    Alarm In/Out 16/8
    Power Supply 100 to 240 VAC
    Power Consumption ≤45 W
    Operating Temperature 14 to 131°F / -10 to 55°C
    Operating Humidity 10 to 90%
    Dimensions 17.5 x 18.5 x 3.5" / 44.5 x 47.0 x 9.0 cm
    Weight 17.6 lb / 8 kg
