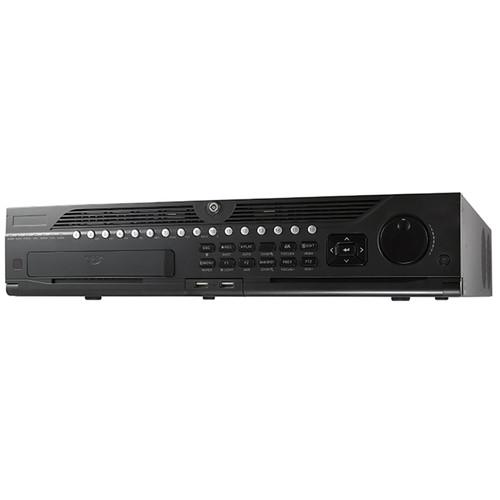

User Manual for Hikvision TurboHD Series 8-Channel 5MP HD-TVI Hybrid DVR with 48TB HDD Click to enlarge the picture
Contents of the user manual for the Hikvision TurboHD Series 8-Channel 5MP HD-TVI
- Product category: Digital Video Recorders (DVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Digital Video Recorders (DVRs)
|
User manual for the Hikvision TurboHD Series 8-Channel 5MP HD-TVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The TurboHD Series 8-Channel 5MP DVR from Hikvision supports up to eight video inputs from HD-TVI, CVBS, and IP cameras. Equipped with eight HDD ports, each of which can hold an HDD up to 8TB, the recorder can accommodate up to 64TB of internal storage (48TB preinstalled). The DVR plays back video at up to 5MP resolution in real time. It uses H.265+ compression technology, which improves recording efficiency and reduces data storage costs. The system features audio input and output interfaces. - Video analytics include line crossing, intrusion, scene change detection, people counting, heat maps, and Video Quality Diagnostics (VQD)
- HDD hot-swap support for RAID 0, 1, 5, 6, and 10
- Full-channel recording at up to 5MP
- HDMI-1 and VGA output up to 1920 x 1080
- HDMI-2 output up to 4K UHD (3840 x 2160)
- Long-range transmission over coax
- 8-channel synchronous playback
In the Box Hikvision TurboHD Series 8-Channel 5MP HD-TVI Hybrid DVR with 48TB HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision TurboHD Series 8-Channel 5MP HD-TVI Hybrid DVR with 48TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-9008HUI-K8 Specs | | | Video Compression | H.265+, H.265, H.264+, and H.264 | | Analog Video Input | 8 x BNC interfaces (1 V p-p, 75 Ohms) | | HD-TVI Input | 5 MP, 4 MP, 3 MP, 1080p, 720p | | CVBS Input | Supported | | IP Video Inputs | 10 channels, up to 18 channels with analog channels disabled
Up to 12 MP resolution
Supports H.265+, H.265, H.264+, and H.264 IP cameras | | Network Bandwidth | 260 Mb/s | | Audio Compression | G.711u | | Audio Input | 8 x RCA (2 V p-p, 1 kOhm) | | | | CVBS Output | 1 x BNC (1 V p-p, 75 Ohms)
Resolution: 704 x 576 PAL
704 x 480 NTSC | | HDMI / VGA Output | 1 channel, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 at 60 Hz | | HDMI Output | 1 channel, 4K UHD (3840 x 2160) at 30 Hz, 2K (2560 x 1440), 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 at 60 Hz | | Video Loop Output | Supported | | Encoding Resolutions | 5 MP, 4 MP, 3 MP, 1080p, 720p, WD1, 4CIF, VGA, and CIF | | Frame Rate | Main Stream: 5 MP at 12 fps, 4 MP at 15 fps, 3 MP at 18 fps, 1080p/720p/WD1/4CIF/VGA/CIF at 25 fps (PAL) / 30 fps (NTSC)
Sub-Stream: WD1/4CIF/CIF at 25 fps (PAL) / 30 fps (NTSC) | | Video Bit Rate | 32 kb/s to 6 Mb/s | | Audio Output | 2 x RCA (Linear, 1 kOhm) | | Audio Bit Rate | 64 kb/s | | Dual Stream | Supported | | Stream Type | Video, video and audio | | Synchronous Playback | Eight channels | | | | Remote Connections | 128 | | Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, and SNMP | | | | SATA | 8 x SATA interfaces | | eSATA | Supported | | Capacity | Up to 8 TB capacity for each SATA interface
48 TB preinstalled | | | | Two-Way Audio Input | 1 x RCA (2 V p-p, 1 kOhm), independent | | Network Interface | 2 x RJ45, 10M/100M/1000M self-adaptive Ethernet interface | | USB Interface | 2 x USB 2.0, front
1 x USB 3.0 rear | | Serial Interface | 1 x RS-232
1 x RS-485 | | Alarm In/Out | 16/8 | | | | Power Supply | 100 to 240 VAC | | Power Consumption | ≤45 W | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10 to 90% | | Dimensions | 17.5 x 18.5 x 3.5" / 44.5 x 47.0 x 9.0 cm | | Weight | 17.6 lb / 8 kg |
