User Manual for Hikvision TurboHD Tribrid 16-Channel 3MP DVR with 4TB HDD Click to enlarge the picture
Contents of the user manual for the Hikvision TurboHD Tribrid 16-Channel 3MP DVR
- Product category: Digital Video Recorders (DVRs) Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Digital Video Recorders (DVRs)
 |
User manual for the Hikvision TurboHD Tribrid 16-Channel 3MP DVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|

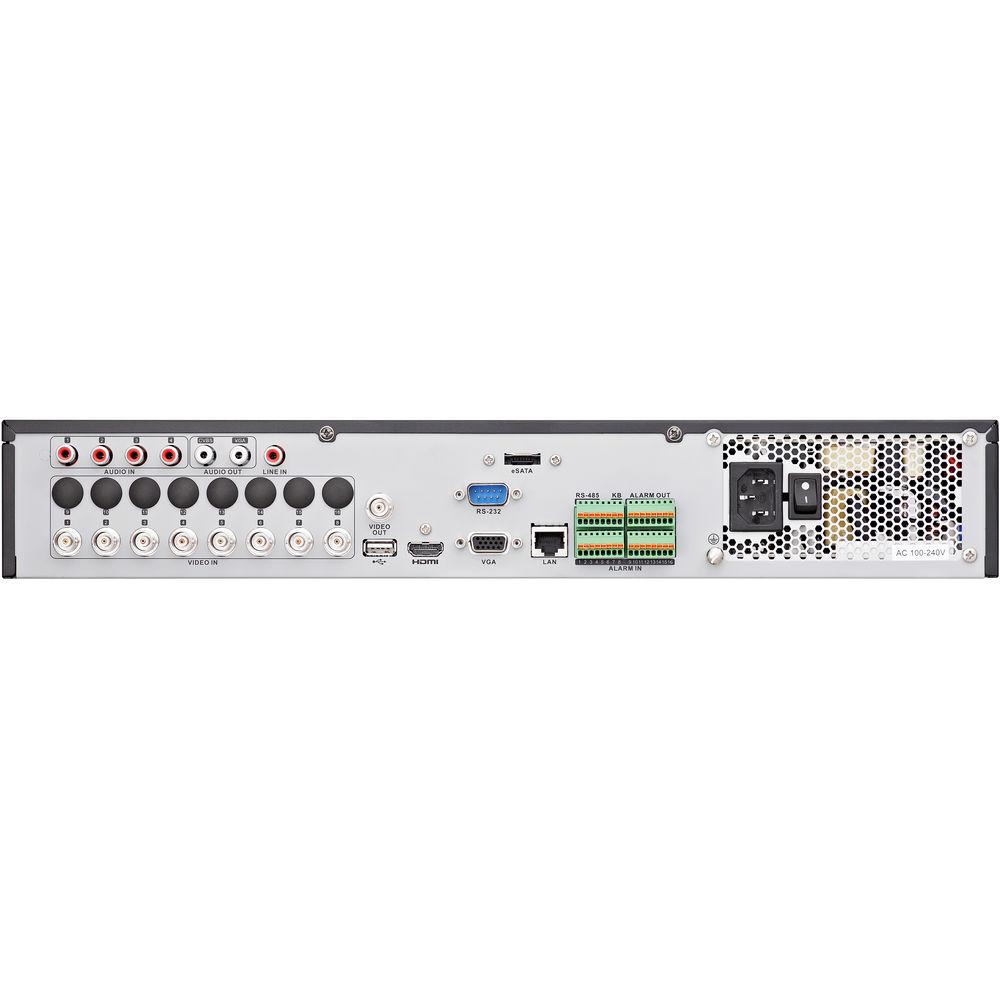

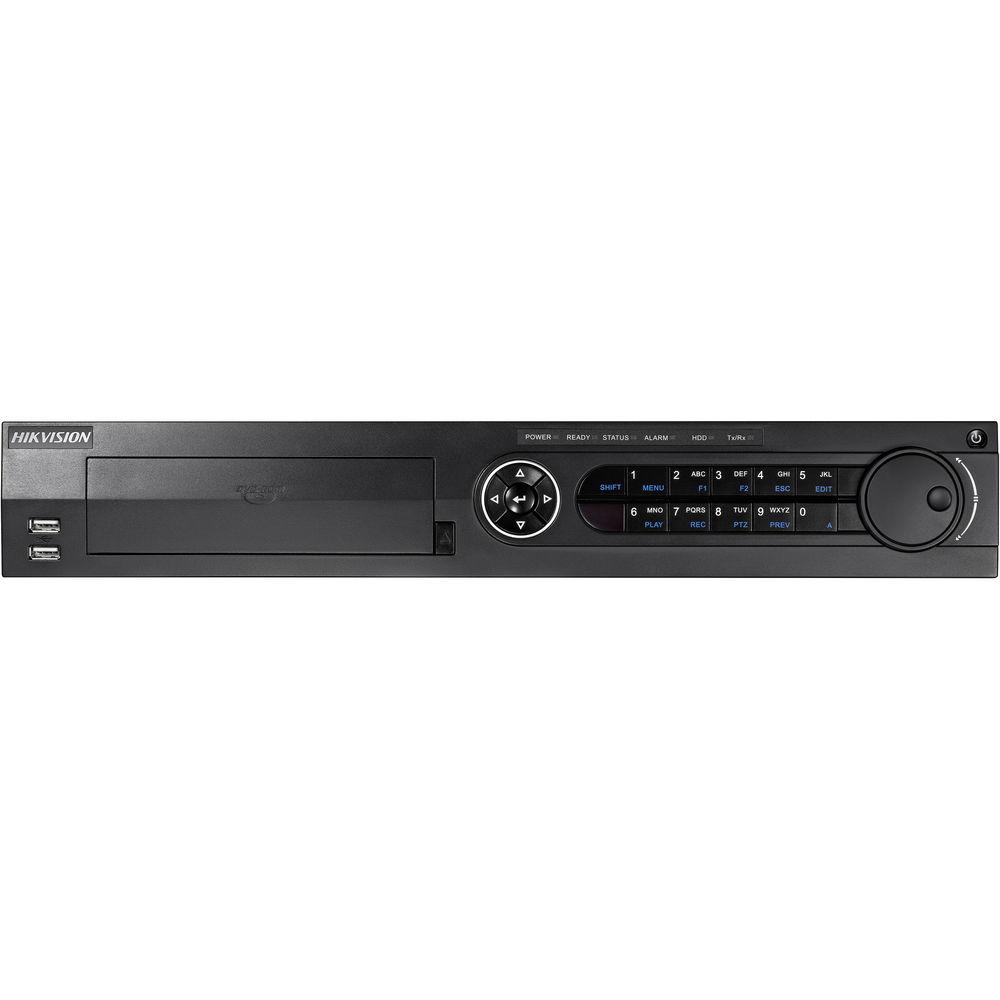

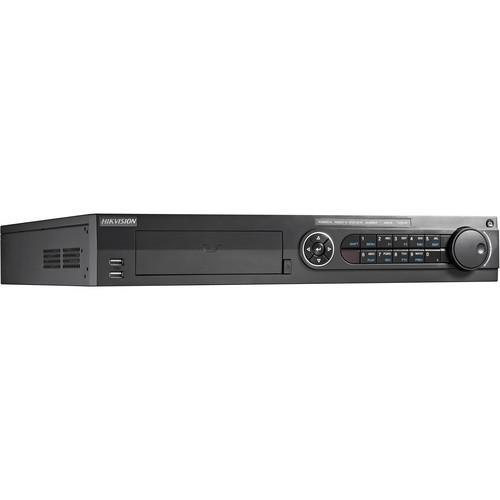

Product description The TurboHD Tribrid 16-Channel 3MP DVR with 4TB HDD from Hikvision enables you to record from and manage up to 16 cameras. This DVR offers full channel recording at up to 3MP resolution. It comes with a 4TB HDD preinstalled. Storage is expandable to four SATA HDDs each with a maximum 6TB capacity, for a total of 24TB. A BNC interface supports HD-TVI and analog cameras, and a self-adaptive Ethernet interface supports IP cameras up to 8MP. H.265+, H.265, H.264+, and H.264 video compression keep file sizes manageable while maintaining quality.
An RCA connector offers two-way audio communication. In addition, there are two HDMI and VGA connections for video output with support for dual streaming to maximize bandwidth efficiency. The second HDMI connection can output up to 4K UHD resolution video. - Full channel recording at up to 3MP resolution
- 16-channel synchronous playback support
- Supports IP cameras up to 8MP
- Supports analytics, such as line crossing, intrusion, scene change detection, people counting, heat map functionality, and Video Quality Diagnostics (VQD)
- 2 x USB 2.0 and 1 x USB 3.0 port
- 16 alarm inputs and 4 alarm outputs
- Self-adaptive Ethernet interface
UPC: 842571104981 In the Box Hikvision TurboHD Tribrid 16-Channel 3MP DVR with 4TB HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision TurboHD Tribrid 16-Channel 3MP DVR with 4TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-7316HUHI-F4/N Specs | | | Video Compression | H.264+, H.264, H.265, H.265+ | | Analog Video Inputs | 16
BNC interface (1.0 V p-p, 75 Ohms), supporting UTC (Up-the-Coax) connection | | HD-TVI Input | 3 MP, 1920 x 1080 at 30 fps, 1920 x 1080 at 25 fps, 1280 x 720 at 60 fps, 1280 x 720 at 50 fps, 1280 x 720 at 30 fps, 1280 x 720 at 25 fps | | AHD Input | 1920 x 1080 at 30 fps, 1920 x 1080 at 25 fps, 1280 x 720 at 30 fps, 1280 x 720 at 25 fps | | CVBS Input | Supported | | IP Video Inputs | 2 (up to 18)
Up to 8 MP resolution
Supports H.265, H.264+, H.264 network cameras | | Network Bandwidth | 260 Mb/s | | Audio Compression | G.711u | | Audio Input | 4-channel, RCA 2.0 V p-p, 1 kOhm | | CVBS Output | 1-channel, BNC 1.0 V p-p, 75 Ohms
Resolution:
NTSC: 704 x 480
PAL: 704 x 576 | | HDMI/VGA Output | HDMI1/VGA Output:
1 Channel at 60 Hz: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
HDMI2/VGA Output:
1 Channel at 30 Hz: 3840 x 2160 (4K UHD)
1 Channel at 60 Hz: 2560 x 1440 (2K), 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Encoding Resolutions | 3 MP, 1080p, 720p, WD1, 4CIF, VGA, CIF | | Frame Rate | Main Stream: 3 MP at 15 fps, 1080p/720p/WD1/4CIF/VGA/CIF at 30 fps (NTSC) / 25 fps (PAL)
Sub-Stream: WD1/4CIF at 12 fps, 1080p/720p/WD1/4CIF/VGA/CIF at 30 fps (NTSC) / 25 fps (PAL) | | Video Bit Rate | 32 kb/s to 10 Mb/s | | Audio Output | 2-channel CVBS and VGA, RCA (linear, 1 kOhm) | | Audio Bit Rate | 64 kb/s | | Dual Stream | Supported | | Stream Type | Video, video & audio | | Synchronous Playback | 16-channel | | | | Remote Connections | 128 | | Network Protocols | TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, SNMP | | | | SATA | 4 SATA interfaces | | eSATA | Supported | | Capacity | Up to 6 TB capacity for each disk (4 TB HDD preinstalled) | | | | Two-Way Audio Input | 1-channel, RCA (2.0 V p-p, 1 kOhm using the first audio input) | | Network Interface | 2 x RJ45 10/100/1000M self-adaptive Ethernet interface | | Alarm Input / Output | 16 inputs, 4 outputs | | USB Interface | Front Panel: 2 x USB 2.0
Rear Panel: 1 x USB 3.0 | | Serial Interface | RS-232, RS-485 (half-duplex), RS-485 (full-duplex), keyboard | | | | Power Supply | 100 to 240 VAC | | Power Consumption | Without HDD: ≤65 W | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10 to 90%, non-condensing | | Dimensions (W x D x H) | 17.5 x 15.4 x 2.8" / 445 x 390 x 70 mm | | Weight | ≤11 lb / 5 kg |
