Hikvision TurboHD Tribrid 16-Channel 5MP DVR

Search your instruction manual in PDF to download

User Manual for Hikvision TurboHD Tribrid 16-Channel 5MP DVR with PoC Support & 3TB HDD

Click to enlarge the picture
Hikvision TurboHD Tribrid 16-Channel 5MP DVR with PoC Support & 3TB HDD Contents of the user manual for the Hikvision TurboHD Tribrid 16-Channel 5MP DVR
  • Product category: Digital Video Recorders (DVRs) Hikvision
  • Brand: Hikvision
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Hikvision Digital Video Recorders (DVRs)

Hikvision TurboHD Tribrid 16-Channel 5MP DVR with PoC Support & 3TB HDD Hikvision TurboHD Tribrid 16-Channel 5MP DVR with PoC Support & 3TB HDD
User manual for the Hikvision TurboHD Tribrid 16-Channel 5MP DVR contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Hikvision product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!



Product description

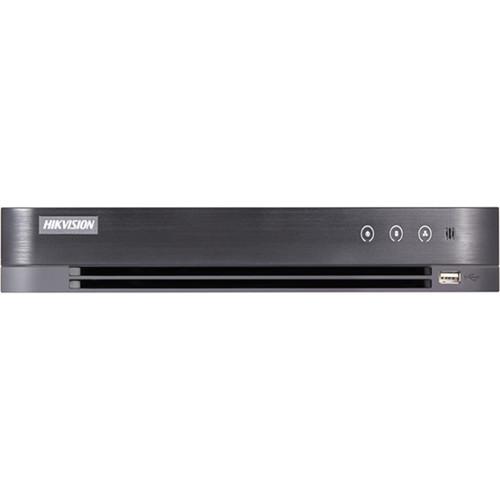

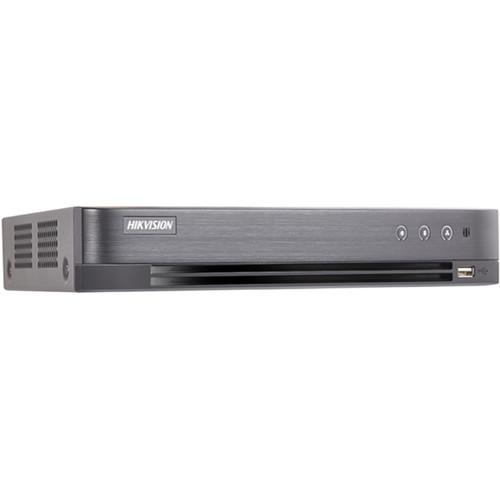

The TurboHD Tribrid 16-Channel 5MP DVR with 3TB HDD from Hikvision enables you to record from and manage up to 16 cameras. This DVR offers full channel recording at up to 5MP resolution. It comes with a 3TB HDD preinstalled. Storage is expandable to two SATA HDDs each with a maximum 8TB capacity, for a total of 16TB. A BNC interface supports HD-TVI and analog cameras, and a self-adaptive Ethernet interface supports IP cameras up to 6MP on two channels. H.265+, H.265, H.264+, and H.264 video compression keep file sizes manageable while maintaining quality.

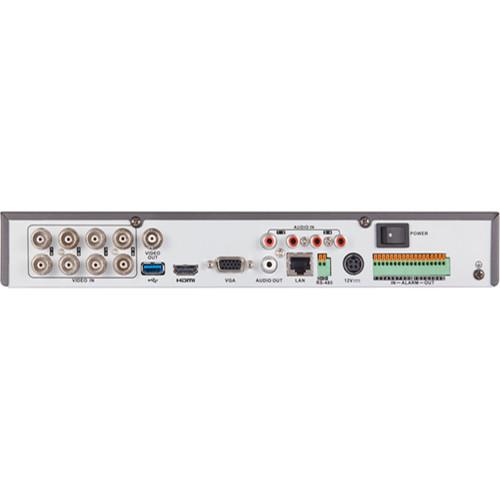

An RCA connector offers two-way audio communication. In addition, there are HDMI and VGA connections for video output with support for dual streaming to maximize bandwidth efficiency. The HDMI connection can output up to 4K UHD resolution video. This digital video recorder can supply power over coaxial (PoC) cables to compatible cameras, allowing you to transmit power and receive video over a single cable.
  • Full channel recording at up to 5MP resolution
  • 16-channel synchronous playback support
  • Supports up to 6MP IP cameras on two channels
  • Supports H.265+, H.265, H.264+, and H.264 IP cameras
  • Dual stream support
  • Supports long-distance transmission over coaxial cable to a maximum of 3940' at 720p and 2630' at 1080p
  • Simultaneous HDMI & VGA output
  • Separate CVBS output
  • Supports PoC cameras
  • Supports analytics, such as line crossing, intrusion, and scene change detection
  • 1 x USB 2.0 and 1 x USB 3.0 port
  • 16 alarm inputs and 4 alarm outputs
  • Self-adaptive Ethernet interface
In the Box Hikvision TurboHD Tribrid 16-Channel 5MP DVR with PoC Support & 3TB HDD
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Hikvision TurboHD Tribrid 16-Channel 5MP DVR with PoC Support & 3TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Hikvision DS-7216HUI-K2 Specs

    Video Compression H.265+, H.265, H.264+, H.264
    Analog Video Input 16
    BNC interface (1.0 V p-p, 75 Ohms), supporting coaxitron connections
    HD-TVI Input 5 MP, 4 MP, 3 MP, 1920 x 1080 at 30 fps, 1920 x 1080 at 25 fps, 1280 x 720 at 60 fps, 1280 x 720 at 50 fps, 1280 x 720 at 30 fps, 1280 x 720 at 25 fps
    CVBS Input NTSC/PAL
    IP Video Inputs 2
    Up to 6 MP resolution
    Supports H.265+, H.265, H.264+, and H.264 IP cameras
    Audio Compression G.711u
    Audio Input 4-channel RCA 2.0 V p-p, 1 kOhm
    CVBS Output 1-channel BNC 1.0 V p-p, 75 Ohms

    Resolution:
    NTSC: 704 x 480
    PAL: 704 x 576
    HDMI Output 1 Channel at 30 Hz: 3840 x 2160 (4K UHD)
    1 Channel at 60 Hz: 2560 x 1440 (2K), 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
    VGA Output 1 Channel at 60 Hz: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
    Encoding Resolutions 5 MP, 4 MP, 3 MP, 1080p, 720p, WD1, 4CIF, VGA, CIF
    Frame Rate Main Stream: 5 MP at 12 fps, 4 MP at 15 fps, 3 MP at 18 fps, 1080p/720p/WD1/4CIF/VGA/CIF at 30 fps (NTSC) / 25 fps (PAL)

    Sub Stream: WD1/4CIF/CIF at 30 fps (NTSC) / 25 fps (PAL)
    Video Bit Rate 32 kb/s to 10 Mb/s
    Audio Output 1-channel RCA (linear, 1 kOhm)
    Audio Bit Rate 64 kb/s
    Dual Stream Supported
    Stream Type Video, video and audio
    Synchronous Playback 16-channel
    Remote Connections 128
    Network Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
    SATA 2 SATA interfaces
    Capacity Up to 8 TB capacity for each disk (3 TB preinstalled)
    Two-Way Audio Input 1-channel RCA (2.0 V p-p, 1 kOhm using the first audio input)
    Network Interface 1 x RJ45 10/100/1000M self-adaptive Ethernet interface
    Serial Interface RS-485, half-duplex
    USB Interface Front Panel: 1 x USB 2.0
    Rear Panel: 1 x USB 3.0
    Alarm Input / Output 16 inputs, 4 outputs
    Power Supply 48 VDC
    Power Consumption Without HDD: ≤10 W
    Operating Temperature 14 to 131°F / -10 to 55°C
    Operating Humidity 10 to 90%
    Dimensions (W x D x H) 15 x 12.6 x 1.9" / 380 x 320 x 48 mm
    Weight Without HDD: ≤4.4 lb / 2 kg
