User Manual for Hikvision Value Series 3MP Ultra-Low Light Outdoor Network Bullet Camera with 2.8mm Fixed Lens and Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision Value Series 3MP Ultra-Low Light
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision Value Series 3MP Ultra-Low Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|

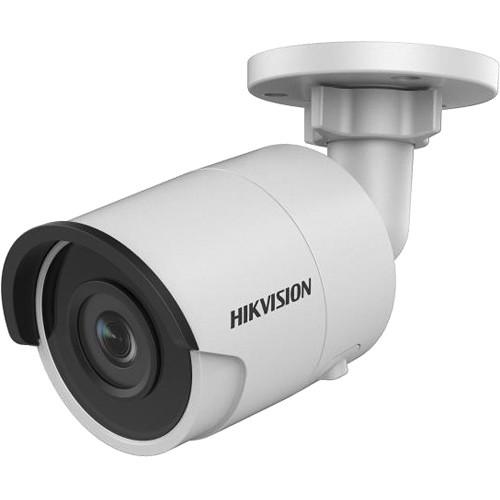

Product description The Value Series 3MP Ultra-Low Light Outdoor Network Bullet Camera from Hikvision features a 1/2.8" progressive scan CMOS sensor and a 2.8mm fixed lens to capture 2048 x 1536 resolution video at up to 30 fps. It supports H.264+, H.264, H.265+, H.265, and MJPEG compression formats with triple streaming. It also features WDR of up to 120 dB for capturing images under varied lighting conditions and a built-in microSD/SDHC/SDXC card slot (up to 128GB) for on-board storage. With an IP67-rated weather-resistant housing, this camera is suitable for outdoor applications. - Smart Features
-
- Behavior Analysis: Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
- Line Crossing Detection: Crossing of a pre-defined virtual line, up to 1 pre-defined virtual lines supported
- Intrusion Detection: Entrance and loitering in a pre-defined virtual region, up to 1 pre-defined virtual region supported
- Object Removal Detection: Objects removed from a pre-defined region, such as exhibits on display
- Unattended Baggage Detection: Objects left in a pre-defined region, such as baggage, purses, or dangerous materials
- Face Detection: Human faces can be detected and trigger linkage method
- Other Features
-
- Maximum resolution of 2048 x 1536 at 30 fps
- 2.8mm lens
- Ultra-Low Light, 0.008 lux, DarkFighter technology
- EXIR 2.0 technology with up to 100' IR range
- 120 dB WDR
- 3D-Digital Noise Reduction
- 12 VDC & PoE (802.3af)
- Supports on-board storage, up to 128GB
- IP67-rated weather-resistant
UPC: 842571101751 In the Box Hikvision Value Series 3MP Ultra-Low Light Outdoor Network Bullet Camera with 2.8mm Fixed Lens and Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision Value Series 3MP Ultra-Low Light Outdoor Network Bullet Camera with 2.8mm Fixed Lens and Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision Value Series Specs | | | Image Sensor | 1/2.8" progressive scan CMOS | | Minimum Illumination | Color: 0.008 lux at f/1.6 (AGC ON)
0 lux with IR | | Shutter Speed | 1/3 to 1/100,000 sec | | Slow Shutter | Supported | | Focal Length | 2.8mm | | Horizontal Field of View (degree) | 98° | | Lens Mount | M12 | | Iris | f/1.6 | | Day/Night | IR cut filter | | Wide Dynamic Range | 120 dB | | Digital Noise Reduction | 3D-DNR | | Angle Adjustment | Pan: 0 to 360°
Tilt: 0 to 75°
Rotation: 0 to 360° | | | | Video Compression | Main Stream: H.265+ / H.265 / H.264+ / H.264
Sub Stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
Third Stream: H.265+ / H.265 / H.264+ / H.264 | | Video Bit Rate | 32 kbps to 16 Mbps | | Type | H.264 Type: Main profile/High profile | | | | Maximum Resolution | 2048 x 1536 | | Maximum Frame Rates | Main Stream: 30 fps (2048 x 1536, 1920 x 1080, 1280 x 720)
Sub Stream: 30 fps (640 x 360, 352 x 240)
Third Stream: 30 fps (1280 x 720, 640 x 360, 352 x 240) | | Image Enhancement | BLC/3D-DNR | | Image Settings | Support rotate mode, brightness, contrast, saturation, and sharpness are adjustable via web browser and client software | | ROI | Supported (One fixed region for mainstream and sub stream separately) | | Day/Night Switching | Auto/Scheduled | | | | Network Storage | Supports microSD/SDHC/SDXC card (128 GB) local storage, NAS (NFS, SMB/CIFS), ANR | | Alarm Triggers | Motion detection, tampering alarm, network disconnected, IP address conflict, illegal login, full HDD, and HDD error | | Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 | | Standard | ONVIF (Profile S and G), PSIA, CGI, ISAPI | | Functions | One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter | | | | Communication | 1 x RJ45 10/100M self-adaptive Ethernet port | | Onboard Storage | Built-in microSD/SDHC/SDXC slot up to 128 GB | | | | Operating Temperature | -40 to 140°F (-40 to 60°C) | | Operating Humidity | <90% non-condensing | | Power Supply | 12 VDC ±25%
PoE (802.3af, class 3) | | Maximum Power Consumption | 5 W
PoE: 7 W | | IR Range | Up to 100' (30 m) | | IP Rating | IP67 | | Dimensions (Ø x L) | 2.76 x 6.1" (7.01 x 15.5 cm) | | Weight | 14.5 oz (410 g) | | | | Package Weight | 1.335 lb | | Box Dimensions (LxWxH) | 8.6 x 4.75 x 4.7" |
