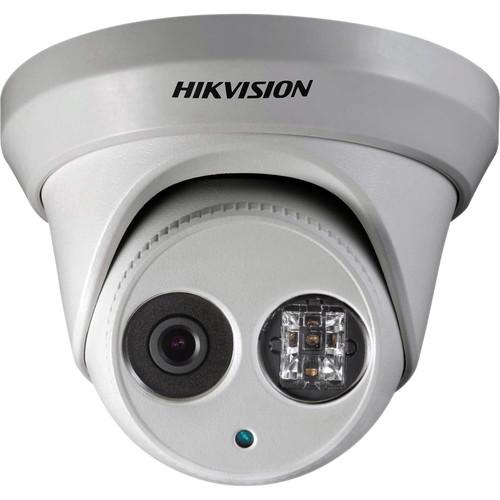

User Manual for Hikvision Value Series 5MP Outdoor Network Turret Camera with Night Vision and 4mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision Value Series 5MP Outdoor Network
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision Value Series 5MP Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The Value Series 5MP Outdoor Network Turret Camera from Hikvision has a 1/3" progressive scan CMOS sensor and a 4mm fixed lens to capture 2560 x 1920 resolution video at up to 20 fps. IR LEDs and an IR cut filter allow the camera to produce clear images in complete darkness from up to 98' away.
The camera supports H.264+, H.264, and MJPEG compression formats with simultaneous dual streaming to optimize network bandwidth while producing high-quality recordings. The RJ45 port provides Ethernet connectivity and PoE functionality to make installation quick. Digital wide dynamic range and 3D digital noise reduction allow the camera to produce accurate images in varying lighting conditions. The camera is housed in an IP67-rated enclosure for protection from dust and water, making it suitable for outdoor use. - Captures 5MP video at up to 20 fps
- IR LEDs for night vision up to 98'
- 4mm lens with 3-axis angle adjustments
- DWDR and 3D-DNR for accurate images in varying lighting conditions
- IP67-rated enclosure provides protection against dust and water
UPC: 813908025743 In the Box Hikvision Value Series 5MP Outdoor Network Turret Camera with Night Vision and 4mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision Value Series 5MP Outdoor Network Turret Camera with Night Vision and 4mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision DS-2CD2352-I-4MM Specs | | | Image Sensor | 5 MP 1/3" progressive scan CMOS sensor | | Minimum Illumination | 0.014 lux at f/1.2 with AGC on
0 lux with IR LEDs on | | Shutter Speed | 1/3 to 1/100,000 sec | | Lens | 4mm at f/2.0 | | Day/Night | IR cut filter with auto switch | | Wide Dynamic Range | DWDR | | Digital Noise Reduction | 3D-DNR | | Angle Adjustment | Pan: 0 to 355°
Tilt: 0 to 75°
Rotation: 0 to 355° | | | | Video Compression | H.264+, H.264, MJPEG | | Video Bit Rate | 256 kbps to 16 Mbps | | Dual Stream | Supported | | | | Maximum Resolution | 2560 x 1920 | | Maximum Frame Rate | 60 Hz:
20 fps at 2560 x 1920, 30 fps at 2048 x 1536, 1920 x 1080, 1280 x 720
50 Hz:
20 fps at 2560 x 1920, 25 fps at 2048 x 1536, 1920 x 1080, 1280 x 720 | | Image Settings | Rotate mode, saturation, brightness, contrast adjustable through client software or web browser | | BLC | Yes | | | | Network Storage | NAS (supports NFS, SMB/CIFS), ANR | | Alarm Triggers | Line crossing, intrusion detection, motion detection, dynamic analysis, tampering alarm, network disconnect, IP address conflict, storage exception | | Protocols | TCP/IP, ICMP, HTTP, HTTPs, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | | Security | User authentication, watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask | | Standard | ONVIF (Profile S and G), PSIA, CGI, ISAPI | | | | Communication | RJ45 10/100M Ethernet port | | | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Operating Humidity | ≤95% non-condensing | | Power Supply | 12 VDC ±10%, PoE (802.3af) | | Maximum Power Consumption | 5.5 W
7.5 W with IR | | IR Range | Up to 98.4' (30 m) | | IP Rating | IP67 | | Dimensions | 5 x 3.8" (127 x 97.5 mm) | | Weight | 1.1 lb (500 g) | | | | Package Weight | 1.69 lb | | Box Dimensions (LxWxH) | 6.0 x 6.0 x 5.6" |
