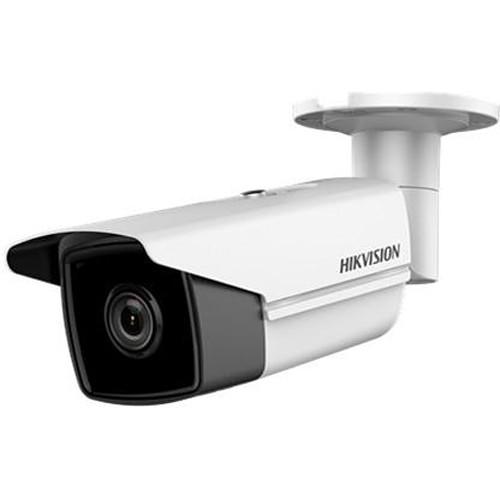

User Manual for Hikvision Value Series 8MP Outdoor Network Bullet Camera with Night Vision and 2.8mm Lens Click to enlarge the picture
Contents of the user manual for the Hikvision Value Series 8MP Outdoor Network
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision Value Series 8MP Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The 8Value Series MP Outdoor Network Bullet Camera from Hikvision features a 1/2.9" progressive scan CMOS sensor and 2.8mm fixed lens for capturing videos at a maximum resolution of 3840 x 2160. This day/night camera provides 24-hour surveillance thanks to a removable IR cut filter and built-in IR LEDs with a range of up to 165'.
Enclosed in an IP67-rated housing, the camera can be used for both indoor and outdoor applications. The camera uses the H.265+ compression codec to conserve bandwidth and storage space. In addition, EXIR 2.0 technology enhances night-time performance. Performance - Up to 8MP, 3840 x 2160 at 20 fps resolution
- Supports H.265, H.265+, H.264+, and H.264 compression
- 120 dB Wide Dynamic Range
- 3D Digital Noise Reduction
- 12 VDC and PoE (802.3af) operation
- EXIR 2.0 technology with up to 165' IR range
- microSD card slot accepts cards up to 128GB
- IP67-rated weather-resistant housing
- Other Features
- One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, and IP address filter
Smart Functions - Behavior Analysis: Line crossing, intrusion, unattended baggage, and object removal detection
- Line Crossing Detection: Cross a pre-defined virtual line
- Intrusion Detection: Entrance and loitering alerts in a pre-defined virtual region
- Object Removal Detection: Objects removed from the pre-defined region, such as exhibits on display
- Unattended Baggage Detection: Objects left in the pre-defined region, such as baggage, purses, or dangerous materials
- Face Detection: Human faces can be detected and linkage method can be triggered
UPC: 842571101935 In the Box Hikvision Value Series 8MP Outdoor Network Bullet Camera with Night Vision and 2.8mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision Value Series 8MP Outdoor Network Bullet Camera with Night Vision and 2.8mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision Value Series Specs | | | Image Sensor | 1/2.5" progressive scan CMOS | | Minimum Illumination | Color: 0.027 lux at f/2.0, AGC ON
0 lux with IR | | Shutter Speed | 1/3 to 1/100,000 sec | | Slow Shutter | Supported | | Lens | 2.8mm
HFOV: 102° | | Lens Mount | M12 | | Iris | f/1.6 | | Day/Night | IR cut filter | | DNR | 3D-DNR | | Wide Dynamic Range | 120 dB | | 3-Axis Adjustment | Pan: 0 to 360°
Tilt: 0 to 100°
Rotate: 0 to 360° | | | | Video Compression | Main Stream: H.265+ / H.265 / H.264+ / H.264
Sub Stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
Third Stream: H.265+ / H.265 / H.264+ / H.264 | | Type | H.264 Type: Main profile/high profile
H.265 Type: Main profile | | Video Bit Rate | 32 kbps to 16 Mbps | | | | Maximum Resolution | 3840 x 2160 | | Streams | Main Stream: 20 fps (3840 x 2160), 30 fps (2560 x 1920, 2560 x 1440, 1920 x 1080, 1280 x 720)
Sub Stream: 30 fps (640 x 360, 352 x 240)
Third Stream: 30 fps (1920 x 1080, 1280 x 720, 640 x 360, 352 x 240) | | Image Enhancement | BLC/3D-DNR | | Image Settings | Supports rotate mode
Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software | | ROI | Separate support for one fixed region in main and sub streams | | Day/Night Switching | Auto/Scheduled | | | | Network Storage | Support microSD/SDHC/SDXC card (128 GB), local storage, NAS (NFS, SMB/CIFS), ANR | | Alarm Triggers | Motion detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error | | Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 | | Standards | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI | | | | Communication Interface | 1 x RJ45 10M/100M self-adaptive Ethernet port | | Onboard Storage | Built-in microSD/SDHC/SDXC slot, up to 128 GB (available separately) | | | | Operating Conditions | -22 to 140°F (-30 to 60°C)
Humidity: 95% or less (non-condensing) | | Power Supply | 12 VDC ±25%, PoE (802.3af, 42.5 to 57 V, class 3) | | Power Consumption | 12 VDC ±25%, 7.5 W
PoE, 9.5 W | | IR Range | Up to 165' (50 m) | | IP Rating | IP67 | | Dimensions | 4.13 x 11.8" (105 x 299.7 mm) | | Weight | 2.65 lb (1.2 kg) | | | | Package Weight | 3.35 lb | | Box Dimensions (LxWxH) | 15.1 x 6.3 x 6.2" |
