Hikvision Value Series DS-2DE4A204IW-DE 2MP Outdoor

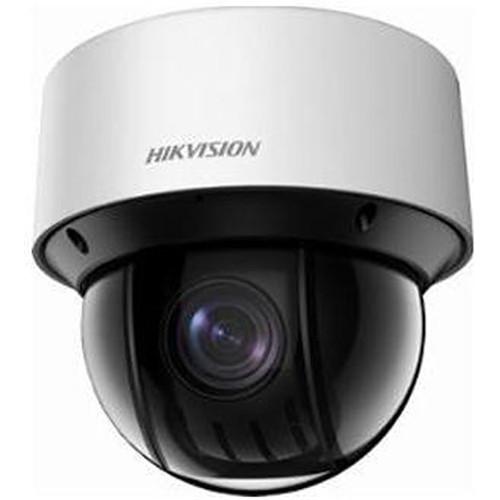

User Manual for Hikvision Value Series DS-2DE4A204IW-DE 2MP Outdoor PTZ Network Dome Camera with Night Vision

• Product category: Wired IP Cameras Hikvision
• Brand: Hikvision
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Hikvision Wired IP Cameras

Product description

• Darkfighter technology for visibility in low-light applications

• IR cut filter enables day and night functionality

• Smart IR

• H.265+, H.265, H.264+, H.264, and MJPEG video compression

• Scalable video coding (SVC) support

• 4x optical and 16x digital zoom

• Zoom speed of 2.2 seconds

• White balance modes include auto, manual, ATW, indoor, outdoor, fluorescent lamp, and sodium lamp

• Auto and manual gain control

• 3D-DNR

• Backlight and highlight compensation

• Wide dynamic range

• Regional exposure and focus

• Auto, semi-auto, and manual focus modes

• 0.4 to 59" working distance

• Analytics include intrusion, line crossing, region exiting, and region entrance detection

• 8 programmable privacy masks

• Region of interest (main stream, sub stream, and third stream respectively support two fixed areas)

• Up to 32 users with 3 host levels (admin, operator, and user)

• Up to 20 channels in simultaneous live view

• Audio I/O

• 2 alarm inputs and 2 alarm outputs

• Alarm actions include preset, patrol scan, pattern scan, memory card video record, trigger recording, notify surveillance center, upload to FTP/memory card/NAS, and send email

• 100M Ethernet

• Network-attached storage (NAS) support

• 12 VDC and PoE+ power

• Compatible with Internet Explorer 7 or higher, Chrome 18 or higher, Firefox 5 or higher, Safari 5.02 or higher, iOS, Android, iVMS-4200, iVMS-4500, and iVMS-5200

• CSA, FCC, CE, and cUL certified

• TVS 4000V lightning, surge, and voltage transient protection

PTZ Functionality
• • Endless panning
  • -5 to 90° tilt range
  • 0.1 to 300°/s pan speed, 350°/s preset speed
  • 0.1 to 160°/s tilt speed, 200°/s preset speed
  • 300 presets
  • 8 patrols (up to 32 presets per patrol)
  • 4 pattern scans (records time over 10 minutes for each scan)
  • Support for proportional zoom, power-off memory, and preset freezing
  • PTZ position display (on, off)
  • Park action includes preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, and panorama scan
  • Scheduled task includes preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, and dome adjust

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Hikvision Value Series Specs

Recording Media	microSD (Up to 128 GB)
Pan/Tilt	Remote Pan: 360° at 300°/s Remote Tilt: 95° (-5 to 90°) at 160°/s
Alarm I/O	2 / 2
I/O Connections	1 x RJ45 1 x Power
IR Range	164.04' / 50 m
Video Management Software	iVMS-4200, iVMS-4500, iVMS-5200
Internal Storage	None
External Storage Options	NAS
Power Source	DC, PoE 802.3at (30 W)
Power Consumption	18 W
Operating Temperature	-22 to 149°F / -30 to 65°C
Operating Humidity	0 to 90%
IP Rating	IP66
