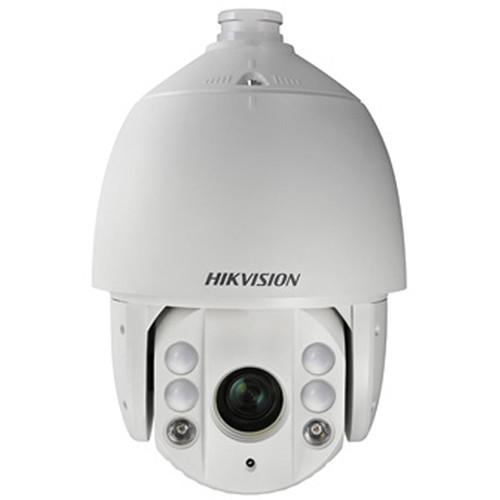

User Manual for Hikvision Value Series DS-2DE7330IW-AE 3MP Outdoor PTZ Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision Value Series DS-2DE7330IW-AE 3MP Outdoor
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision Value Series DS-2DE7330IW-AE 3MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The Value Series DS-2DE7330IW-AE 3MP Outdoor PTZ Network Dome Camera with Night Vision from Hikvision features a 1/2.8" progressive scan CMOS sensor and a 4.3-129mm varifocal lens to capture video at a maximum resolution of 2048 x 1536 at up to 30 fps. The lens offers a 57.4-2.8° field of view and 30x optical zoom for capturing detail at long distances. IR LEDs and an IR cut filter allow the camera to produce clear images in complete darkness from up to 492' away. 360° endless panning, and a -15 to 90° tilting range offer flexible surveillance from different vantage points. A built-in memory slot supports microSD/SDHC/SDXC cards up to 128GB. microSD cards are available separately.
This device is ONVIF-compliant for Profile S and G, making it compatible with a wide range of surveillance devices. It features a wide range of smart functions, such as intrusion detection, line crossing detection, and audio exception. In addition, it also features Smart Tracking, which enables the camera to detect any progressively moving object and follow it within the camera's coverage area. Enclosed in an IP66- and IK10-rated housing, the camera is suitable for outdoor use in areas at high risk of vandalism. - RJ45 Ethernet with PoE technology
- Supports H.265+, H.265, H.264+, H.264, and MJPEG video compression
- Digital wide dynamic range, backlight compensation, and highlight compensation help deliver better image quality
- 30x optical and 16x digital zoom
- 3D intelligent positioning function
- Smart features include intrusion detection, line crossing detection, and audio exception
- 24 VAC and Hi-PoE (injector supplied) power
- IR cut filter enables true day and night functionality
- 8 programmable privacy masks
- IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at high risk of vandalism
UPC: 842571103298 In the Box Hikvision Value Series DS-2DE7330IW-AE 3MP Outdoor PTZ Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision Value Series DS-2DE7330IW-AE 3MP Outdoor PTZ Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision Value Series Specs | | | Image Sensor | 1/2.8" progressive scan CMOS | | Maximum Image Resolution | 2048 x 1536 | | Minimum Illumination | Color: 0.05 lux at f/1.5, AGC on
B&W: 0.01 lux at f/1.5, AGC on
0 lux with IR on | | White Balance | Auto, manual, ATW (auto tracking white balance), indoor, outdoor, fluorescent lamp, sodium lamp | | Automatic Gain Control | Auto, manual | | Shutter Time | 1 to 1/10,000 seconds | | Day & Night | IR cut filter | | Digital Zoom | 16x | | Privacy Masking | 8 programmable privacy masks | | Focus Modes | Auto, semi-automatic, manual | | 3D-DNR | Yes | | BLC | Yes | | HLC | Yes | | D-WDR | 92 dB | | Defog | Yes | | | | Focal Length | 4.3-129mm | | Optical Zoom | 30x | | Zoom Speed | Approximately 3 seconds (optical, wide to tele) | | Field of View | 57.4-2.8° (wide to tele) | | Minimum Working Distance | 0.39 to 59" (10 to 1500 mm, wide to tele) | | Aperture Range | f/1.6-5.0 | | | | IR Range | Up to 492' (150 m) | | IR Control | IR brightness and angle are intelligently adjustable according to the scene | | | | Pan Range | 360° endless | | Pan Speed | Manual: 0.1 to 160°/sec
Preset: 240°/sec | | Tilt Range | -15 to 90° | | Tilt Speed | Manual: 0.1 to 120°/sec
Preset: 200°/sec | | Number of Presets | 300 | | Patrol | 8 patrols, up to 32 presets per patrol | | Pattern | 4 pattern scans, record time over 10 minutes for each scan | | Park Action | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan | | Scheduled Tasks | Auto scan, frame scan, random scan, patrol, pattern, preset, panorama scan, tilt scan, dome reboot, dome adjust, aux output | | | | Detection | Intrusion detection, line crossing detection, audio exception | | Region of Interest | Main stream, sub stream, and third stream respectively support two fixed areas | | | | Streams | Main Stream:
60 Hz: 30 fps (2048 x 1536, 1920 x 1080, 1280 x 960, 1280 x 720), 60 fps (1280 x 960, 1280 x 720)
50 Hz: 25 fps (2048 x 1536, 1920 x 1080, 1280 x 960, 1280 x 720), 50 fps (1280 x 960, 1280 x 720)
Sub Stream:
60 Hz: 30 fps (704 x 480, 640 x 480, 352 x 240)
50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288)
Third Stream:
60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288) | | Video Compression | Main Stream: H.265+, H.265, H.264+, H.264
Sub Stream: H.265, H.264, MJPEG
Third Stream: H.265, H.264, MJPEG
H.264 with baseline, main, and high profile | | Audio Compression | G.711 alaw, G.711 ulaw, G.722, G.726, MP2L2, PCM | | Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour | | Simultaneous Live View | Up to 20 channels | | User/Host Level | Up to 32 users
3 Levels: Administrator, Operator, and User | | Security | User authentication (ID and PW), host authentication (MAC address), HTTPS encryption, IEEE 802.1x port-based network access control, and IP address filtering | | | | Alarm Input | 2-channel alarm input | | Alarm Output | 1-channel alarm output | | Alarm Linkage | Alarm actions, such as preset, patrol scan, pattern scan, memory card video record, trigger recording, notify surveillance center, upload to FTP/memory card/NAS, and send email | | Audio Input | 1-channel audio input | | Audio Output | 1-channel audio output | | Ethernet | 1 x RJ45 10M/100M interface | | Storage | Built-in microSD/SDHC/SDXC slot supports cards up to 128 GB (available separately)
NAS (NPS, SMB/CIPS), ANR | | API Integration | Open-ended, supports ONVIF (profiles S & G), PSIA and CGI, supports Hikvision SDK and third-party management platforms | | Client | iVMS-4200, iVMS-4500, iVMS-5200 | | Web Browser | Internet Explorer 7+, Chrome 18+, Firefox 5.0+, and Safari 5.02+ | | | | Power | 24 VAC and Hi-PoE | | Maximum Power Consumption | 40 W | | Operating Temperature | -22 to 149°F (-30 to 65°C) | | Humidity | ≤90% | | IP Rating | IP66 | | IK Rating | IK10 | | Protection Level | TVS 6000 V lightning protection
Surge protection
Voltage transient protection | | Dimensions |
