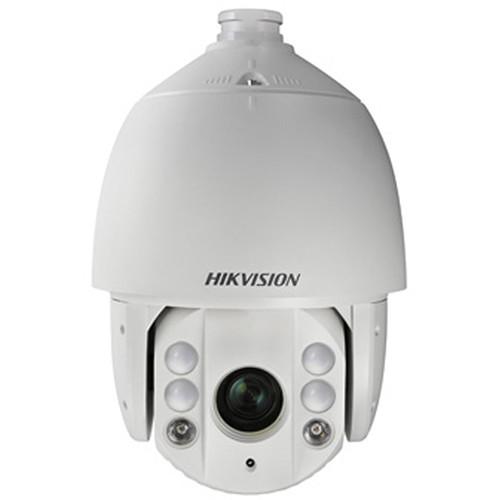

User Manual for Hikvision Value Series DS-2DE7430IW-AE 4MP Outdoor PTZ Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hikvision Value Series DS-2DE7430IW-AE 4MP Outdoor
- Product category: Wired IP Cameras Hikvision
- Brand: Hikvision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hikvision Wired IP Cameras
|
User manual for the Hikvision Value Series DS-2DE7430IW-AE 4MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hikvision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hikvision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hikvision product will considerably shorten its lifespan!
|
Product description The Value Series DS-2DE7430IW-AE 4MP Outdoor PTZ Network Dome Camera from Hikvision uses a 1/1.9" progressive scan CMOS sensor to capture video at a maximum resolution of 2560 x 1536 at up to 30 fps. IR LEDs provide up to 492' of night vision. The 5.9-177mm varifocal lens delivers a 48.8 to 2.3° field of view. The camera features endless panning, a -15 to 90° tilt range, and 30x optical zoom. Two-way audio is possible thanks to an audio I/O. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This PTZ camera is compliant with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism. - IR cut filter enables day and night functionality
- H.265+, H.265, H.264+, H.264, and MJPEG video compression
- Region of interest (ROI) for each stream respectively supports four fixed areas
- 30x optical and 16x digital zooms
- Zoom speed of 4.8 seconds
- 0.4 to 59" minimum working distance
- Auto, semi-auto, and manual focus modes
- 92 dB digital wide dynamic range
- Auto and manual gain control
- White balance modes include auto, manual, ATW, indoor, outdoor, daylight lamp, and sodium lamp
- Backlight and highlight compensation
- Electronic image stabilization (EIS)
- Regional exposure and focus
- 8 programmable privacy masks
- Analytics include motion, video tampering, audio exception, intrusion, line crossing, region entrance, region exiting, and face detection
- Dual VCA and ANR smart recording
- Up to 32 users with 3 host levels (admin, operator, and user)
- Up to 20 channels in simultaneous live view
- Two alarm inputs and one alarm output
- Alarm linkage includes preset, patrol scan, pattern scan, memory card video recording, trigger recording, E-map, VCA capture, upload to FTP, and send email
- Compatible with Internet Explorer 8 or higher, Chrome 31 or higher, Firefox 30 or higher, Safari 8.0 or higher, iOS, Android, iVMS-4200, iVMS-4500, and iVMS-5200
- Network-attached storage support
- CSA, FCC, CE, and cUL certified
- TVS 4000V lightning, surge, and voltage transient protection
- PTZ Functions
-
- Endless panning
- 0.1 to 160°/s pan speed
- 240°/s preset pan speed
- -15 to 90° tilt range (auto flip)
- 0.1 to 120°/s tilt speed
- 200°/s preset tilt speed
- 300 presets
- 8 patrols (up to 32 presets per patrol)
- 4 pattern scans (record time over 10 minutes for each scan)
- Support for proportional zoom, power-off memory, PTZ status display, and preset freezing
- Park action includes preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, and panorama scan
- Scheduled task includes preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, and aux output
UPC: 842571103328 In the Box Hikvision Value Series DS-2DE7430IW-AE 4MP Outdoor PTZ Network Dome Camera with Night Vision PoE Injector Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hikvision Value Series DS-2DE7430IW-AE 4MP Outdoor PTZ Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHikvision Value Series Specs | | | Sensor | 4 MP 1/1.9" CMOS | | Focal Length | 5.9 to 177mm | | Maximum Aperture | f/1.5 - f/3.4 | | Zoom | Optical: 30x
Digital: 16x | | Lens Field of View | Horizontal: 48.8 to 2.3° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.005 Lux
B&W: 0 Lux | | Shutter Speed | 1/30,000 to 1 Seconds | | | | Streaming Resolution | 2560 x 1536 at 30 fps
1920 x 1080 at 60 fps | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711, G.722.1, G.726, MP2L2, PCM | | | | Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, Password Protection | | Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Application Programming Interface (API) | Open API Supports ONVIF Profiles S & G, PSIA, CGI, Hikvision SDK, and Third-Party Management Platforms | | Analytics | Motion Detection
Video Tampering
Audio Exception Detection
Face Detection
Intrusion Detection
Line Crossing Detection
Region Entrance Detection
Region Exiting Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | Remote Pan: 360° at 160°/s
Remote Tilt: 105° (-15 to 90°) at 120°/s | | Alarm I/O | 2 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 492' / 149.96 m | | Video Management Software | iVMS-4200, iVMS-4500, iVMS-5200 | | Internal Storage | None | | External Storage Options | NAS | | Power Source | AC, PoE 802.3bt (60 W) | | Power Consumption | 40 W | | Operating Temperature | -22 to 149°F / -30 to 65°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
