User Manual for Hisense 100L8D HDR UHD DLP Laser TV System Click to enlarge the picture
Contents of the user manual for the Hisense 100L8D HDR UHD DLP Laser
- Product category: Home Theater Projectors Hisense
- Brand: Hisense
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hisense Home Theater Projectors
 |
User manual for the Hisense 100L8D HDR UHD DLP Laser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hisense product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hisense user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hisense product will considerably shorten its lifespan!
|
Product description Buying Guide to Projectors Read More - Hisense Laser Projector English Instagram 1080 HD H264
- Hisense Laser TV Setup English 4K UHD ProRes 422

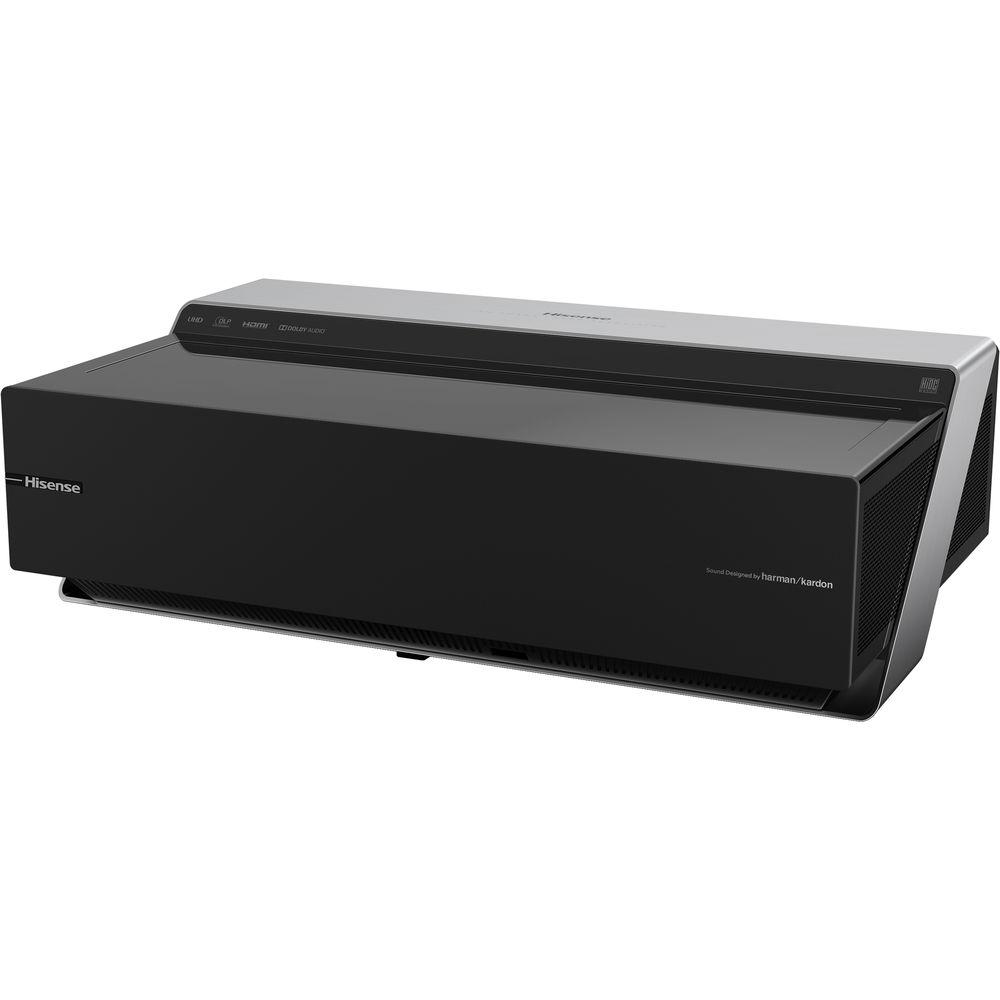

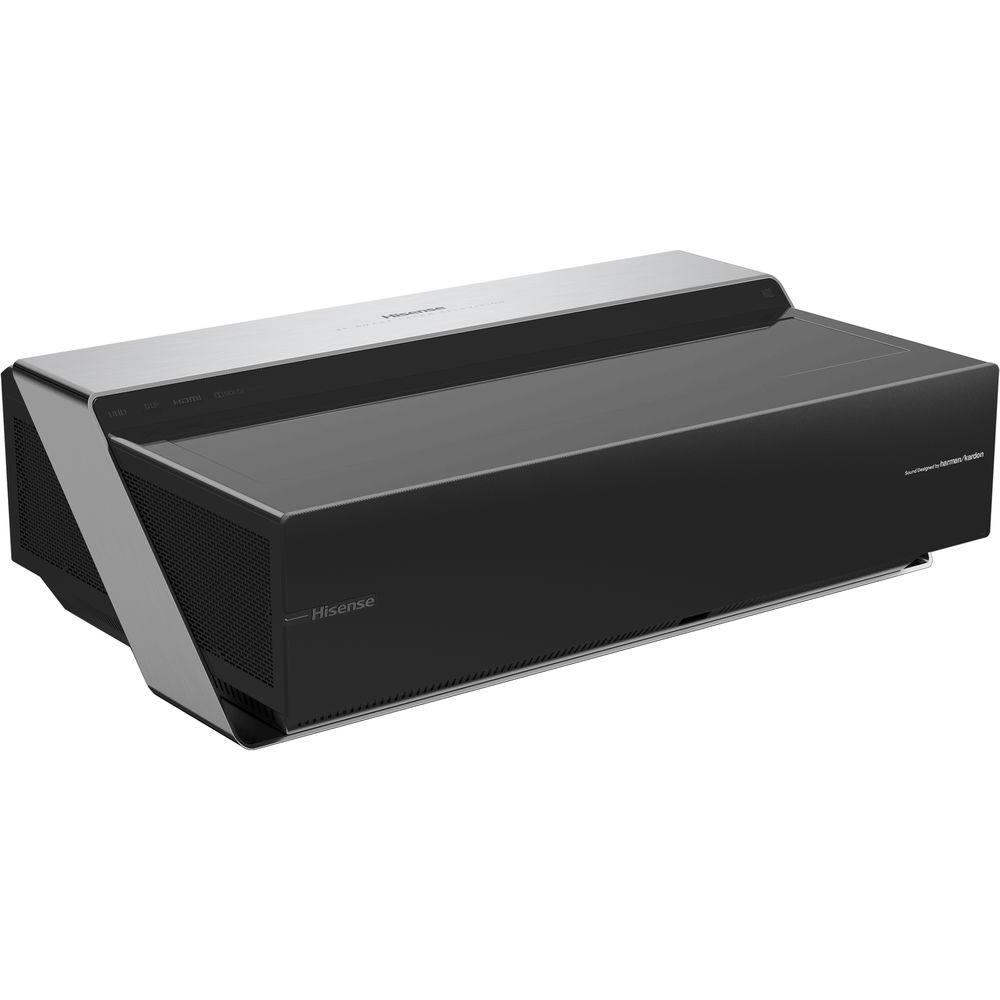

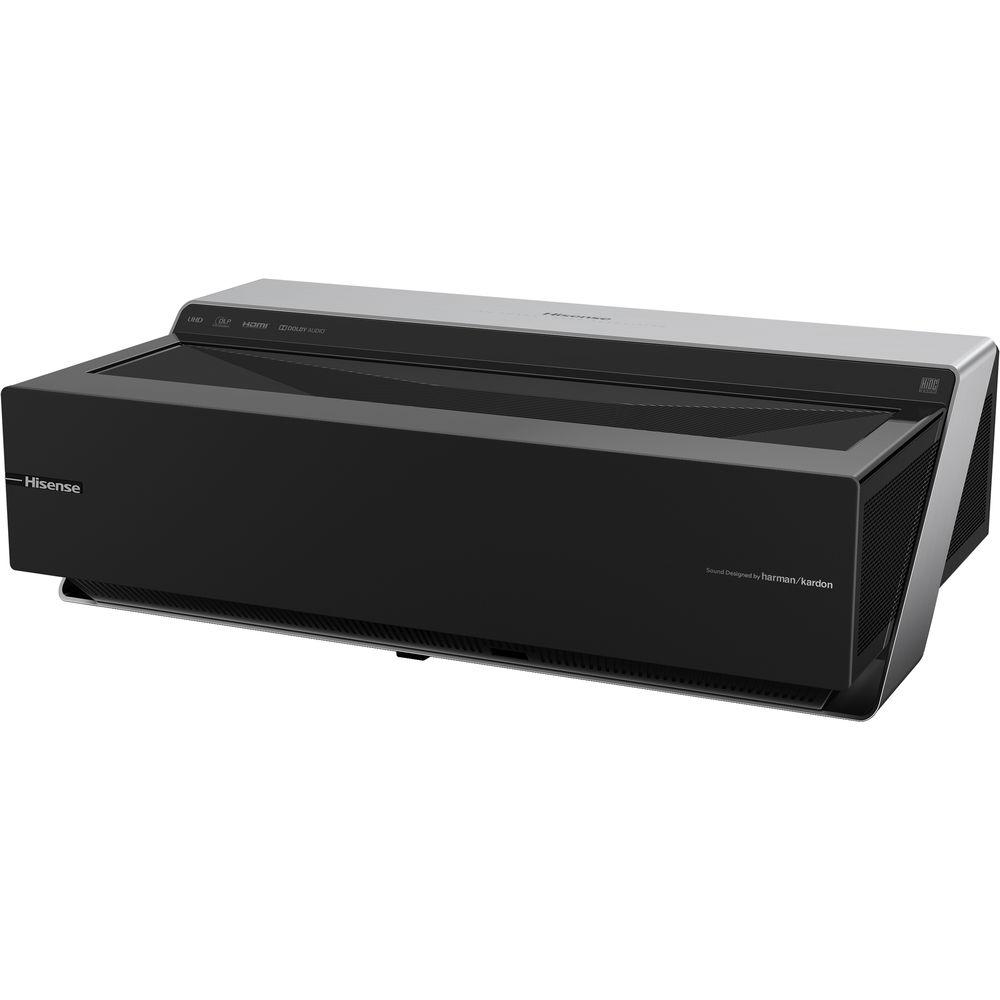

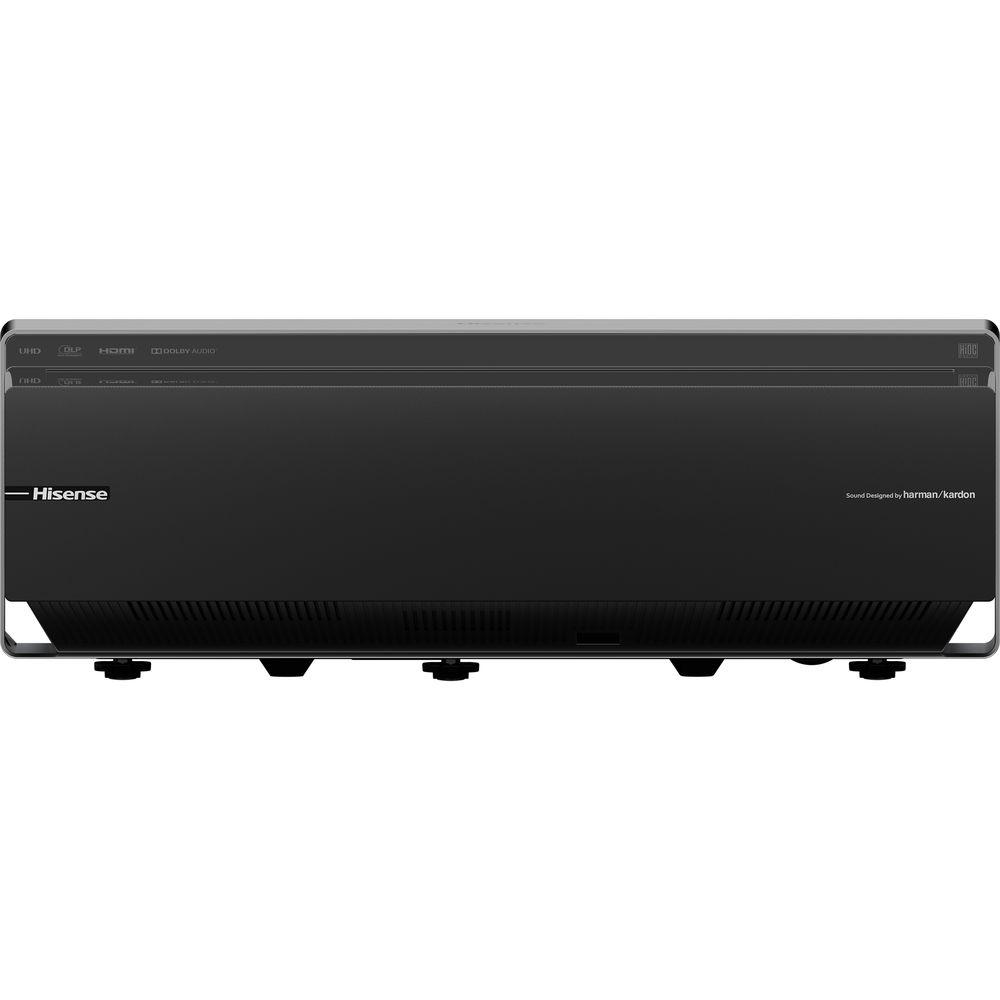

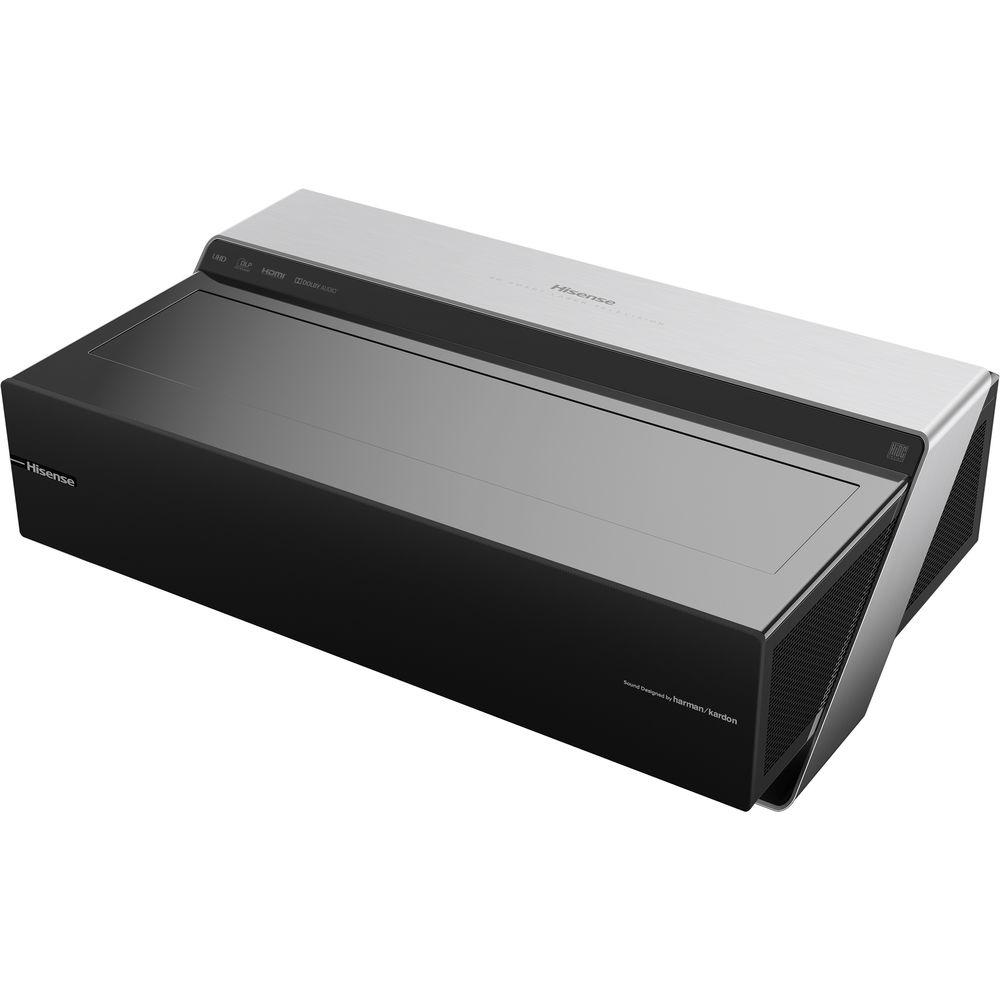

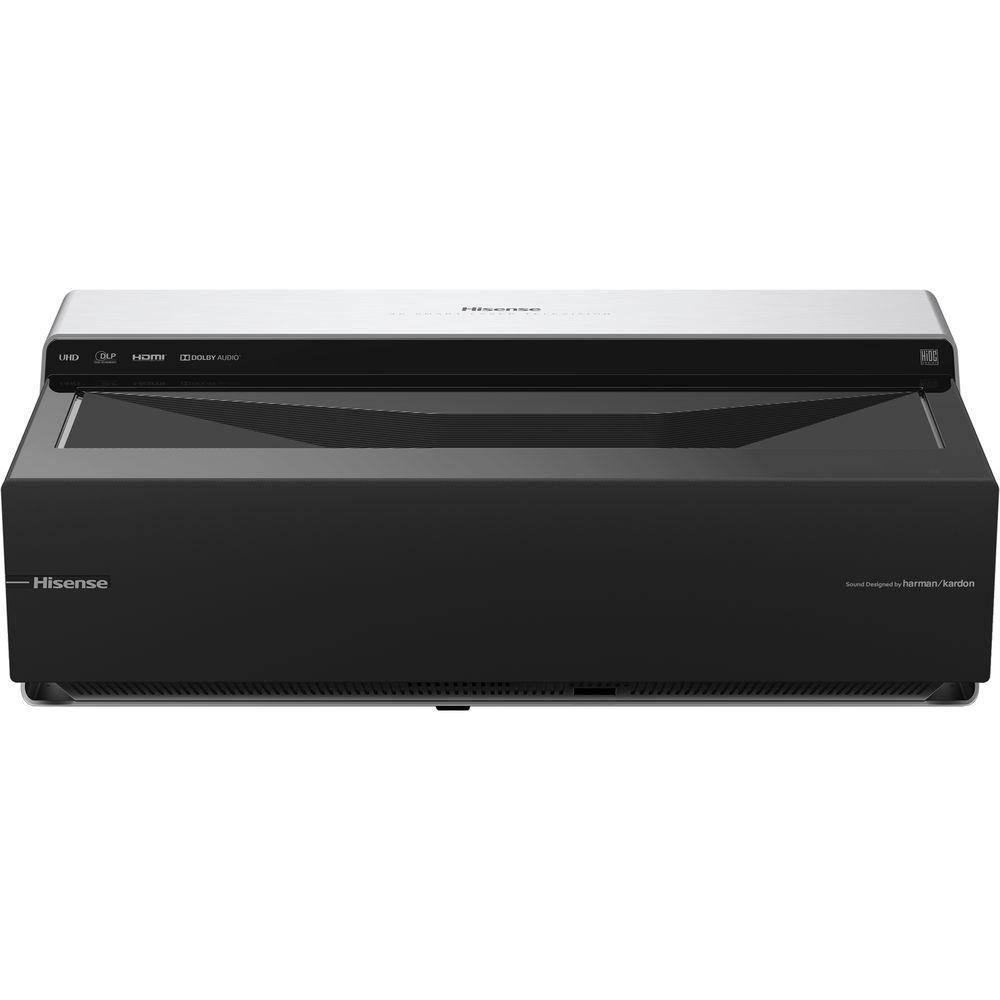

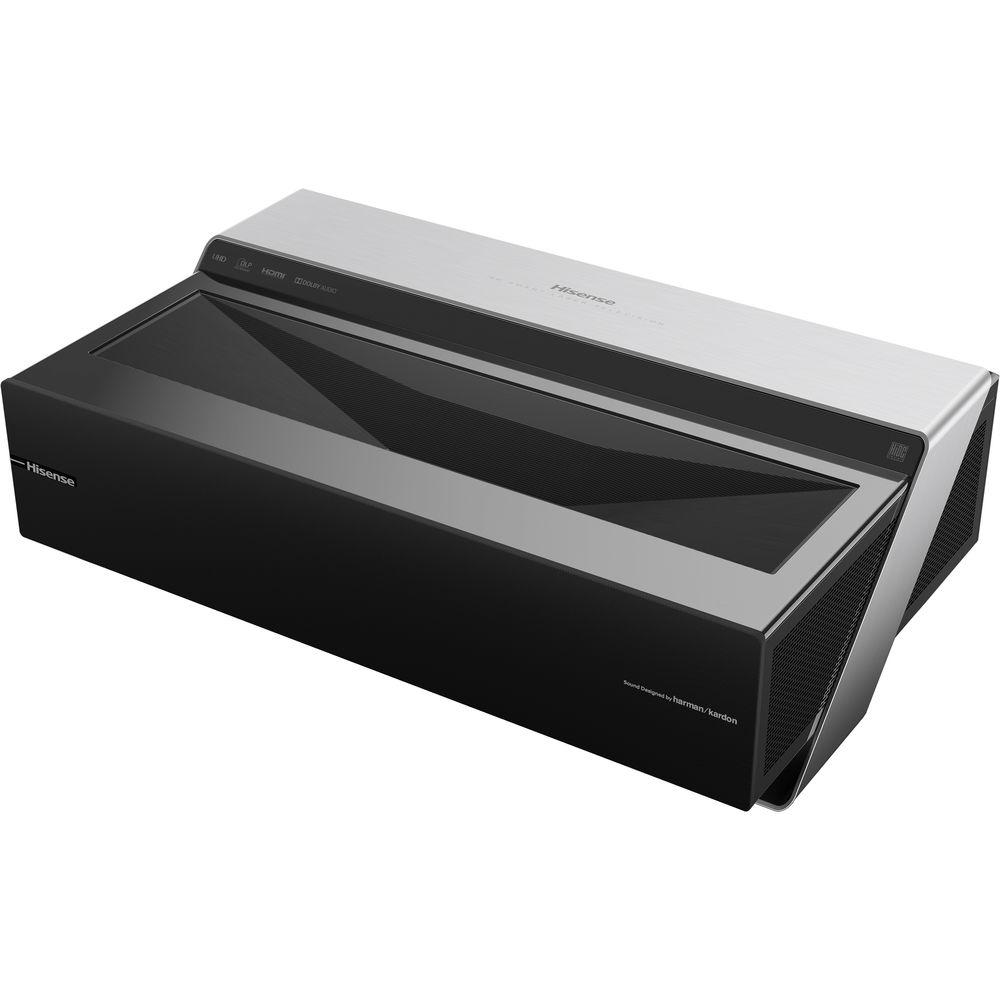

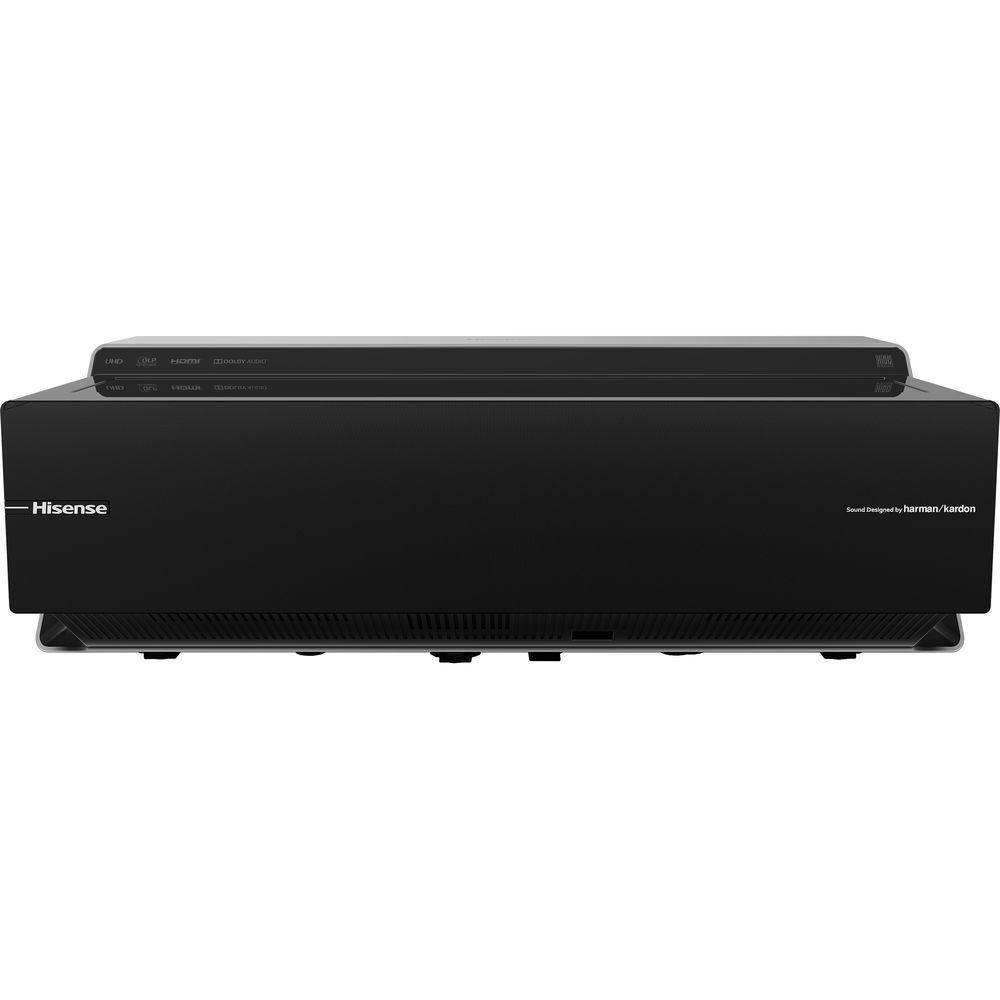

Achieve a full home theater experience with the Hisense 100L8D HDR UHD DLP Laser TV System. This system includes a DLP projector with a laser light source that outputs up to 3000 lumens of brightness for use under a variety of lighting conditions, and its 30,000:1 dynamic contrast ratio will help detail be visible in dark scenes. It has stereo Harman Kardon speakers built-in that output up to 50W total and includes a 60W wireless subwoofer for enhanced low frequency effects. A 100" wall-mount projector screen, designed to reject ambient light, is also included to help further augment image clarity in rooms with high ambient light. - UHD 4K Resolution
- Enjoy four times the amount of pixels of Full HD resolution with compatible source content for a clear image.
- UHD Upscaling
- Convert any input and all resolutions to near-4K resolution.
- Motion Rate 120
- Watch fast-motion scenes with minimal image blur.
- Up to 3000 Lumens of Brightness
- This brightness level is well suited for use in a variety of lighting conditions for watching sports and gaming.
- Smart Projector with Built-In Apps
- Enjoy built-in music and movie apps, such as Netflix.
- 100" Screen
- The 100", 16:9 screen helps make converting your living or work space into a more suitable setting for your viewing needs.
- Harman Kardon Speakers
- Two Harman Kardon speakers built into the projector provide up to 50W of audio; a 60W wireless subwoofer is also included.
- Additional Features
-
- Ambient light rejection screen
- Web browser built in
- MEMC
- Laser automatically turns off when someone is close by to protect their eyes
- dbx-tv DSP audio effects
- Integrated digital media player
- Noise reduction
- Parental control
- Power-up logo
- Sleep timer
- Game mode
- Bass enhancement
- Closed captioning
- Text-to-speech (CVAA-TTS)
In the Box Hisense 100L8D HDR UHD DLP Laser TV System Projector Screen Wireless Subwoofer Remote Control 2 x AAA Batteries USB Extension Cable 2 x Pairs of Gloves Projector Adjustment Wrench Lens Cleaning Kit Wall-Mount Template Screen Wall-Mount Hardware 2 x Power Cords Limited 2-Year Warranty More info from Hisense Table of Contents
|
Upload User Manual
Have you got an user manual for the Hisense 100L8D HDR UHD DLP Laser TV System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHisense 100L8D Specs | | | Projection System | DLP | | Native Resolution | UHD 3840 x 2160 | | Native Aspect Ratio | 16:9 | | Color Support | 10-bit / 1.07 billion | | Color Space | Rec.709 | | Brightness | 3000 lumens | | HDR Support | HDR10 | | Dynamic Contrast Ratio | 30,000:1 | | Light Source | Laser with a phosphor color filter | | Lifetime (Light Source) | Up to 20,000 hours | | Keystone Correction | Yes | | Color Systems | NTSC, PAL, SECAM | | | | F-Number (f) | Not specified by manufacturer | | Focal Length | Not specified by manufacturer | | Focus Adjustment | Optical | | Throw Ratio | Not specified by manufacturer | | Supported Image Size | 100" / 254 cm | | Offset | Not specified by manufacturer | | | | Wireless | Dual-band 802.11ac Wi-Fi
Bluetooth | | Inputs | 2 x HDMI 2.0a with HDCP 2.2
1 x RF antenna
1 x 15-pin VGA | | Outputs | 1 x stereo RCA audio
1 x optical TOSLINK | | Other Connections | 1 x USB Type-A version 3.0
1 x USB Type-A version 2.0
1 x Ethernet LAN
1 x RS-232 control | | ARC (Audio Return Channel) | Yes | | CEC | Yes | | | | Refresh Rate | 60 Hz | | Menu Languages | English, French, Spanish | | Built-in Speaker | 2 x 15 W
2 x 10 W | | Fan Noise | Not specified by manufacturer | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Operational: 400 W
Subwoofer: 80 W
Standby: <0.5W | | Dimensions (W x H x D) | 24 x 8 x 15.7" / 60.96 x 20.32 x 39.88 cm | | Weight | 40.8 lb / 18.5 kg | | | | Diagonal Viewing Size | 100" / 254 cm | | Aspect Ratio | 16:9 | | Gain | Not specified by manufacturer | | Viewing Angle | Not specified by manufacturer | | Dimensions | 87.94 x 49.75 x 1.75" / 223.37 x 126.37 x 4.45 cm | | Weight | 56 lb / 25.4 kg | | | | Output Power | 60 W | | Dimensions (W x H x D) | 6.5 x 13.4 x 14.2" / 16.51 x 34.04 x 36.07 cm | | Weight | 13.8 lb / 6.26 kg |
