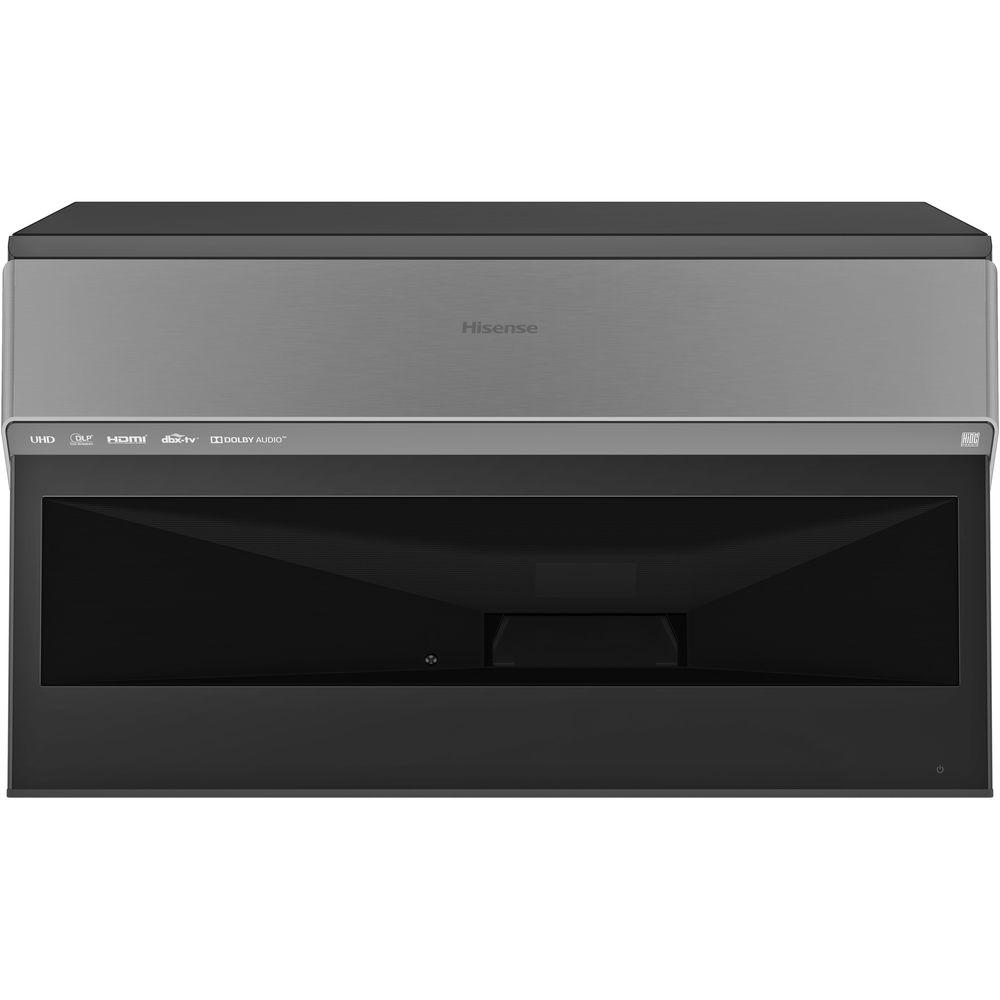

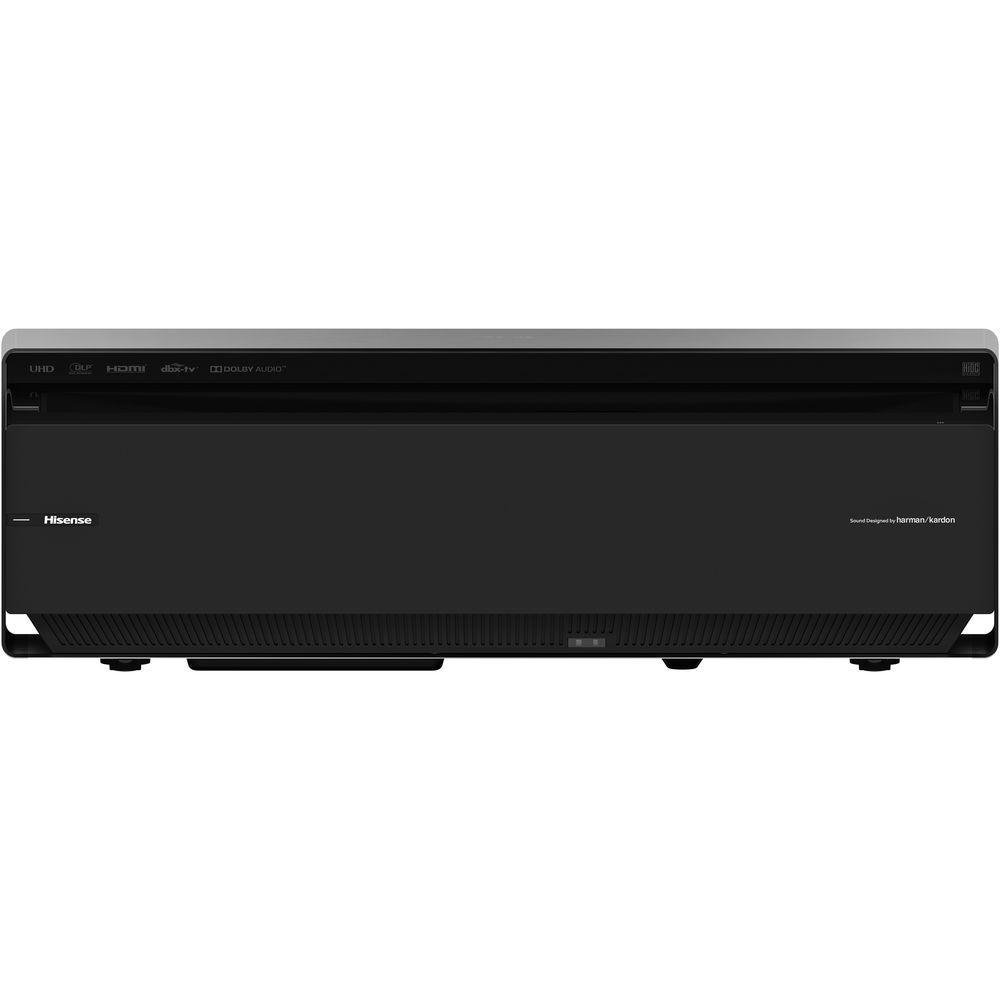

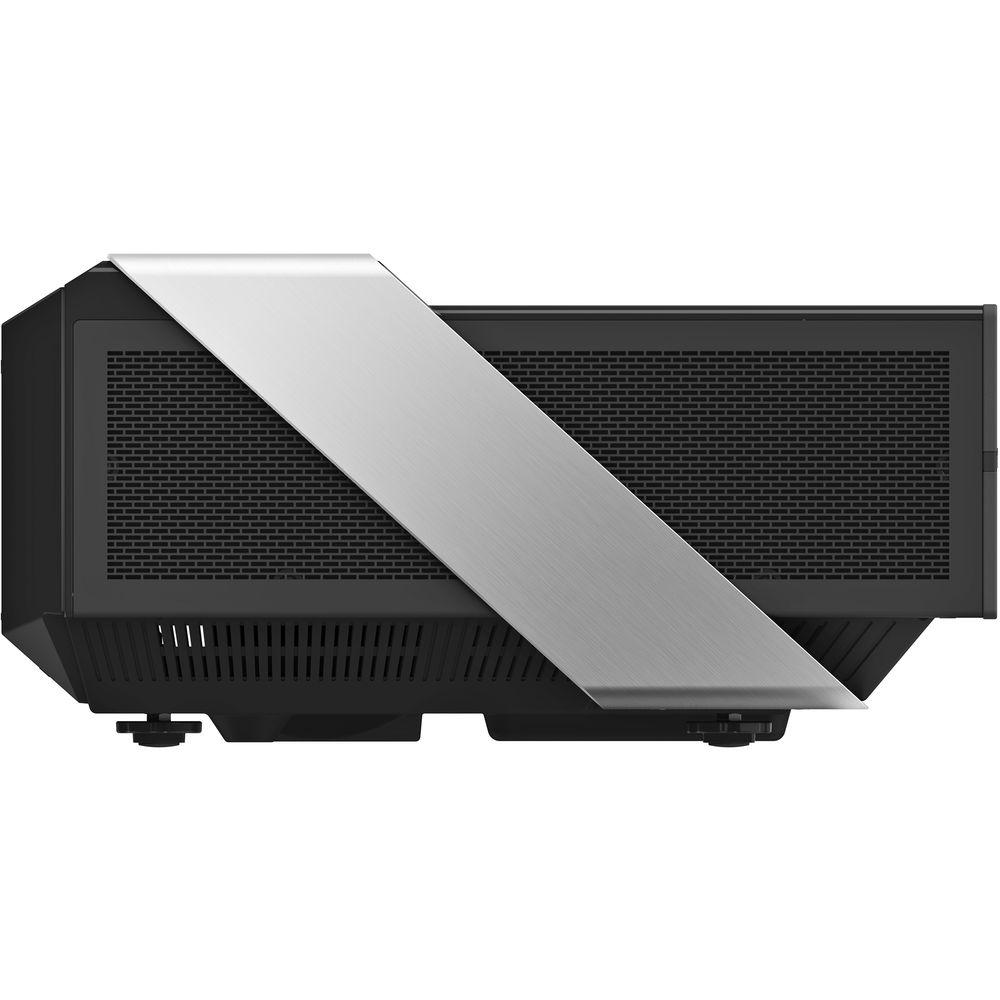

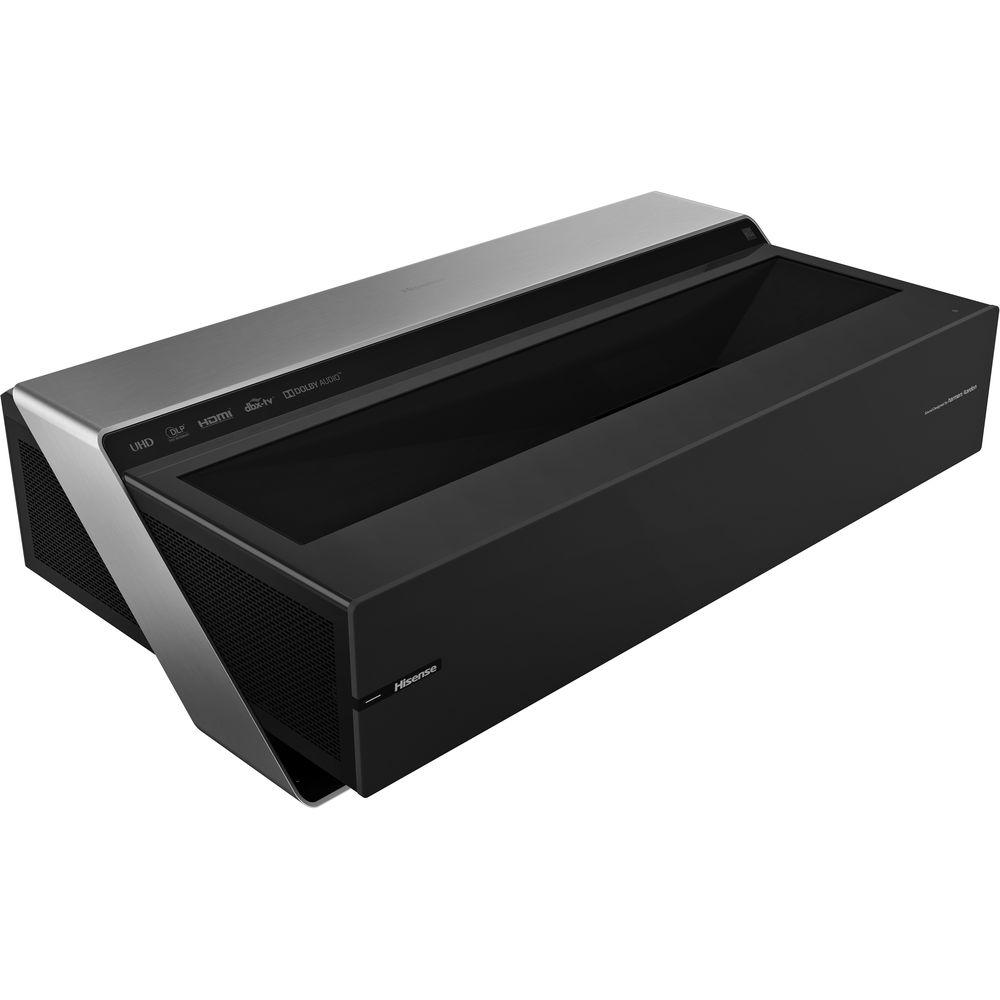

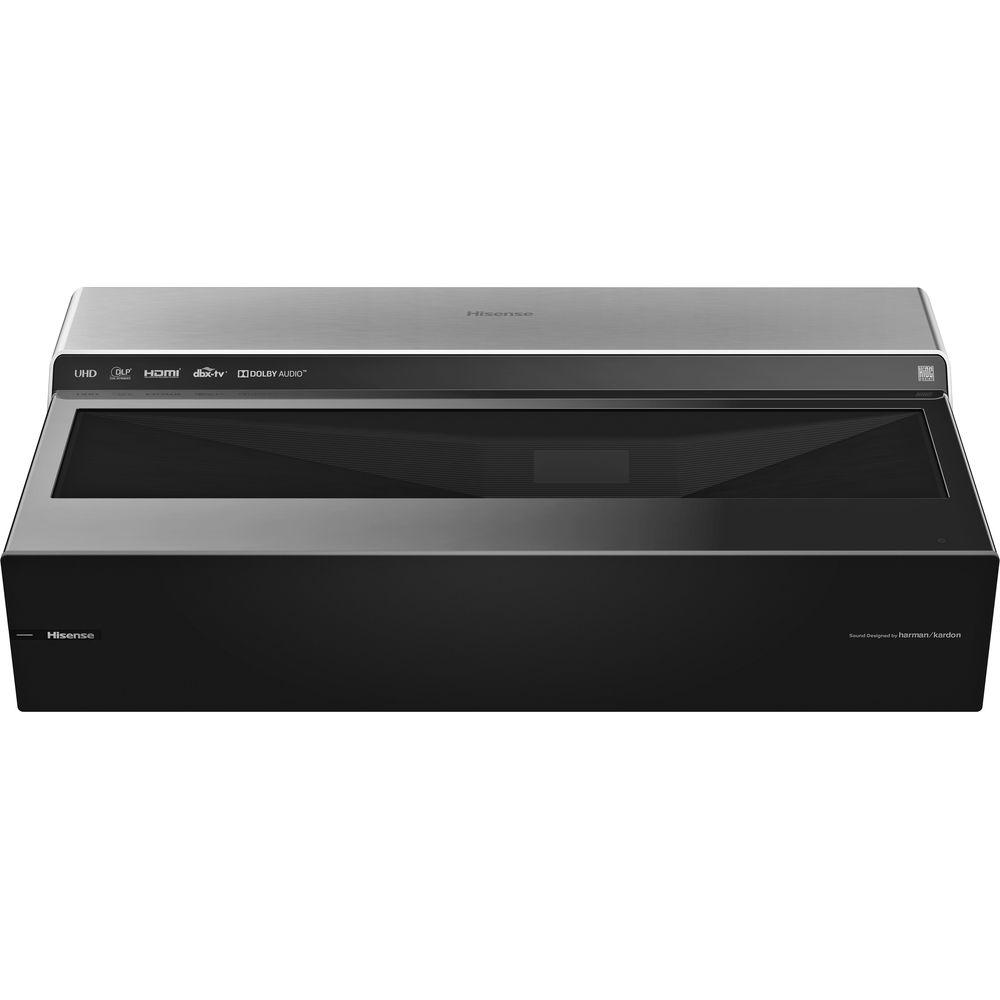

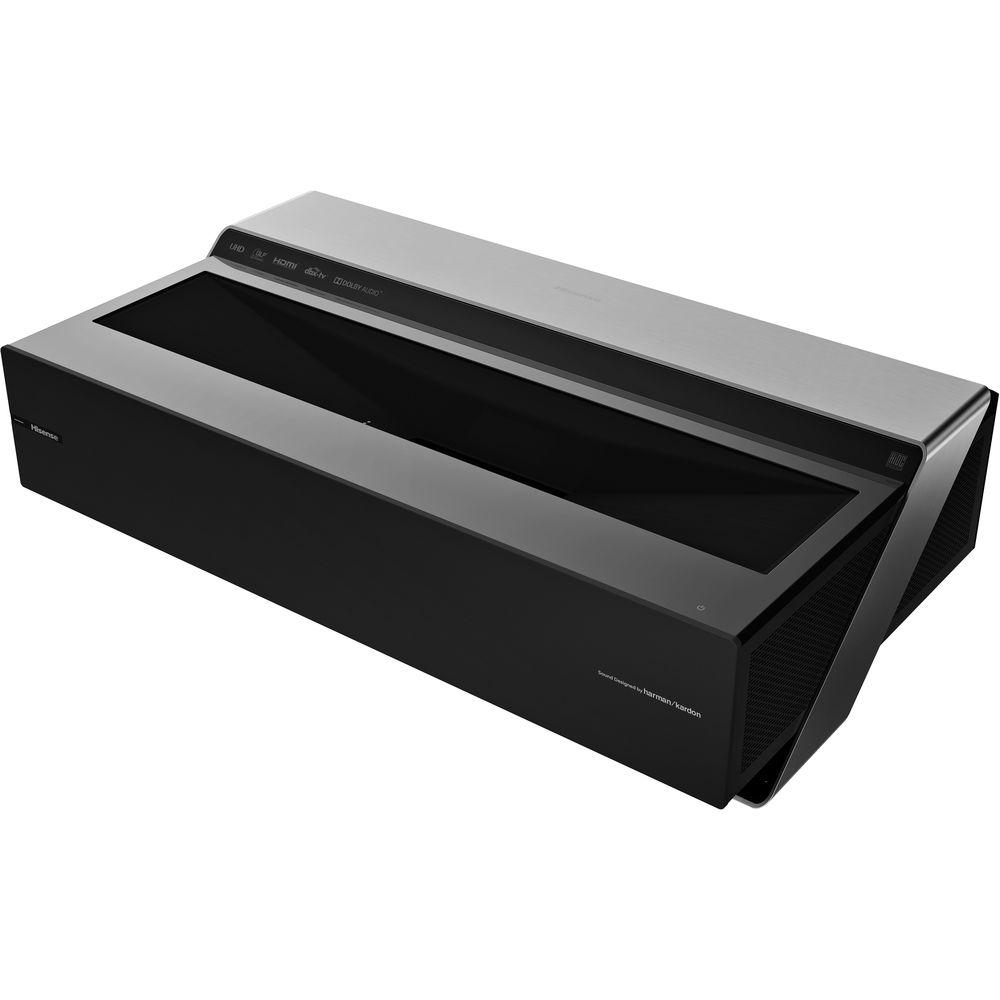

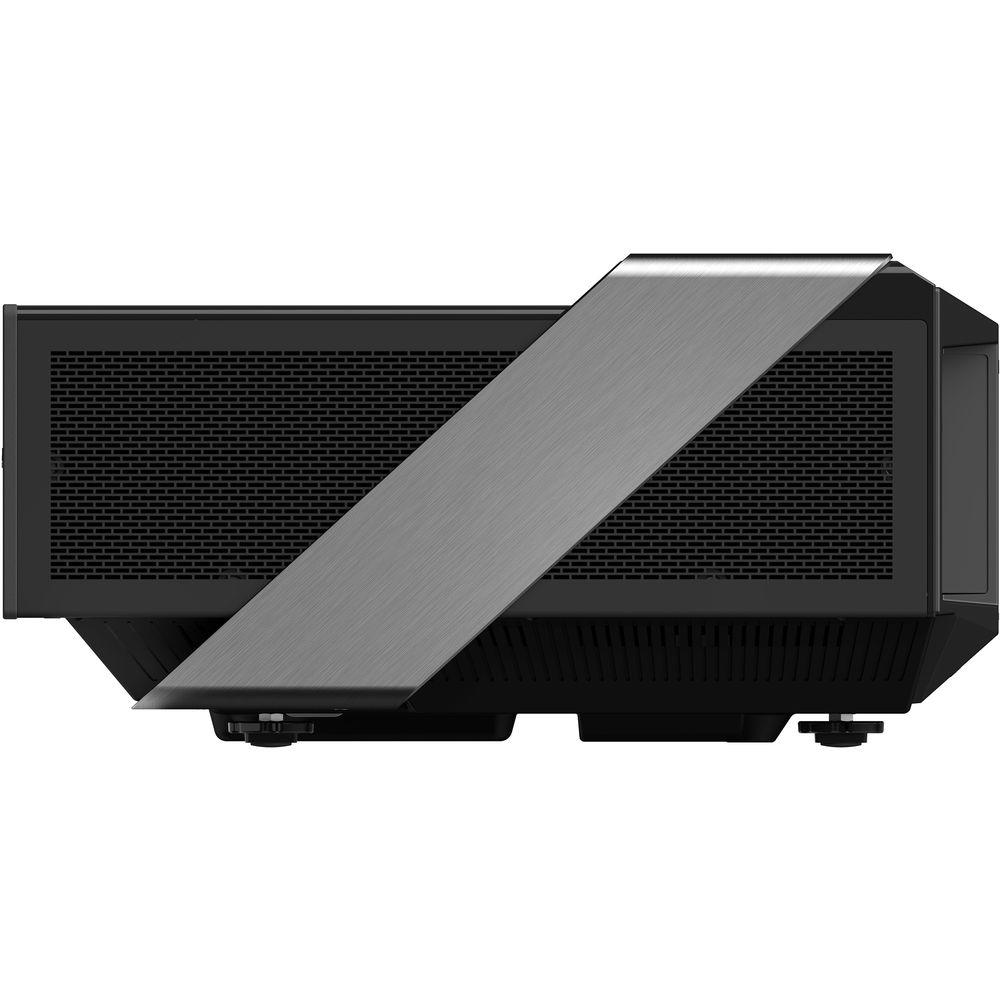

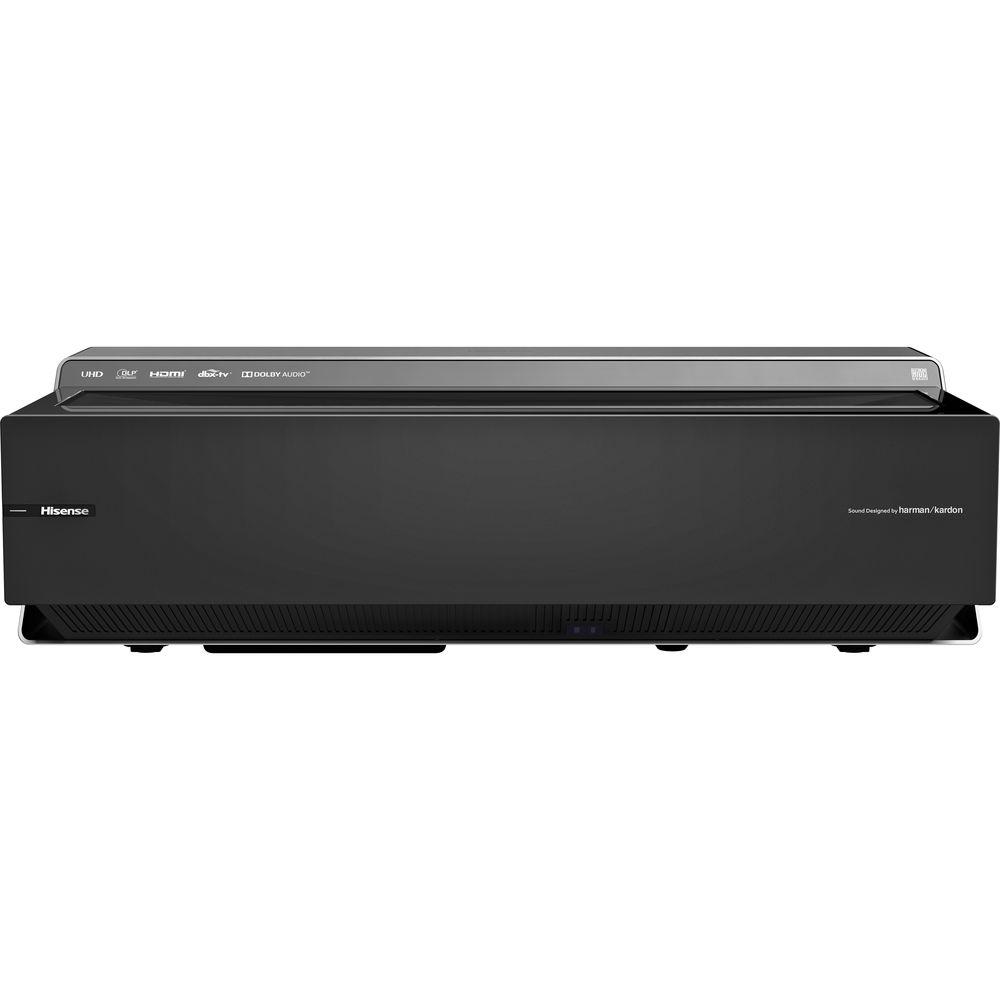

Achieve a full home theater experience with the Hisense 120L10E HDR XPR 4K UHD DLP Laser TV System. This system includes a DLP projector with a laser light source that outputs up to 3000 lumens of brightness for use under a variety of lighting conditions, and HDR compatibility helps provide vibrant, lifelike color when paired with compatible source content and equipment. The projector has Harman Kardon speakers built-in that output up to 40W total, and the system includes a 60W wireless subwoofer for enhanced low frequency effects. A 120" wall-mount projector screen, designed to reject ambient light, is also included to help further augment image clarity in rooms with high ambient light. - XPR Technology Projects 4K UHD Resolution
- XPR technology combines image processing with the ability of the DMD's mirrors to shift at the microsecond level to allow each mirror to project two pixels per frame, creating a UHD 4K image from an otherwise non-UHD chip.
- UHD Upscaling
- Convert any input and all resolutions to near-4K resolution.
- Motion Rate Technology
- Watch fast-motion scenes with minimal image blur thanks to TI's DLP technology.
- Up to 3000 Lumens of Brightness
- This brightness level is well suited for use in a variety of lighting conditions for gaming or watching movies or sports.
- HDR Compatibility
- HDR helps deliver a lifelike image with blacker black levels and brighter whites.
- Amazon Alexa Control and Built-In Apps
- Enjoy built-in music and movie apps, such as Netflix, and control them by speaking to Alexa via the remote control.

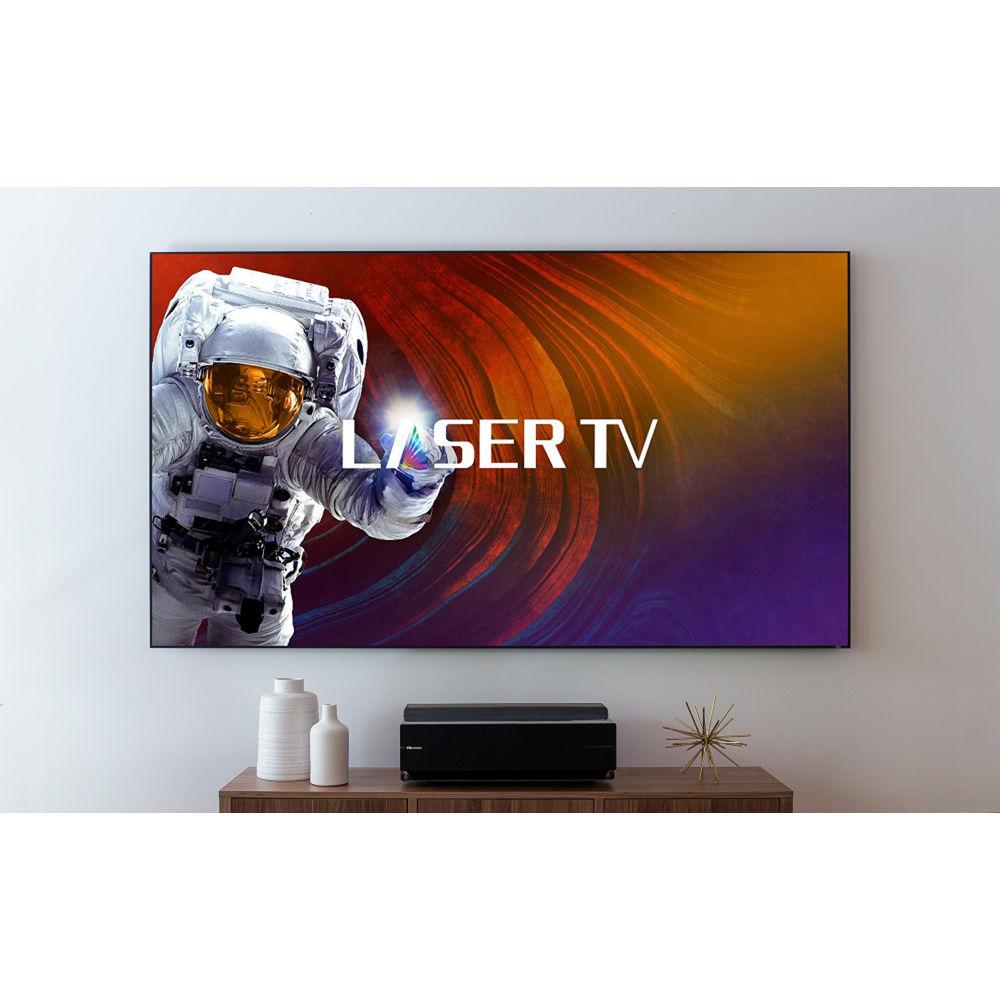

- 120" ALR (Ambient Light Rejection) Screen
- The 120" screen is designed to resist ambient light, allowing you to experience an enhanced image in either dark or bright rooms.
- Harman Kardon Speakers
- The Harman Kardon speakers built into the projector provide up to 40W of audio, and a 60W wireless subwoofer is also included.
- Additional Features
-
- Web browser built in
- On-screen display
- App store
- MEMC
- 60 Hz native refresh rate
- Ultra Motion Rate
- Wide color gamut, meeting 95% of the DCI-P3 color space
- Blue laser, red lader, & phosphor color filter
- Lens focus
- Laser automatically turns off when someone is close by to protect their eyes
- Wi-Fi 5 (802.11ac) built-in
- HDMI ARC & CEC
- Integrated digital media player
- Noise reduction
- Parental control
- Power-up logo
- Sleep timer
- Game mode
- Bass enhancement
- Text-to-speech (CVAA-TTS)
In the Box Hisense 120L10E HDR XPR 4K UHD DLP Laser TV System Projector Screen Wireless Subwoofer Remote Control 2 x AAA Batteries USB Extension Cable 2 x Pairs of Gloves Projector Adjustment Wrench Lens Cleaning Kit Screen Wall-Mount Hardware 2 x Power Cords Limited 2-Year Warranty More info from Hisense Table of Contents
|
Upload User Manual
Have you got an user manual for the Hisense 120L10E HDR XPR 4K UHD DLP Laser TV System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHisense L10 Series Specs | | | Display System | DLP | | On-Screen Resolution | Up to UHD 4K (3840 x 2160) via XPR | | Max Brightness | 3000 Lumens | | Aspect Ratio | 16:9 | | Contrast Ratio | 1500:1 | | Dynamic Contrast Ratio | 30,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | | | Projection Size | 120" / 304.80 cm | | | | Keystone Correction | Manual | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 40W | | Closed Captioning | Yes | | | | Inputs/Outputs | 4 x HDMI (HDMI Type-A) Audio, Video Input
1 x RF Audio, Video Input
1 x VGA (DE-15) Video Input
1 x TOSLINK Audio Output
1 x 2RCA Audio Output
1 x 1/8" / 3.5 mm Mini Audio Input
1 x Ethernet (RJ45) LAN
1 x RS-232 (DE-9) Control
1 x USB 3.1 Gen 1 (USB Type-A) Data
1 x USB 2.0 (USB Type-A) Data | | | | Virtual Assistant Support | Amazon Alexa | | Wireless LAN / Wi-Fi | Yes, Built-in | | | | Light Source | Laser Phosphor | | Expected Lamp Life | Medium Brightness: 25,000 Hours | | Supported Languages | English
French
Spanish | | AC Input Power | 120 VAC, 60 Hz | | Power Consumption | Medium Brightness: 450 W
Standby Mode (Lamp Off): <0.5 W | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Operating Humidity | 20 - 80% | | Storage Humidity | 10 - 70% | | Dimensions (W x H x D) | 24.0 x 8.1 x 15.7" / 61.0 x 20.6 x 39.9 cm Projector
105.8 x 60.0 x 1.0" / 268.7 x 152.4 x 2.5 cm Screen
14.2 x 13.4 x 6.5" / 36.1 x 34.0 x 16.5 cm Subwoofer | | Weight | 42.00 lb / 19.05 kg Projector
41.9 lb / 19.01 kg Screen
13.8 lb / 6.26 kg Subwoofer |
