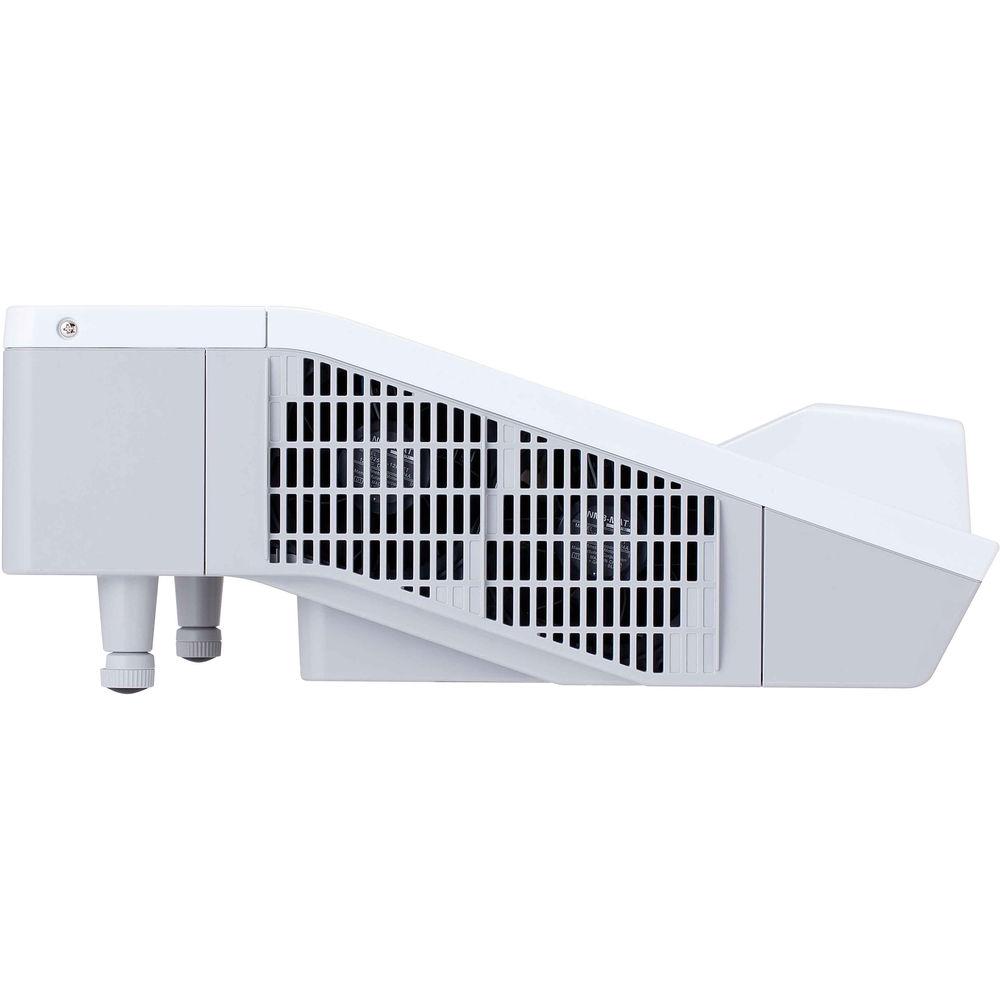

User Manual for Hitachi CP-AW3005 3300-Lumen WXGA Ultra-Short Throw 3LCD Projector Click to enlarge the picture
Contents of the user manual for the Hitachi CP-AW3005 3300-Lumen WXGA Ultra-Short Throw
- Product category: Multimedia Projectors Hitachi
- Brand: Hitachi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hitachi Multimedia Projectors
 |
User manual for the Hitachi CP-AW3005 3300-Lumen WXGA Ultra-Short Throw contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hitachi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hitachi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hitachi product will considerably shorten its lifespan!
|
Product description The CP-AW3005 3300-Lumen WXGA Ultra-Short Throw 3LCD Projector from Hitachi has the ability to project large images in tight spaces. It produces a notable 3300-lumen color and white output, along with a 10,000:1 contrast ratio. This model also has a WXGA 1280 x 800 native resolution and supports video signals up to UXGA 1600 x 1200. This projector is powered by a 3-chip 3LCD system, and the lamp features a long life of up to 6,000 hours in Eco mode and 4,000 hours in standard mode. Additionally, you can use this projector to project up to a 100" image, and it features a 0.2:1 ultra-short throw ratio from the edge of the projector to the screen, with a 0.3:1 ultra-short throw ratio from the mirror cover to the screen.
The Hitachi CP-AW3005 offers a variety of connectivity options including composite video, two VGA, two USB, and two HDMI inputs. This allows you to connect sources such as PCs, Blu-ray players, and streaming devices. One of the VGA inputs conveniently doubles as a VGA output. Its USB interface supports PC-less multimedia connections and slideshow support. RS-232C and Ethernet control interfaces are also on-board. Other features include a built-in 16W speaker for audio playback and a microphone input jack. - Accentualizer
- This Hitachi technology enhances image sharpness, gloss, and shade to produce flat panel rivaling images. You can also adjust the effects by three levels according to your surroundings so that colors of projected images are the actual colors of the objects they represent.
- HDCR (High Dynamic Contrast Range)
- When typical projectors are used in bright rooms, the darker colors of an image can deteriorate and images can become unclear. Using this function, blurred images caused by room lighting or outside light sources are corrected, and an effect similar to increasing contrast occurs. The result is a clear image, even in bright rooms.
- Cloning Function
- Copy configuration settings from one projector to others of the same model via USB memory. Cloning can save almost all PJ settings, such as gamma and keystone, via USB memory.
- ImageCare Technology
- ImageCare is a lamp power control function that combines optimal picture performance with maximum energy savings by decreasing energy usage, improving contrast ratio, and lengthening lamp life.
- Intelligent Eco and Saver Modes
- Automatically changes the brightness of the lamp according to the brightness level of the screen. It also automatically changes the brightness of the lamp if there is no change in the screen image. Using ImageCare technology, these features give optimal picture performance with maximum energy savings.
- Perfect Fit 2
- Enables the user to adjust individual corners and sides independent of one another. Perfect Fit 2 provides vertical and horizontal digital correction of either barrel or pincushion distortions. This feature helps correct geometric and complicated distortions. Perfect Fit 2 allows the projected image to fit correctly to the screen quickly and easily.
- Projector Quick Connection App For Mobile Devices
- The app is available for iPad, iPhone, and Android devices and offers full projector control while providing the capability to display photos, document files, and website content. This functionality works over your LAN via your RJ-45 port or via an optional USBWL11N wireless adapter.
- Tabletop Presentation
- Make any tabletop a projection screen using the optional tabletop stand. This accessory is suitable for a small group environment or in a room with limited space.
- Input Source Naming
- Users can rename input sources in more descriptive terms instead of the factory default names.
- Microphone Input
- A microphone can be used via the jack located on the input panel. This allows for more dynamic presentations, even in standby mode.
- Network Control, Maintenance, and Security
- Embedded networking gives you the ability to manage and control multiple projectors over your LAN connection. Features include scheduling of events, centralized reporting, image transfer, and e-mail alerts for reactive and routine maintenance.
- PC-Less Presentation
- By using a USB memory stick or other storage device, you can use the projector without a computer. Menus are easy to see with a thumbnail display. There is also a slideshow function. This feature supports the following file types: JPG, PNG, BMP, GIF, AVI, and MOV - frame rate is under 12 fps at a 640 x 480 resolution.
- PIN Lock / MyScreen / MyText
- PIN lock protection can limit projector users, offering enhanced security. MyScreen PIN lock keeps captured images on the startup screen. Users can set any name logo to MyScreen, clearly identifying ownership. MyText provides the ability to write text on the startup screen, such as model name, serial number, or location.
- PJMessenger
- The PJMessenger function allows you to send and display text messages and audio alerts on your networked projectors. It is an easy and efficient way to send announcements out to multiple units.
- Present Content via LAN
- Hitachi's suite of networking software allows you send content directly from your PC to the projector via your LAN connection.
- Serial Number and Media Access Control Label
- A label is affixed to the front of the projector to easily access and read the model name, serial number, and MAC address while mounted in ceiling use. This is an added convenience for installers, end users, and auditors for instant accessibility.
- Template Function
- Line templates in the projector menu can help when writing on a whiteboard. There are four types of line templates from which to choose.
- Wireless Presentation Compatible
- Connect the projector to a computer or your network using the optional USB wireless adapter (USBWL11N). The adapter supports high-speed IEEE 802.11n connectivity.
- Additional Features
-
- 16 - 27" from mirror cover to screen focus distance
- HDCP support via HDMI
- AMX Device Discovery and Crestron Integrated Partner
- 10,000:1 contrast ratio using active iris
- Estimated 4000-hour filter life
In the Box Hitachi CP-AW3005 3300-Lumen WXGA Ultra-Short Throw 3LCD Projector Remote Control Power Cord Computer Cable 2 x AA Batteries Cable Cover Adapter Cover Application CD-ROM Limited 3-Year Warranty Brochure PDF 2.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hitachi CP-AW3005 3300-Lumen WXGA Ultra-Short Throw 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHitachi CP-AW3005 Specs | | | Display System | 3-Chip LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | VGA - 640 x 480
SVGA - 800 x 600
XGA - 1024 x 768
WXGA - 1280 x 800
WXGA+ - 1440 x 900
SXGA - 1280 x 1024
SXGA+ - 1400 x 1050
UXGA - 1600 x 1200
MAC16 | | Max Brightness | 3300 Lumens | | Aspect Ratio | Native: 16:10
Supported: 4:3
Supported: 16:9 | | Contrast Ratio | 10000:1 | | Color Depth | 8-Bit (16.78 Million Colors) | | Scan | Horizontal: 15 to 106 kHz
Vertical: 50 to 120 Hz | | | | Lens | f/1.8 (f = 4.21 mm) | | Throw Distance | 5 - 27.1" / 12.7 - 68.834 cm | | Throw Ratio | 0.2:1 | | Projection Size | 60 - 100" / 152.40 - 254.00 cm | | | | Keystone Correction | Horizontal: ± 5°

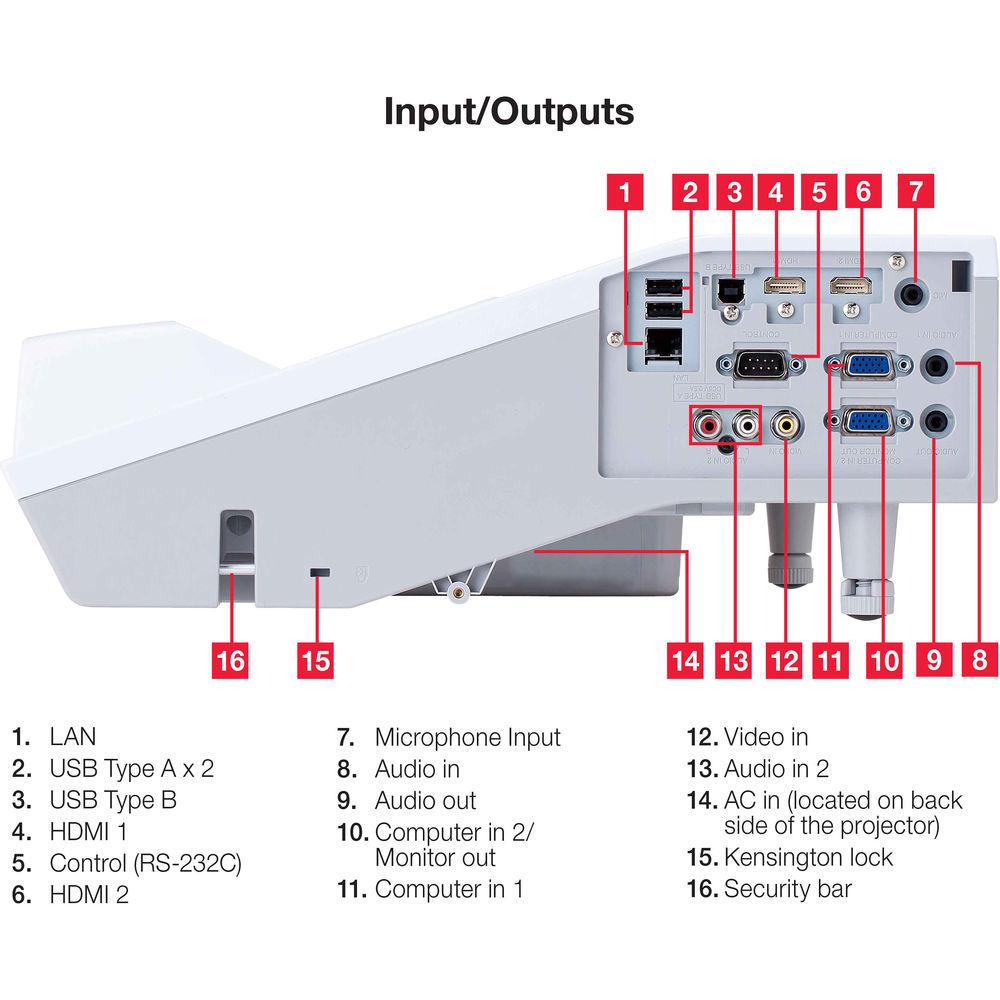

Vertical: ± 5° | | Built-In Speaker | Yes | | Speaker Power | 16W | | Closed Captioning | Yes | | | | Inputs/Outputs | 1 x Ethernet (RJ45) LAN
2 x USB Type-A Female
1 x USB Type-B Female
2 x HDMI Audio/Video
1 x RS-232C (Unspecified Connector) Control
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
2 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input) | | Wireless LAN / Wi-Fi | None | | | | Lamp Power | 250 W | | Expected Lamp Life | Medium Brightness: 4000 Hours
Low Brightness: 6000 Hours | | Security | Cable Lock Slot
Security Bar | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 360 W | | Temperature | 41 to 95°F (5 to 35°C) | | Dimensions (W x H x D) | 14.8 x 5.4 x 14.2" / 37.6 x 13.7 x 36.1 cm Excluding protruding parts) | | Weight | 9.4 lb / 4.3 kg Approximately | | | | Package Weight | 15.0 lb | | Box Dimensions (LxWxH) | 22.1 x 19.0 x 9.1" |
