Product description The CP-AW3506 3700-Lumen WXGA Ultra Short-Throw 3LCD Projector from Hitachi can project up to a 100" image with a 0.2:1 ultra-short throw ratio from the edge of the projector to the screen and a 0.3:1 ultra-short throw ratio from the mirror cover to the screen. It produces a 3700-lumen color and white output, along with a 20,000:1 contrast ratio. This model also has a WXGA 1280 x 800 native resolution and is powered by a 3-chip 3LCD system. The lamp features a long life of up to 6,000 hours in Eco-2 mode and 4,000 hours in standard mode.

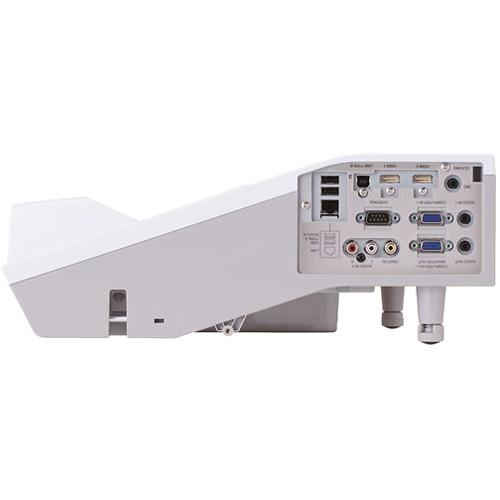

The Hitachi CP-AW3506 offers a variety of connectivity options including composite video, component video, VGA, USB, and HDMI inputs, allowing you to connect sources such as PCs, Blu-ray players, and streaming devices. One of the VGA inputs conveniently doubles as a VGA output. Its USB interface supports PC-less multimedia connections and slideshow support. RS-232C and Ethernet control interfaces are also on-board. Other features include a built-in 16W speaker for audio playback and a microphone input jack. - Accentualizer
- This Hitachi technology enhances image sharpness, gloss, and shade to produce flat panel rivaling images. You can also adjust the effects by three levels according to your surroundings so that colors of projected images are the actual colors of the objects they represent.
- HDCR2 (High Dynamic Contrast Range)
- When typical projectors are used in bright rooms, the darker colors of an image can deteriorate and images can become unclear. Using this function, blurred images caused by room lighting or outside light sources are corrected, and an effect similar to increasing contrast occurs. The result is a clear image, even in bright rooms.
- Cloning Function
- Copy configuration settings from one projector to others of the same model via USB memory. Cloning can save almost all PJ settings, such as gamma and keystone, via USB memory.
- ImageCare Technology
- ImageCare is a lamp power control function that combines optimal picture performance with maximum energy savings by decreasing energy usage, improving contrast ratio, and lengthening lamp life.
- Intelligent Eco and Saver Modes
- Automatically changes the brightness of the lamp according to the brightness level of the screen. It also automatically changes the brightness of the lamp if there is no change in the screen image. Using ImageCare technology, these features give optimal picture performance with maximum energy savings.
- Perfect Fit 2
- Enables the user to adjust individual corners and sides independent of one another. Perfect Fit 2 provides vertical and horizontal digital correction of either barrel or pincushion distortions. This feature helps correct geometric and complicated distortions. Perfect Fit 2 allows the projected image to fit correctly to the screen quickly and easily.
- Projector Quick Connection App For Mobile Devices
- The app is available for iPad, iPhone, and Android devices and offers full projector control while providing the capability to display photos, document files, and website content. This functionality works over your LAN via your RJ45 port or via an optional USBWL11N wireless adapter.
- Tabletop Presentation
- Make any tabletop a projection screen using the optional tabletop stand. This accessory is suitable for a small group environment or in a room with limited space.
- Input Source Naming
- Users can rename input sources in more descriptive terms instead of the factory default names.
- Microphone Input
- A microphone can be used via the jack located on the input panel. This allows for more dynamic presentations, even in standby mode.
- Network Control, Maintenance, and Security
- Embedded networking gives you the ability to manage and control multiple projectors over your LAN connection. Features include scheduling of events, centralized reporting, image transfer, and e-mail alerts for reactive and routine maintenance.
- PC-Less Presentation
- By using a USB memory stick or other storage device, you can use the projector without a computer. Menus are easy to see with a thumbnail display. There is also a slideshow function.
- PIN Lock / MyScreen / MyText
- PIN lock protection can limit projector users, offering enhanced security. MyScreen PIN lock keeps captured images on the startup screen. Users can set any name logo to MyScreen, clearly identifying ownership. MyText provides the ability to write text on the startup screen, such as model name, serial number, or location.
- PJMessenger
- The PJMessenger function allows you to send and display text messages and audio alerts on your networked projectors. It is an easy and efficient way to send announcements out to multiple units.
- Present Content via LAN
- Hitachi's suite of networking software allows you send content directly from your PC to the projector via your LAN connection.
- Template Function
- Line templates in the projector menu can help when writing on a whiteboard. There are four types of line templates from which to choose.
- Wireless Presentation Compatible
- Connect the projector to a computer or your network using the optional USB wireless adapter (USBWL11N). The adapter supports high-speed IEEE 802.11n connectivity.
UPC: 050585155817 In the Box Hitachi CP-AW3506 3700-Lumen WXGA Ultra-Short Throw 3LCD Projector HL03033 Remote Control with Batteries 14.8' Power Cord Cable Cover Adapter Cover Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hitachi CP-AW3506 3700-Lumen WXGA Ultra-Short Throw 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

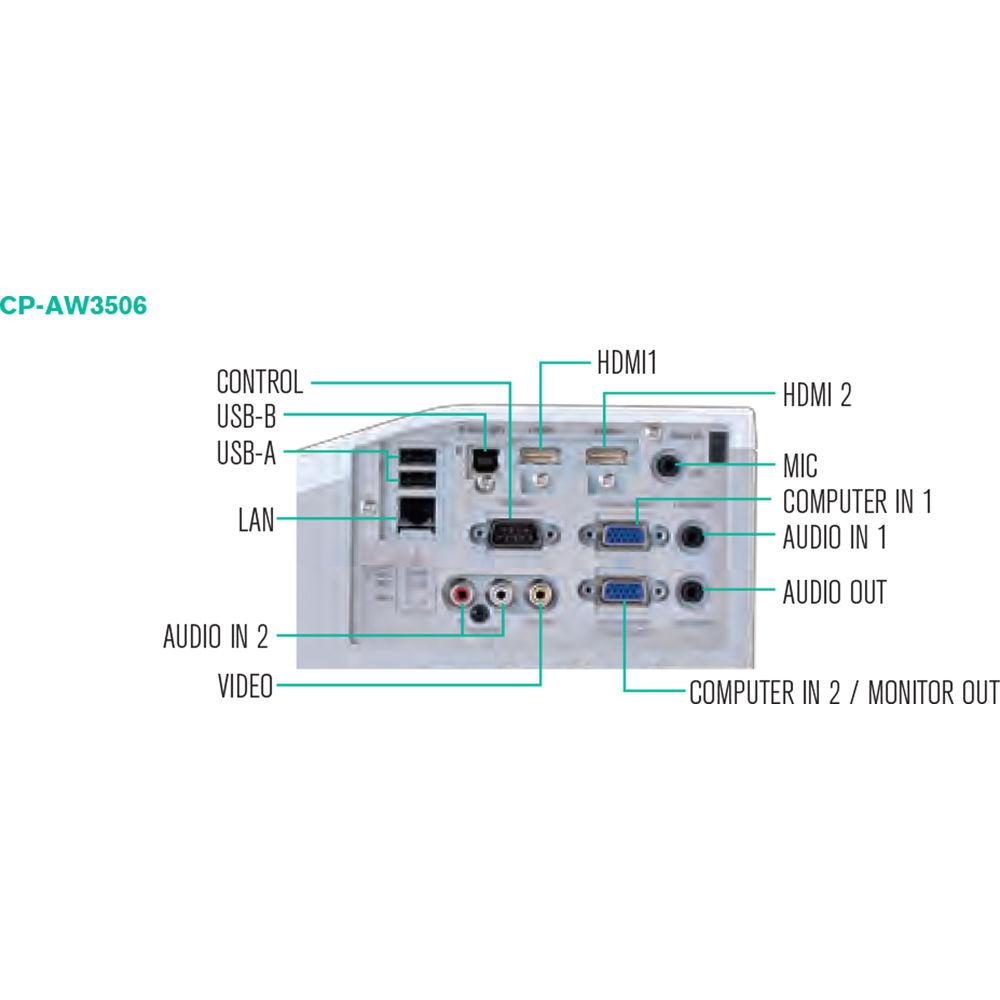

Technical parametersHitachi CPAW3506 Specs | | | Display System | 3-Chip LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | VGA
SVGA
WXGA
WXGA+
SXGA
SXGA+
UXGA
MAC16 | | Max Brightness | 3700 Lumens | | Aspect Ratio | Native: 16:10
Native: 4:3
Native: 16:9
Native: 14:9 | | Contrast Ratio | 20000:1 | | Color Depth | 8-Bit (16.78 Million Colors) | | | | Focus | Manual Powered | | Throw Ratio | 0.2:1 | | Projection Size | 60 - 100" / 152.40 - 254.00 cm | | | | Keystone Correction | Vertical: ± 5°
Horizontal: ± 5° | | Digital Zoom | 1.35x | | Built-In Speaker | Yes | | Speaker Power | 16W | | | | Inputs/Outputs | 1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x 1/8" (3.5 mm) Mini Microphone (Input)
1 x RCA Stereo (L/R) Audio (Input) | | Inputs/Outputs | 2 x HDMI (HDMI Type-A) Video Input
1 x VGA (DE-15) Video Input
1 x Component (DE-15) Video Input/Output
1 x Composite (RCA) Video Input
1 x Ethernet (RJ45) LAN Input
2 x USB 2.0 (USB Type-A) Data Input
1 x USB 2.0 (USB Type-B) Control Input
1 x RS-232 (DE-9) Control Input | | Memory Card Slot | None | | | | Light Source | Lamp | | Lamp Power | 250 W | | Expected Lamp Life | Full Brightness: 4000 Hours

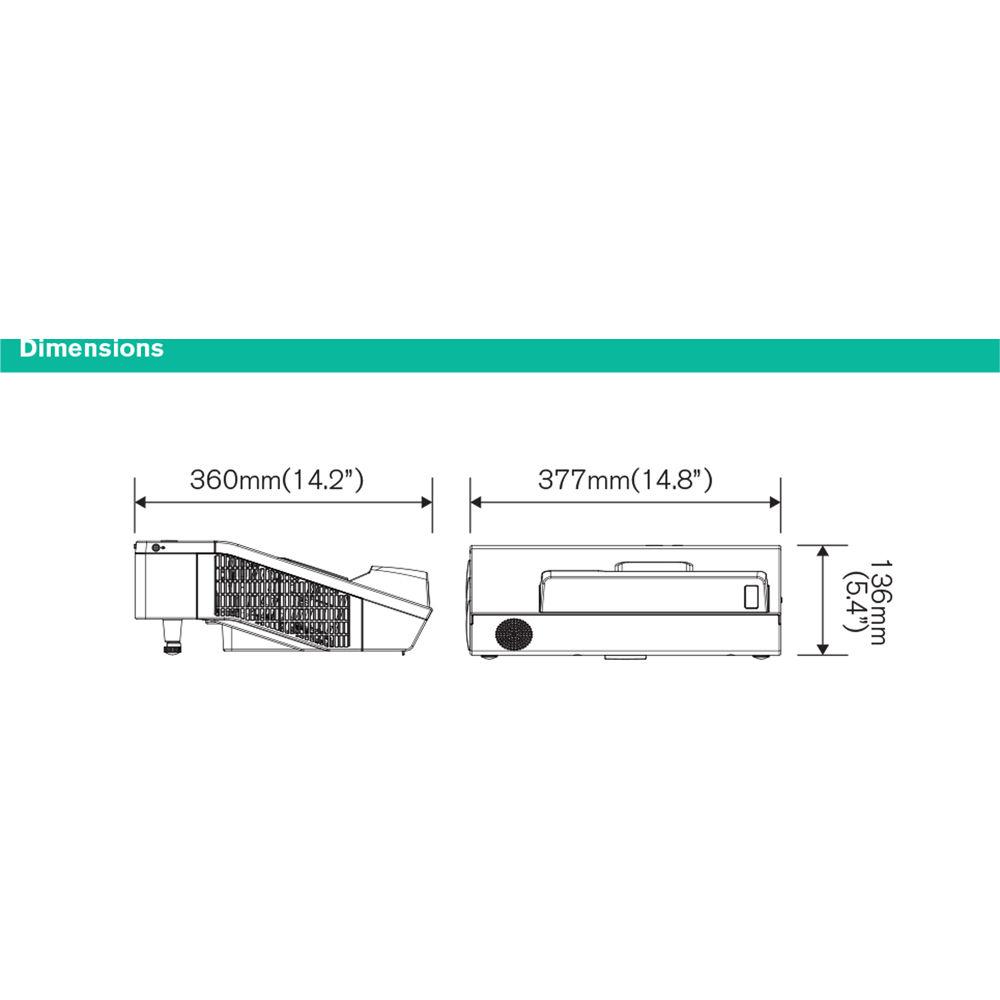

Low Brightness: 6000 Hours | | Security | Security Bar | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 360 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions (W x H x D) | 14.8 x 5.4 x 14.2" / 37.6 x 13.7 x 36.1 cm (Excluding protruding parts) | | Weight | 9.7 lb / 4.40 kg |
