Product description The Hitachi CP-AX3505 3600-Lumen XCA Ultra-Short Throw LCD Projector is suitable for producing large images in limited spaces. It provides vibrant image quality with cost-effective operation. A suite of features includes two HDMI ports, High Dynamic Contrast Range (HDCR), and Hitachi's original Accentualizer technology that allows the projected image to appear more real by enhancing sharpness, gloss, and shade. Along with its lightweight compact design, the CP-AX3505 offers Hitachi's Perfect Fit installation feature, allowing time saving and ease of installation. The Intelligent Eco and Saver modes with ImageCare combine optimal picture performance with energy savings for a lower total cost of ownership. - Accentualizer
- Hitachi original technology makes pictures look more real by enhancing sharpness, gloss, and shade to make pictures as clear as pictures on a flat panel device. You can also adjust the effects by three levels according to your surroundings so that the colors of projected images are the actual colors of the objects they represent.
- HDCR (High Dynamic Contrast Range)
- When average projectors are used in bright rooms, the darker colors of an image deteriorate and images become unclear. Using this function, blurred images caused by room lighting or outside light sources are corrected, and an effect similar to increasing contrast occurs. This results in clear images, even in bright rooms.
- Cloning Function
- Copy setting data from one projector to others of the same model via USB memory. Cloning not only saves almost all PJ settings, such as gamma and keystone via USB memory, it also saves countless hours in setup and installation.
- ImageCare Technology
- ImageCare is a lamp power control function that combines optimal picture performance with maximum energy savings by decreasing energy usage, improving contrast ratio, and lengthening lamp life. The result is a lower total cost of ownership and a decreased maintenance cost.
- Intelligent Eco and Saver Modes
- Automatically change the brightness of the lamp according to the brightness level of the screen. Also, automatically change the brightness of the lamp if there is no change in the screen image. Using ImageCare technology, these features give optimal picture performance with maximum energy savings.
- Perfect Fit 2
- Enabling the user to adjust individual corners and sides independent of one another, Perfect Fit 2 provides vertical and horizontal digital correction of either barrel or pincushion distortions. This feature helps correct geometric and complicated distortions. Perfect Fit 2 allows the projected image to fit correctly to the screen quickly and easily.
- Projector Quick Connection App For Mobile Devices
- Our iOS and Android application offers projector control and provides the capability to display photos, document files, and website contents. Works over your LAN via your RJ-45 port or via an optional USBWL11N wireless adapter.
- Tabletop Presentation
- Make any tabletop a projection screen using the optional tabletop stand. Ideal for a small group environment or in a room with limited space.
- Input Source Naming
- Users can name input sources in simple language instead of factory default names. A microphone can be used via the mic input jack located on the input panel. Allows for more dynamic presentations even in standby mode.
- Network Control, Maintenance, and Security
- Embedded networking gives you the ability to manage and control multiple projectors over your LAN. Features include scheduling of events, centralized reporting, image transfer, and email alerts for reactive and routine maintenance.
- PC-Less Presentation
- By using a USB memory stick or other storage device, you can use the projector without a computer. Menus are easy to see with a thumbnail display. There is also a slideshow and video function.
- PIN Lock / MyScreen / MyText
- PIN lock protection can limit projector users. MyScreen PIN lock keeps captured images on the startup screen. Users can set any name logo to MyScreen, clearly identifying ownership. MyText provides the ability to write text on the startup screen such as model name, serial number, or location.
- PJMessenger
- Send and display text messages and audio alerts on your networked projectors with this function. It is an easy and efficient way to send announcements out to multiple units.
- Present Content via LAN
- Hitachi's suite of networking software allows you to easily send content directly from your PC to the projector via your LAN connection.
- Template Function
- Line templates in the projector menu can help when writing on a whiteboard. There are four types of line templates from which to choose.
- Wireless Presentation Compatible
- Connect the projector to a computer or your network using the optional USB wireless adapter (USBWL11N). The adapter supports IEEE802.11n.
In the Box Hitachi CP-AX3505 3600-Lumen XCA Ultra-Short Throw LCD Projector Remote Control Power Cord Computer Cable 2 x AA Battery Cable Cover Adapter Cover Application CD Limited 3-Year Warranty Brochure PDF 168.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hitachi CP-AX3505 3600-Lumen XCA Ultra-Short Throw LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHitachi CP-AX3505 Specs | | | Display System | 3-Chip 0.63" LCD | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | VGA
SVGA
XGA
VGA
SVGA
XGA
WXGA
WXGA+
SXGA
SXGA+
UXGA
MAC16 | | Max Brightness | 3600 Lumens | | Aspect Ratio | Native: 4:3
Supported: 16:9
Supported: 16:10 | | Contrast Ratio | 10000:1 | | DLP Link 3D | None | | Color Depth | 8-Bit (16.78 Million Colors) | | | | Lens | f/1.8 - 1.8 (f = 4.21 - 4.21 mm) | | Lens Shift | Vertical: ± 5%
Horizontal: ± 5% | | Throw Distance | 60 - 4.1' / 18.288 - 1.25 m | | Throw Ratio | 0.2:1 | | Projection Size | 60 - 100" / 1524.00 - 2540.00 mm | | | | Keystone Correction | Vertical: ± 5°

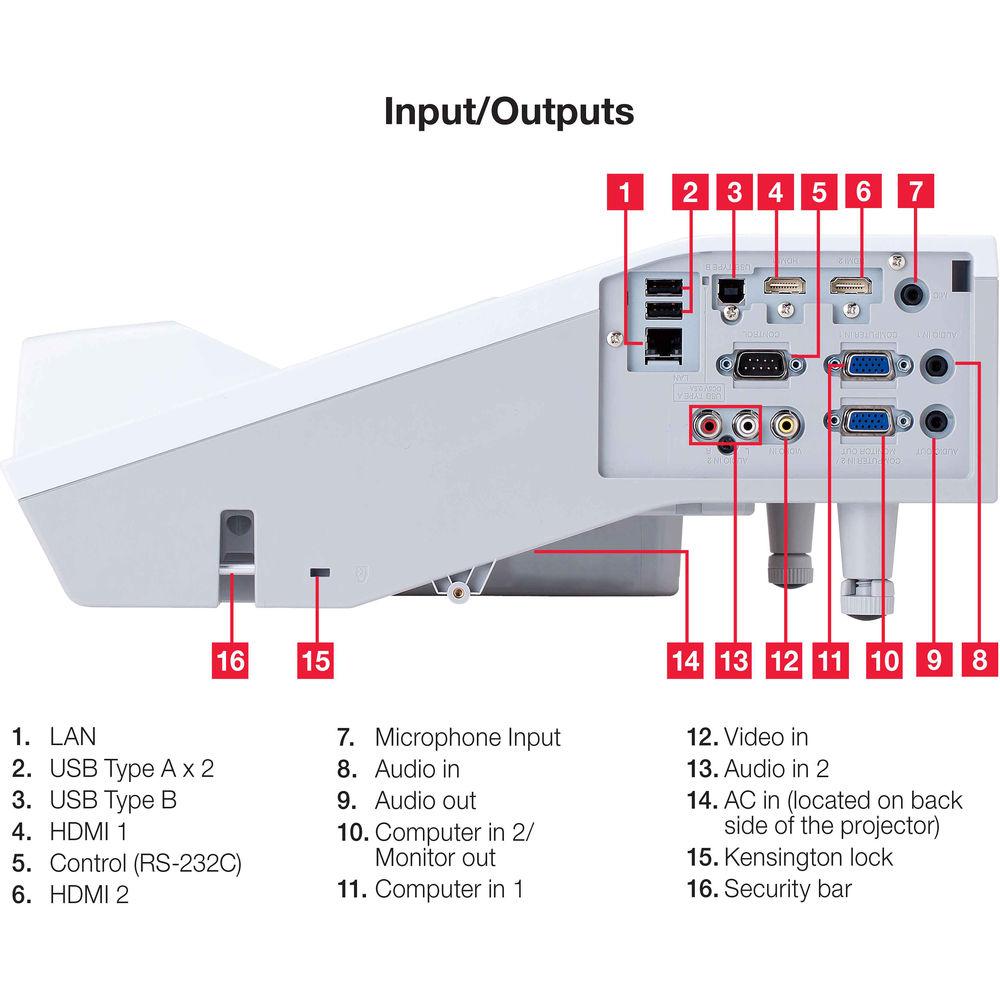

Horizontal: ± 5° | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
2 x VGA (DE-15) Video (Input)
1 x Composite (RCA) Video (Input)
1 x Component (3RCA) Video (Input)
2 x 1/8" (3.5 mm) Mini Audio (Input)
2 x RCA Stereo (L/R) Video (Input)
1 x 1/8" (3.5 mm) Mini Microphone (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x Ethernet (RJ45) LAN (Input)
2 x USB LAN (Input)
1 x USB Control (Output)
1 x RS-232C (Unspecified Connector) Control (Input) | | Wireless LAN / Wi-Fi | Yes, Built-in | | | | Light Source | Lamp (1 x UHP) | | Lamp Power | 250 W | | Expected Lamp Life | Medium Brightness: 4000 Hours
Low Brightness: 6000 Hours | | Security | Security Bar | | Menu Languages | None | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 360 W | | Temperature | Operating
32 to 104°F (0 to 40°C) | | Dimensions (W x H x D) | 14.8 x 14.2 x 5.4" / 37.6 x 36.1 x 13.7 cm Excluding feet and extrusions | | Weight | 9.4 lb / 4.3 kg | | | | Box Dimensions (LxWxH) | 22.3 x 18.9 x 9.6" |
