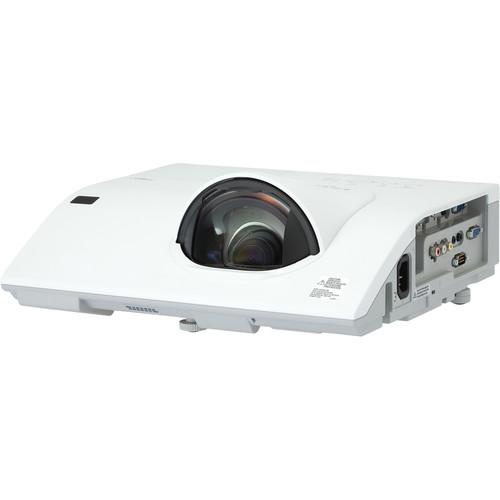

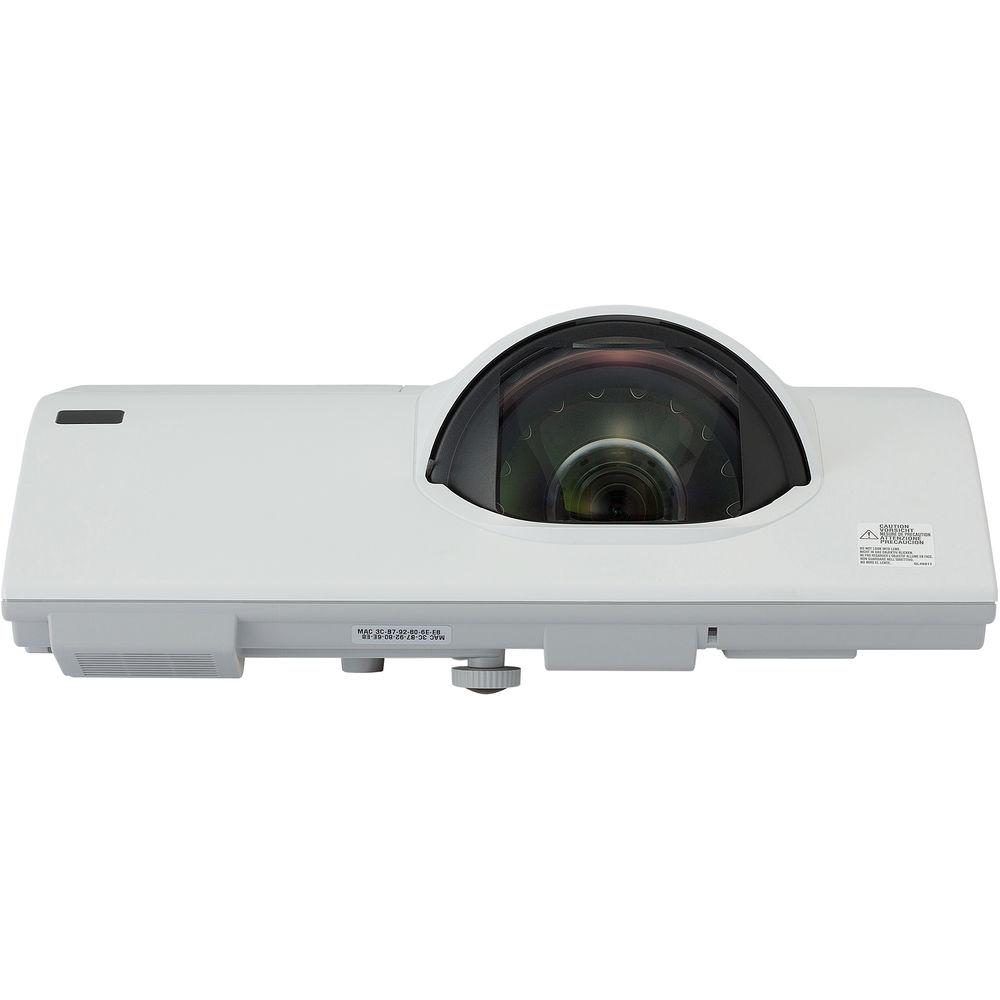

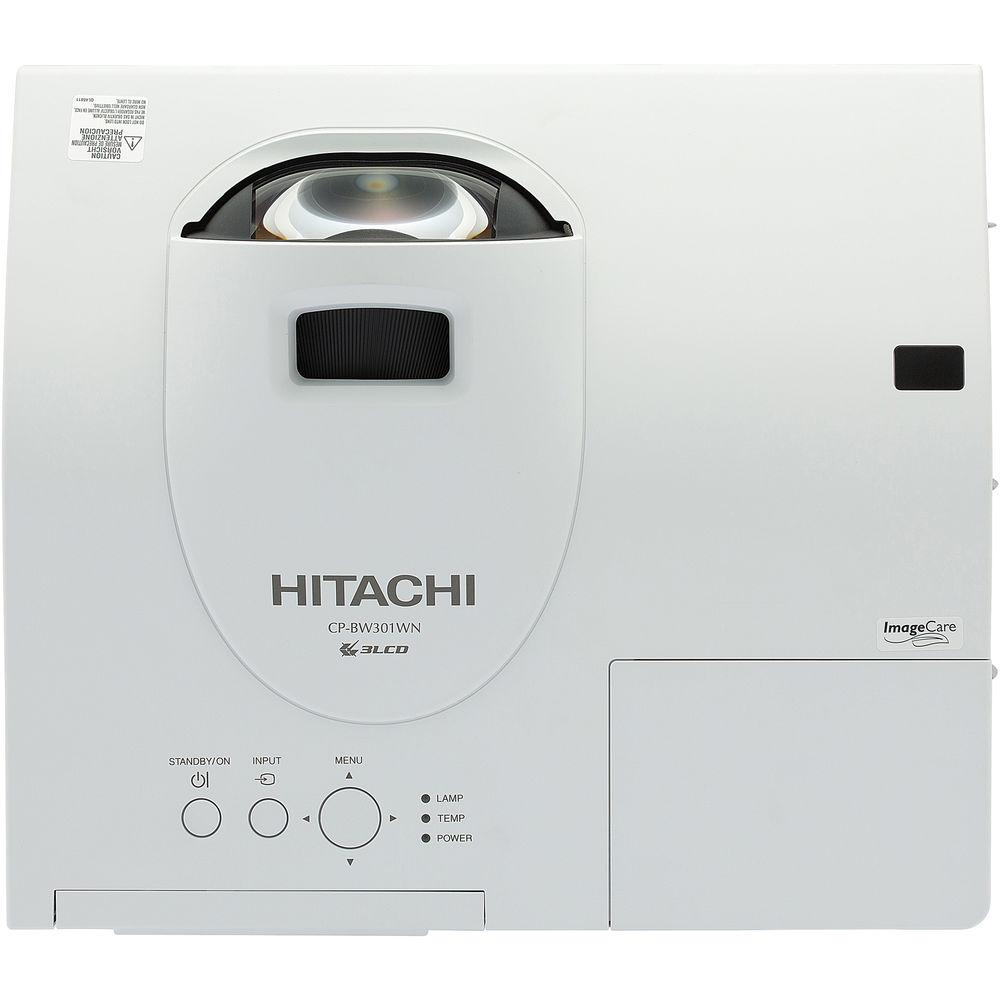

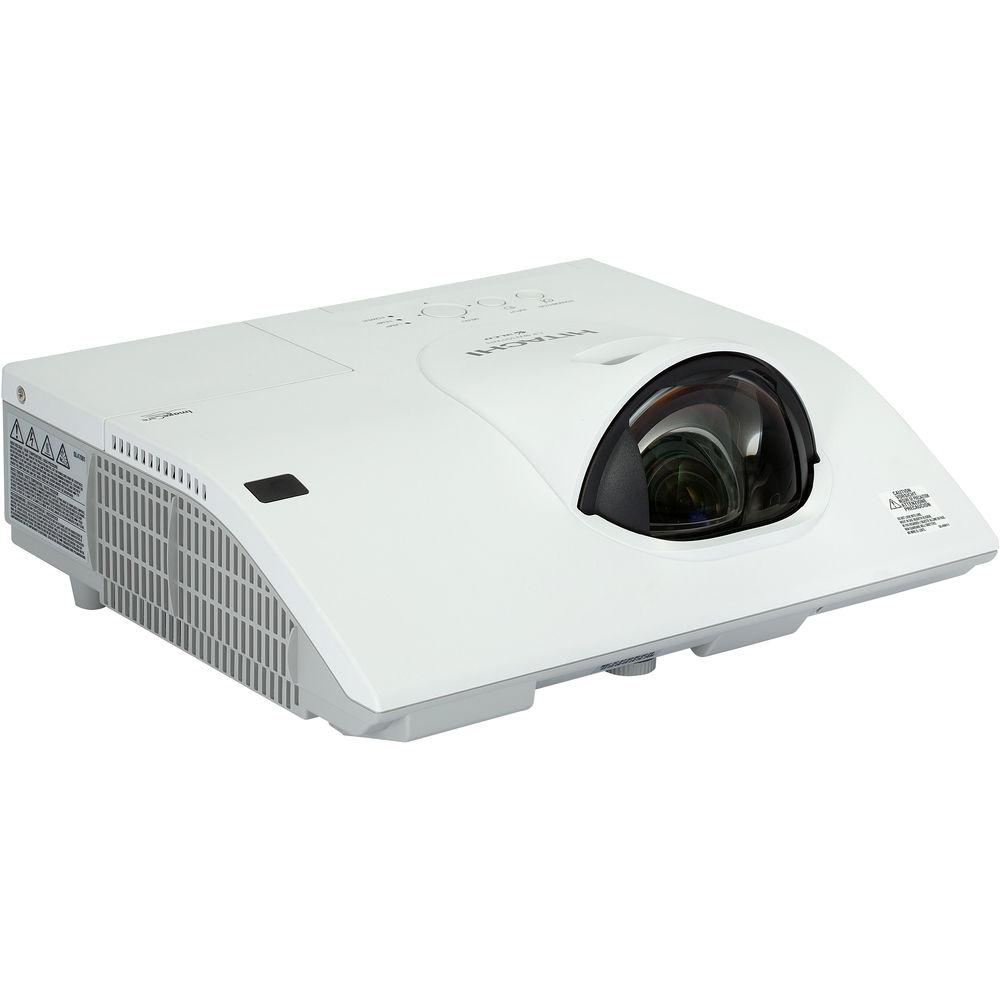

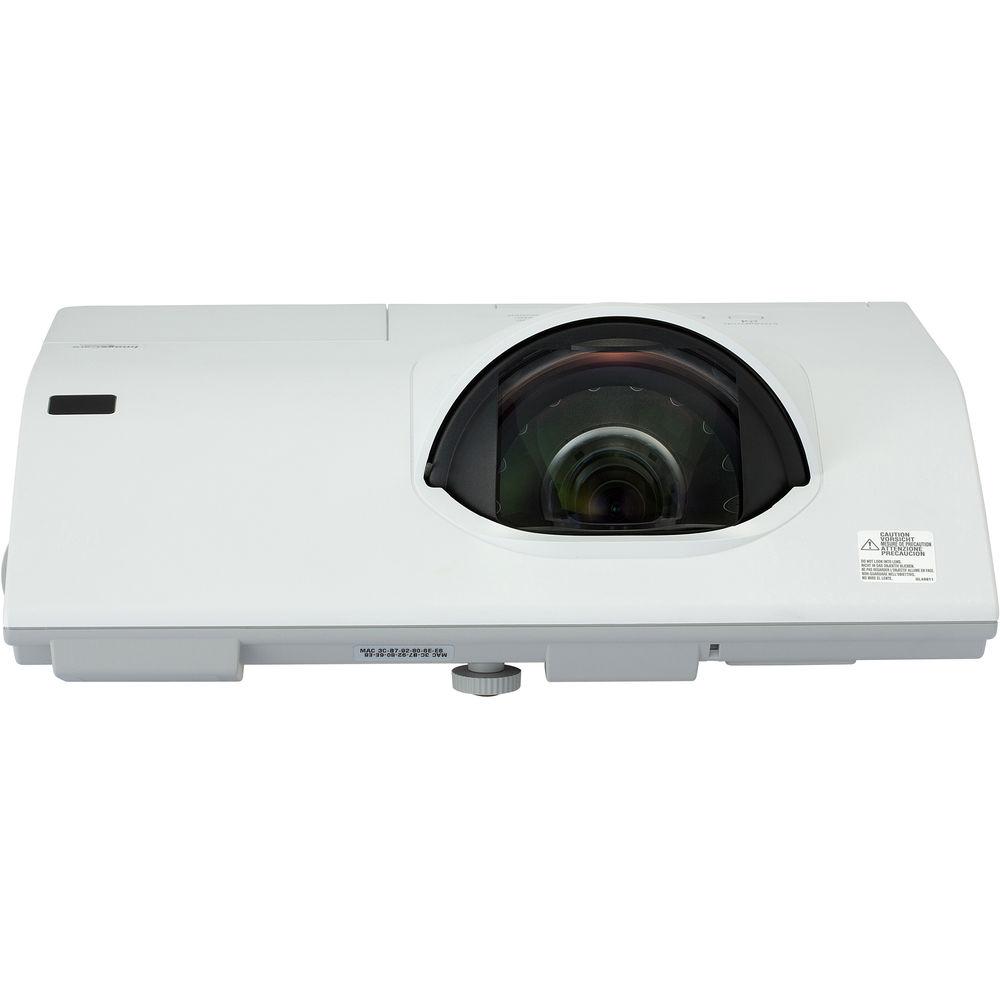

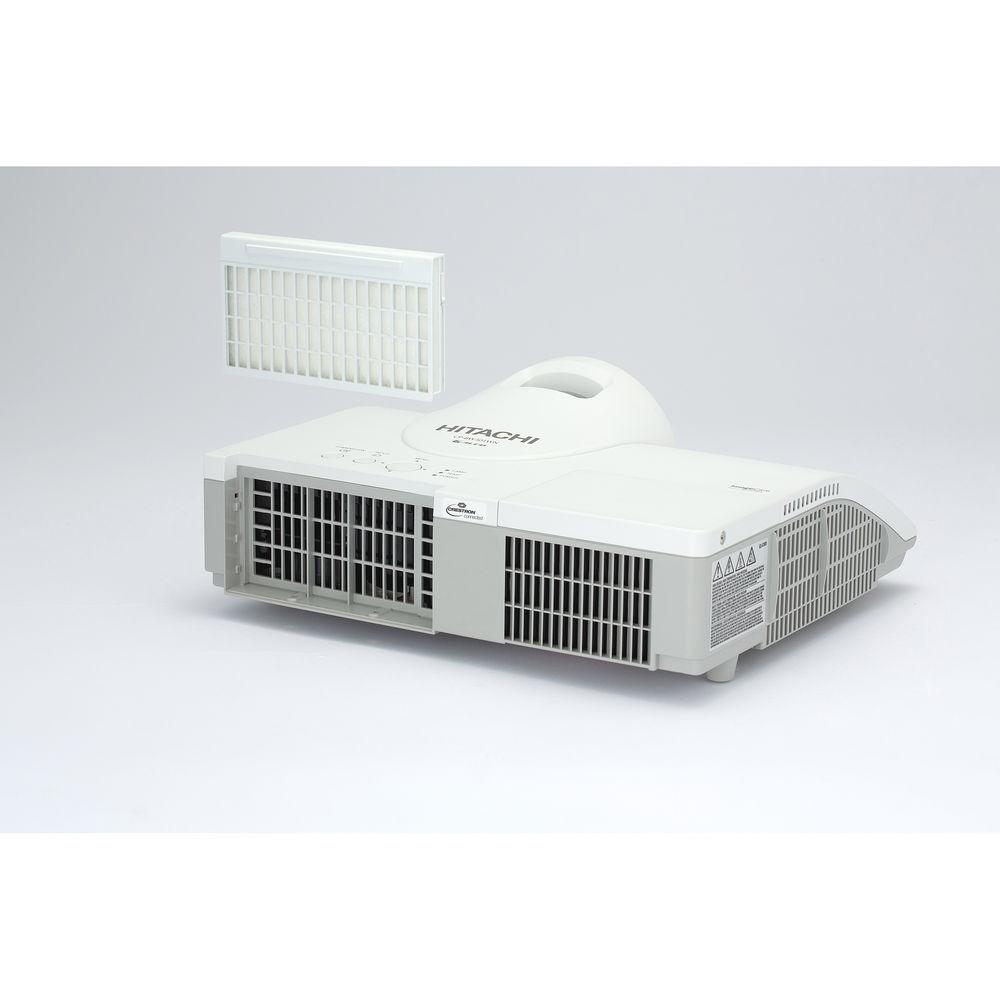

User Manual for Hitachi CP-BW301WN 3000-Lumen WXGA Short-Throw LCD Projector Click to enlarge the picture
Contents of the user manual for the Hitachi CP-BW301WN 3000-Lumen WXGA Short-Throw LCD
- Product category: Multimedia Projectors Hitachi
- Brand: Hitachi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hitachi Multimedia Projectors
 |
User manual for the Hitachi CP-BW301WN 3000-Lumen WXGA Short-Throw LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hitachi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hitachi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hitachi product will considerably shorten its lifespan!
|
Product description The Hitachi CP-BW301WN 3000-Lumen WXGA Short Throw LCD Projector has a native resolution of 1280 x 800 with a throw ratio of 0.4:1. It has two VGA, two HDMI, and composite video inputs; one of the two VGA inputs also serves as an output for loop-through. Its built-in 16W speaker will provide audio, so external audio may not be necessary. It is controllable via Ethernet, RS-232, or the included IR remote. - Accentualizer
- Hitachi's Accentualizer technology is designed to make pictures look more real by enhancing sharpness, gloss, and shade to make pictures as clear as they'd be on a flat-panel device. You can also adjust the effects of these three settings according to your surroundings so that the colors of projected images are the actual colors of the objects they represent.
- HDCR (High Dynamic Contrast Range)
- Using HDCR, blurred or dimmed images caused by room lighting or outside light sources are corrected, resulting in clear images even in bright rooms.
- Projector Quick Connection App for Mobile Devices
- Hitachi's application offers full projector control and provides the capability to display photos, document files, and website contents. Available for iOS and Android devices, the app works when the projector is connected to your network via your RJ-45 port or an optional USBWL11N wireless adapter.
- Network Control, Maintenance, and Security
- Embedded networking gives you the ability to manage and control multiple projectors over your LAN. Features include scheduling of events, centralized reporting, image transfer, and e-mail alerts for reactive and routine maintenance.
- Present Content via LAN
- Hitachi's suite of networking software allows you to easily send content directly from your computer to the projector via your LAN connection.
- Wireless Presentation Compatible
- Connect the projector to a computer or your network using the optional USBWL11N USB wireless adapter.
- Cloning Function
- Copy configuration settings, including gamma, keystone, and more, from one projector to others of the same model via USB memory.
- Intelligent Eco and Saver Modes
- Automatically changes the brightness of the lamp according to the brightness level of the screen. Also, automatically changes the brightness of the lamp if there is no change in the screen image. Paired with ImageCare technology, these features are designed to give optimal picture performance with maximum energy savings.
- ImageCare Technology
- ImageCare is a lamp power control function that is designed to combine optimal picture performance with maximum energy savings by decreasing energy usage, improving contrast ratio, and lengthening lamp life.
- Computer-Less Presentation
- By using a USB memory stick or other storage device, you can use the projector without a computer. Menus are easy to see with a thumbnail display, plus there is also a slideshow function.
- PJMessenger
- PJMessenger allows you to send and display text messages and audio alerts on your networked projectors. It is an easy and efficient way to send announcements out to multiple units.
- PIN Lock / MyScreen / MyText
- PIN lock protection can limit projector users. MyScreen PIN lock keeps captured images on the startup screen. You can set any name or logo to MyScreen, clearly identifying ownership. MyText provides the ability to write text on the startup screen such as model name, serial number, or location.
- Input Source Naming
- Rename your input sources in more descriptive terms instead of the factory default names.
- Microphone Input
- A microphone can be used via the jack located on the input panel, allowing for more dynamic presentations even in standby mode.

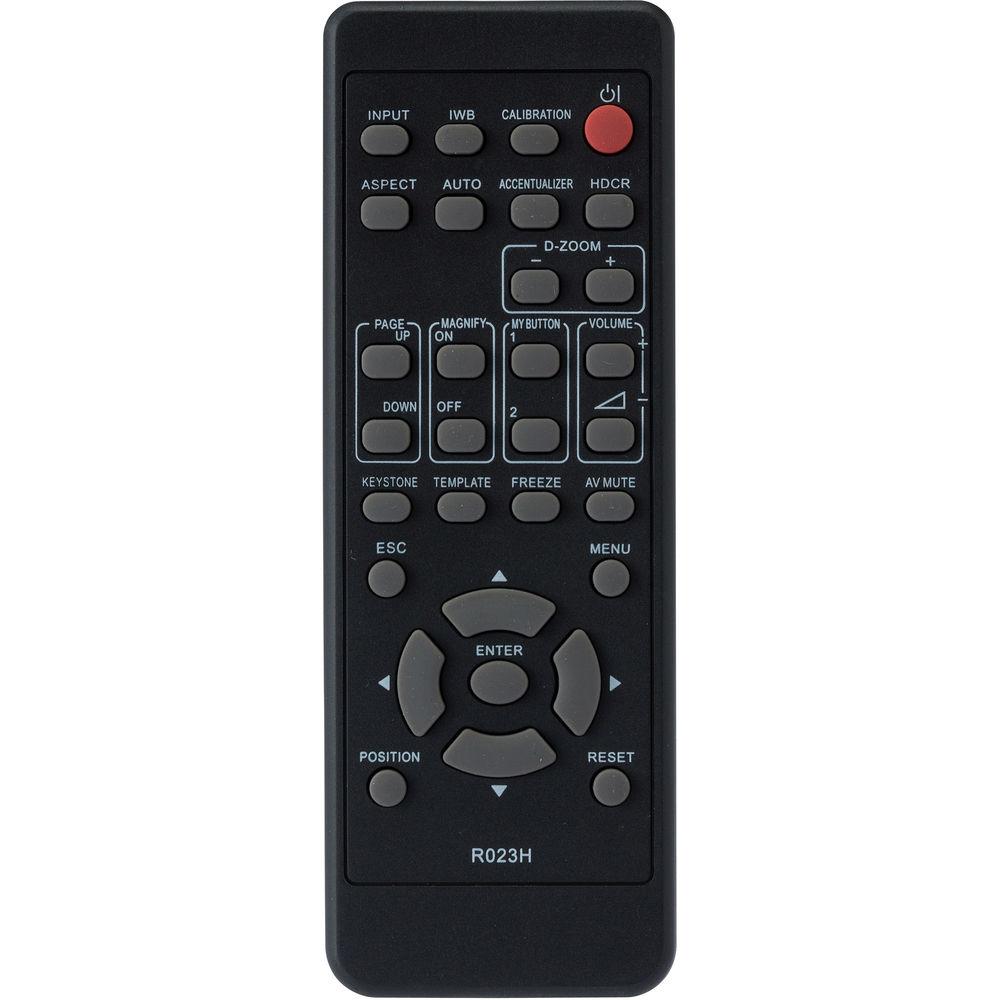

UPC: 050585154889 In the Box Hitachi CP-BW301WN 3000-Lumen WXGA Short-Throw LCD Projector HL03035 Replacement Remote Control for CP-BX301WN & CP-BW301WN Projectors bsquuquvfcwsvzfcafssssavsrqfqfb 2 x AA Batteries Computer Cable Power Cord Lens Cover Application CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hitachi CP-BW301WN 3000-Lumen WXGA Short-Throw LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHitachi CP-BW301WN Specs | | | Display System | 3-Chip LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | VGA
SVGA
XGA
WXGA
WXGA+
SXGA
SXGA+
UXGA
MAC16 | | Max Brightness | 3000 Lumens | | Aspect Ratio | Native: 16:10
Supported: 4:3
Supported: 16:9 | | Contrast Ratio | 10000:1 Using active IRIS | | DLP Link 3D | None | | Supported 3D Formats | None | | Color Depth | 8-Bit (16.78 Million Colors) | | Scan | Horizontal: 15 - 106 kHz
Vertical: 50 - 120 Hz | | | | Focus | Manual | | Throw Distance | 19 - 53" / 48.26 - 134.62 cm | | Throw Ratio | 0.4:1 | | Projection Size | 60 - 150" / 152.40 - 381.00 cm | | | | Keystone Correction | Horizontal: ± 5°

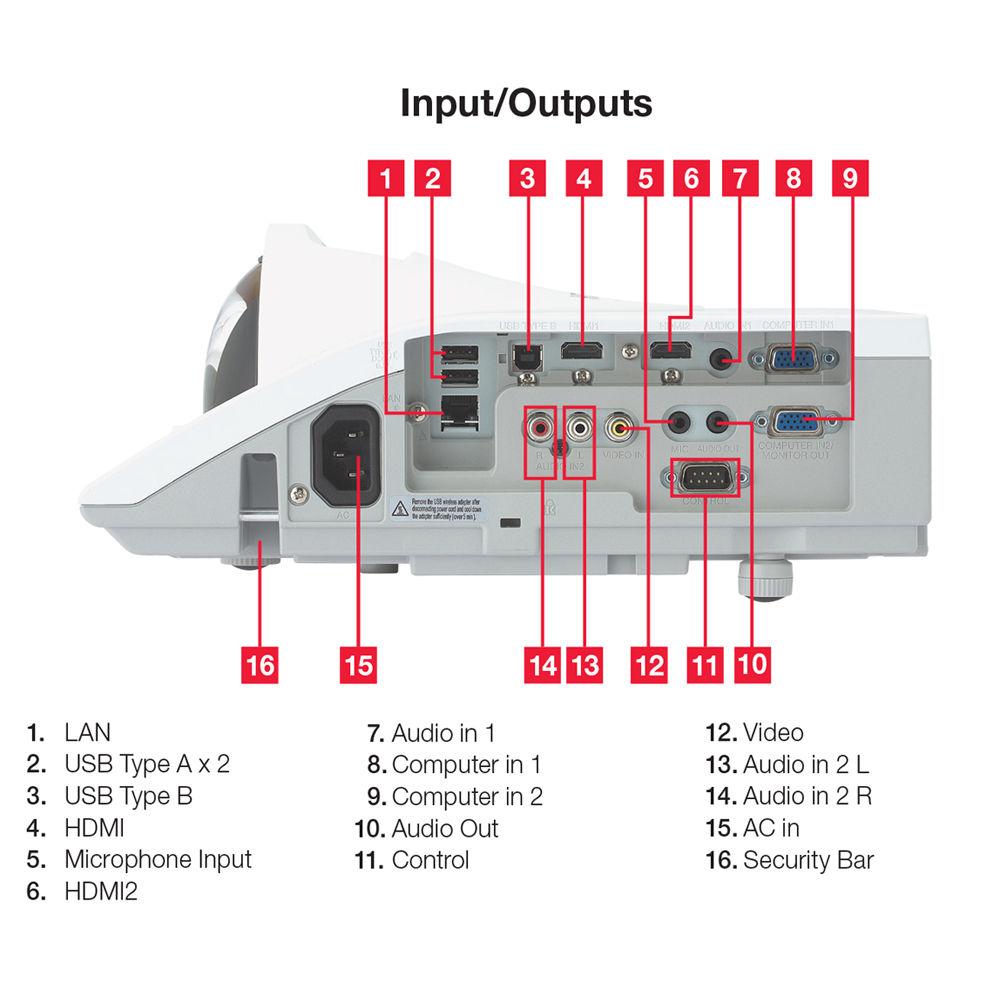

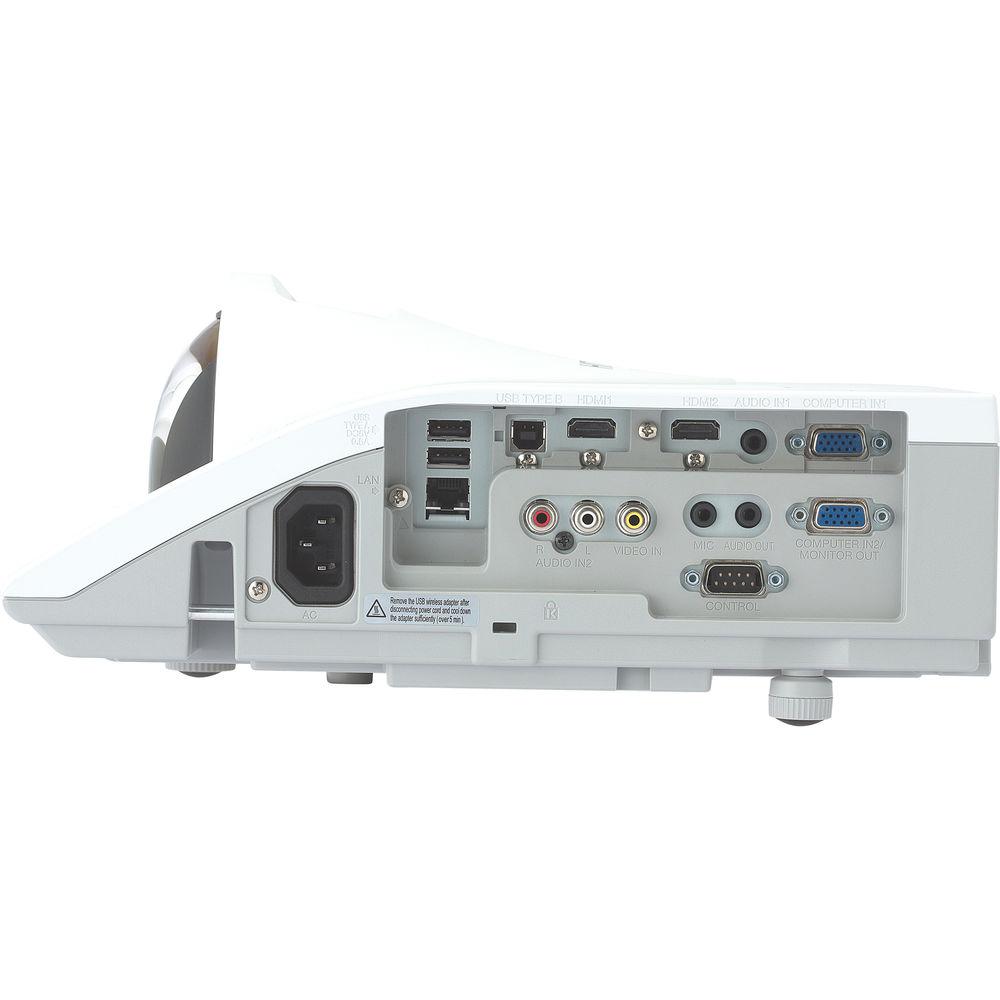

Vertical: ± 5° | | Picture-in-Picture | None | | Ceiling Mountable | Yes | | Built-In Speaker | Yes | | Speaker Power | 16W | | Closed Captioning | Yes | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Input/Output)
1 x Composite (RCA) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x 1/8" (3.5 mm) Mini Microphone (Input)
1 x Ethernet (RJ45) LAN (Input)
2 x USB Type-A Female (Input)
1 x USB Type-B Female (Input)
1 x RS-232C (Unspecified Connector) Control (Input) | | Internal Storage | None | | Wireless LAN / Wi-Fi | No, Optional Adapter Available With optional USBWL11N wireless adapter. | | | | Light Source | Lamp (1 x UHP) | | Lamp Power | 250 W | | Expected Lamp Life | Medium Brightness: 4000 Hours
Low Brightness: 6000 Hours | | Security | Cable Lock Slot
Keypad Lock
Password Protection
Security Bar | | Supported Photo File Types | BMP, GIF, JPEG | | Supported Video File Types | AVI, MOV | | Supported Languages | Arabic
Brazilian Portuguese
Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Persian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: <360 W | | Temperature | Operating
32 to 104°F (0 to 40°C) | | Dimensions (W x H x D) | 13.6 x 11.9 x 3.4" / 34.5 x 30.2 x 8.6 cm Excluding protruding parts | | Weight | 8.4 lb / 3.8 kg Approximately | | | | Package Weight | 11.95 lb | | Box Dimensions (LxWxH) | 18.3 x 14.7 x 7.7" |
