User Manual for Hitachi CP-DX301 3000-Lumen XGA DLP Projector Click to enlarge the picture
Contents of the user manual for the Hitachi CP-DX301 3000-Lumen XGA DLP Projector
- Product category: Multimedia Projectors Hitachi
- Brand: Hitachi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hitachi Multimedia Projectors
 |
User manual for the Hitachi CP-DX301 3000-Lumen XGA DLP Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hitachi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hitachi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hitachi product will considerably shorten its lifespan!
|
Product description Designed primarily for use in classrooms, the 3D-ready Hitachi CP-DX301 3000-Lumen XGA DLP Projector features a 1024 x 768 native resolution with a 10,000:1 contrast ratio. It has a 1.96 to 2.15:1 throw ratio with 1.1x zoom to add some variety to your placement options. The projector offers VGA, S-video, HDMI, RCA composite, and two VGA video inputs, with a VGA output for loop-through and a built-in 2W mono speaker. It is controllable via RS-232 or the included IR remote. - 3,000 ANSI Lumens Light Output
- The light output specification measures the brightness of light output, and with 3,000 ANSI lumens the result is bright, clear images.
- 10000:1 Contrast Ratio
- Contrast can be automatically controlled through an active iris to add depth perspective during both bright and dark scenes.
- HDMI Input with HDCP
- Digital connectivity allows for highest image quality from your HD device. The CP-DX301 features HDMI with HDCP compliance.
- 6,000 Hour Lamp Life in Eco Mode
- Another key to low total cost of ownership is a long life lamp. The lamp is rated at 4500 hours in standard mode and 6000 hours in Eco mode.
- Power Saving Standby Mode
- Reduces the standby power consumption to less than 0.5W.
- ImageCare Technology
- ImageCare is a lamp power control function that combines picture performance with energy savings by decreasing energy usage, improving contrast ratio, and lengthening lamp life. The result is a lower total cost of ownership and decreased maintenance cost.
- Intelligent Eco and Saver Modes
- These modes automatically change the brightness of the lamp according to the brightness level of the screen. Also, they automatically change the brightness of the lamp if there is no change in the screen image. Using ImageCare technology, these features are designed to provide optimal picture performance with maximum energy savings.
- BrilliantColor
- BrilliantColor technology offers color processing to enhance color performance for rich, vibrant, and accurate colors.
- DLP Technology
- The DLP chip is a digital semiconductor that contains millions of microscopic mirrors. It is designed to enhance both brightness and color.
- Easy-Maintenance Design
- Having the lamp door on top of the projector makes it easy to change the lamp or filter when the projector is mounted to the ceiling.
- 3D Capable
- This DLP projector offers 3D viewing, which can engage your students and improve the learning process. 3D glasses and a special graphics card are required for 3D viewing and are not included with the projector.
- Wall Color Correction
- Wall Color Correction is designed to correct the color of images projected on surfaces that are not white to prevent color differences between the source and projections. Five wall color modes include light yellow, light green, blue, black board, and pink.
UPC: 050585154643 In the Box Hitachi CP-DX301 3000-Lumen XGA DLP Projector Remote Control with Battery VGA Cable Power Cord Limited 3-Year Warranty on Projector Limited 90-Day or 250-Hour Warranty on Lamp, Whichever Comes First Guides & Manuals ccrfwaeuzfbtyeudcqfcybbsfrrxbrs Table of Contents
|
Upload User Manual
Have you got an user manual for the Hitachi CP-DX301 3000-Lumen XGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Hitachi CP-DX301 3000-Lumen XGA DLP Projector can be downloaded in PDF format at the link stated below.
Technical parametersHitachi CP-DX301 Specs | | | Display System | -Chip DMD DLP | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | VGA
SVGA
XGA
WXGA
WXGA+
SXGA
SXGA+
WSXGA+
USXGA
WUXGA
MAC16 | | Max Brightness | 3000 Lumens | | Aspect Ratio | Native: 4:3
Supported: 16:9 | | Contrast Ratio | 10000:1 | | Supported 3D Formats | Frame Sequential
Frame Packing
Side by Side
Top Bottom | | Scan | Horizontal: 31.5 to 102 kHz

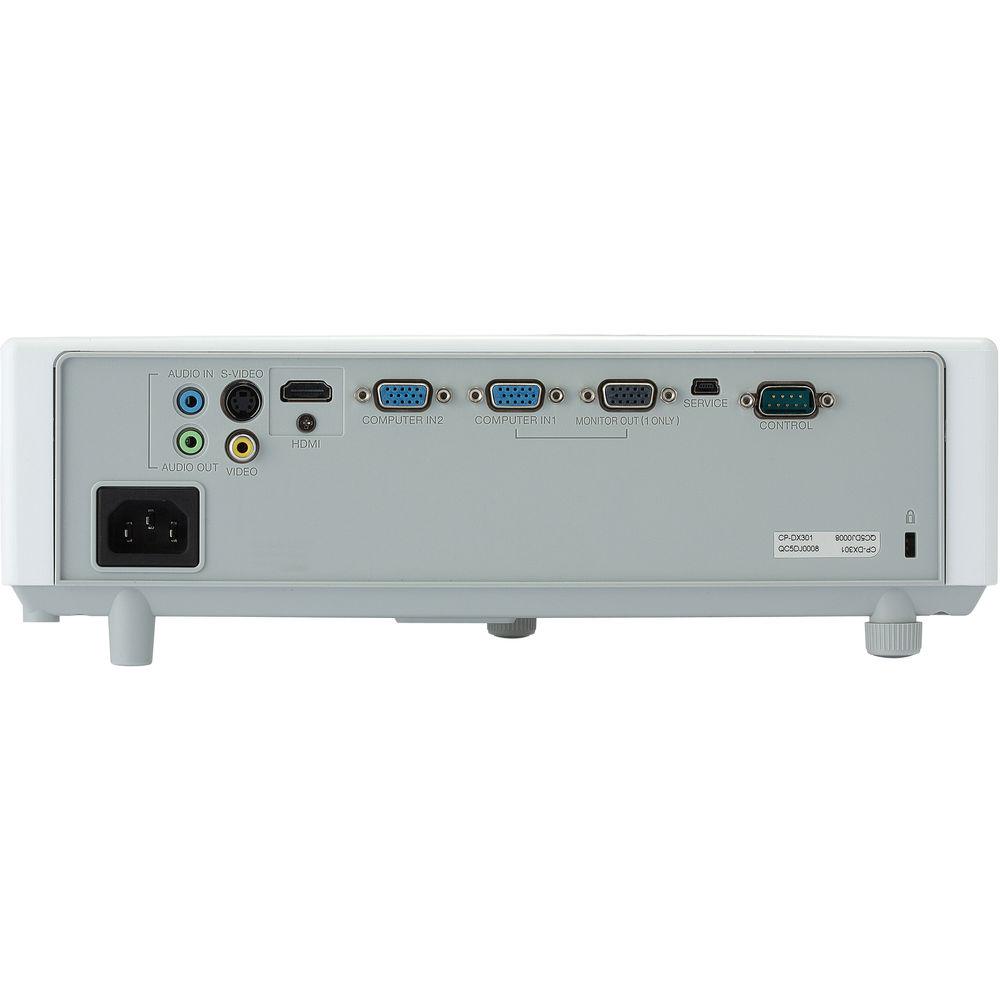

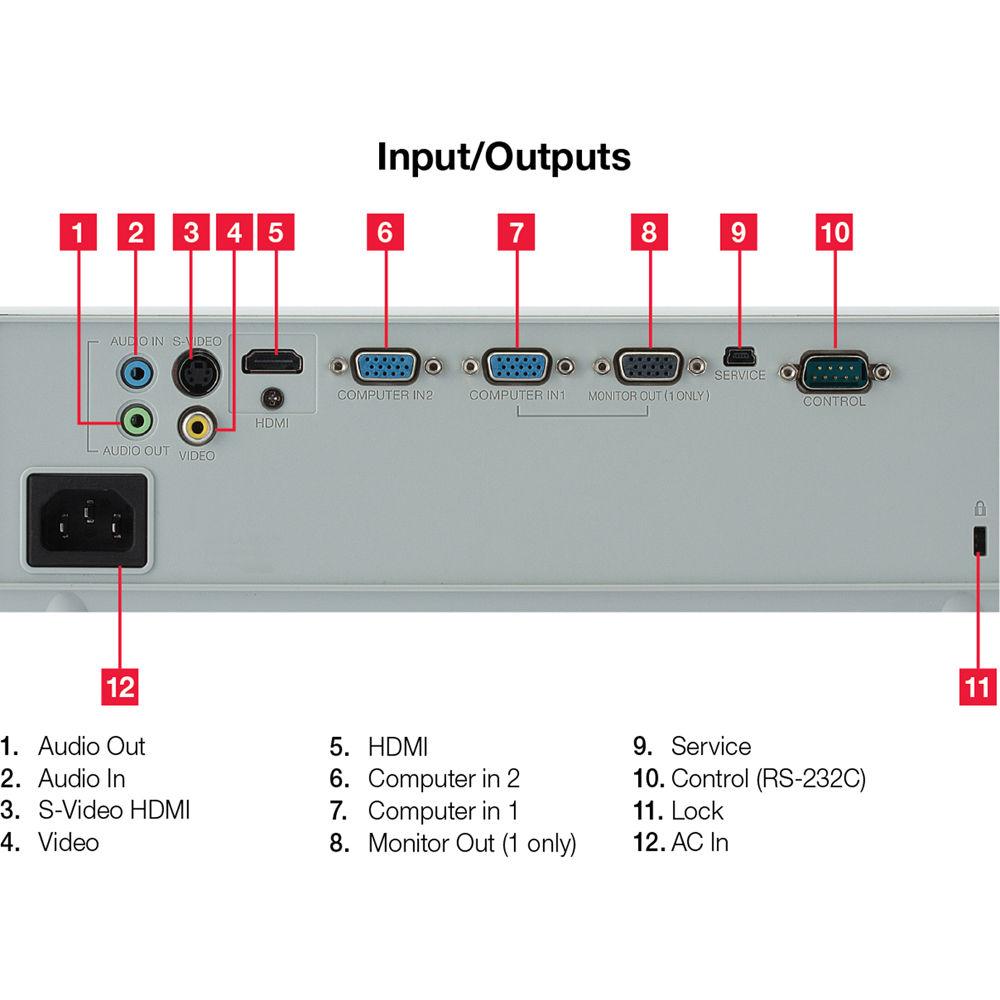

Vertical: 59.9 to 120 Hz | | | | Focus | Manual | | Throw Distance | 94 - 310" / 238.76 - 787.4 cm | | Throw Ratio | 1.96 - 2.15:1 | | Projection Size | 60 - 250" / 152.40 - 635.00 cm | | | | Keystone Correction | -Vertical: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Closed Captioning | Yes | | | | Inputs/Outputs | 1 x HDMI Video (Input)
2 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x S-Video (4-Pin DIN) Video (Input)
1 x Composite (RCA) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x USB Service (Input)
1 x RS-232C (Unspecified Connector) Control (Input) | | Wireless LAN / Wi-Fi | None | | | | Lamp Power | 196 W | | Expected Lamp Life | Medium Brightness: 4500 Hours
Low Brightness: 6000 Hours | | Security | Cable Lock Slot
Password Protection | | Power Consumption | Medium Brightness: 250 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 10007' / 3050 m | | Temperature | Operating
32 to 95°F (0 to 35°C)
Humidity: 10 - 90% | | Dimensions (W x H x D) | 12.4 x 3.5 x 8.2" / 31.5 x 8.9 x 20.8 cm | | Weight | 5.1 lb / 2.3 kg Approximate | | | | Package Weight | 6.8 lb | | Box Dimensions (LxWxH) | 16.0 x 12.5 x 7.0" |
