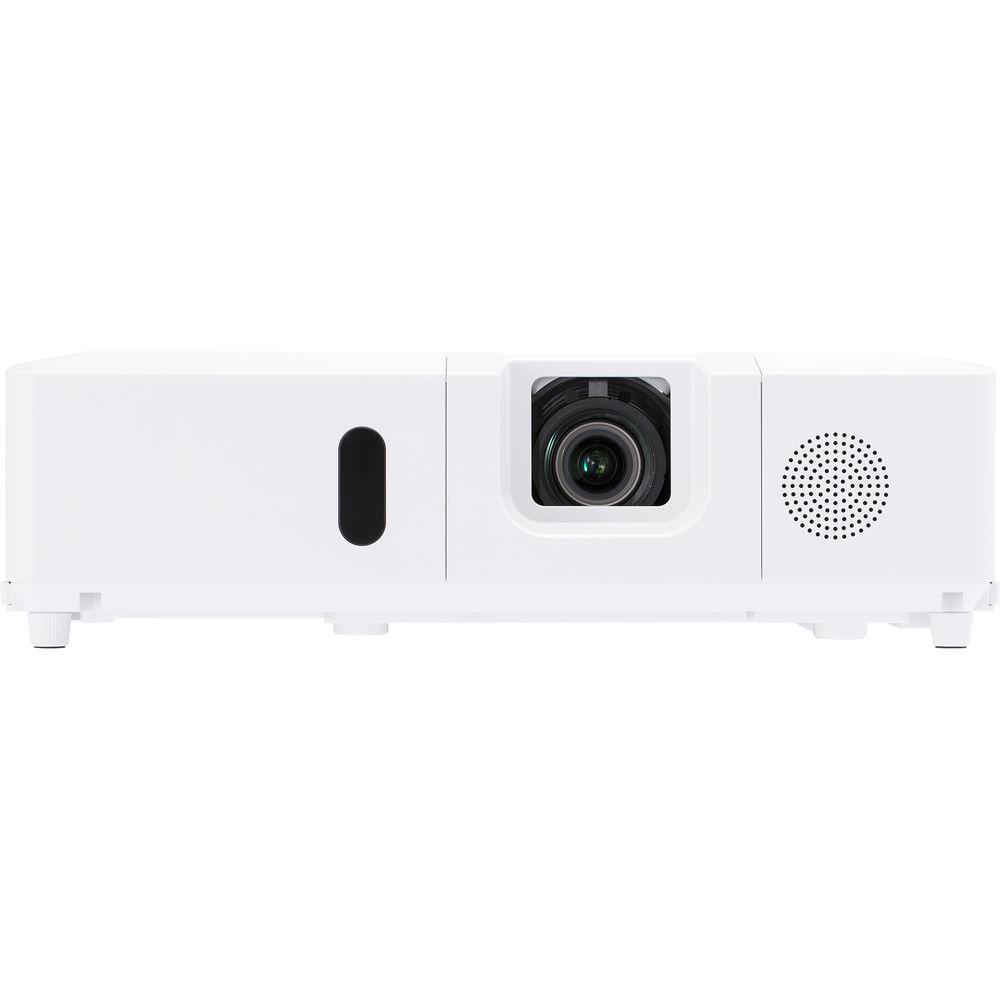

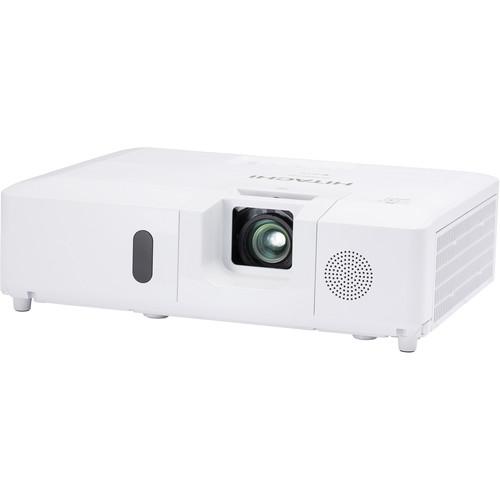

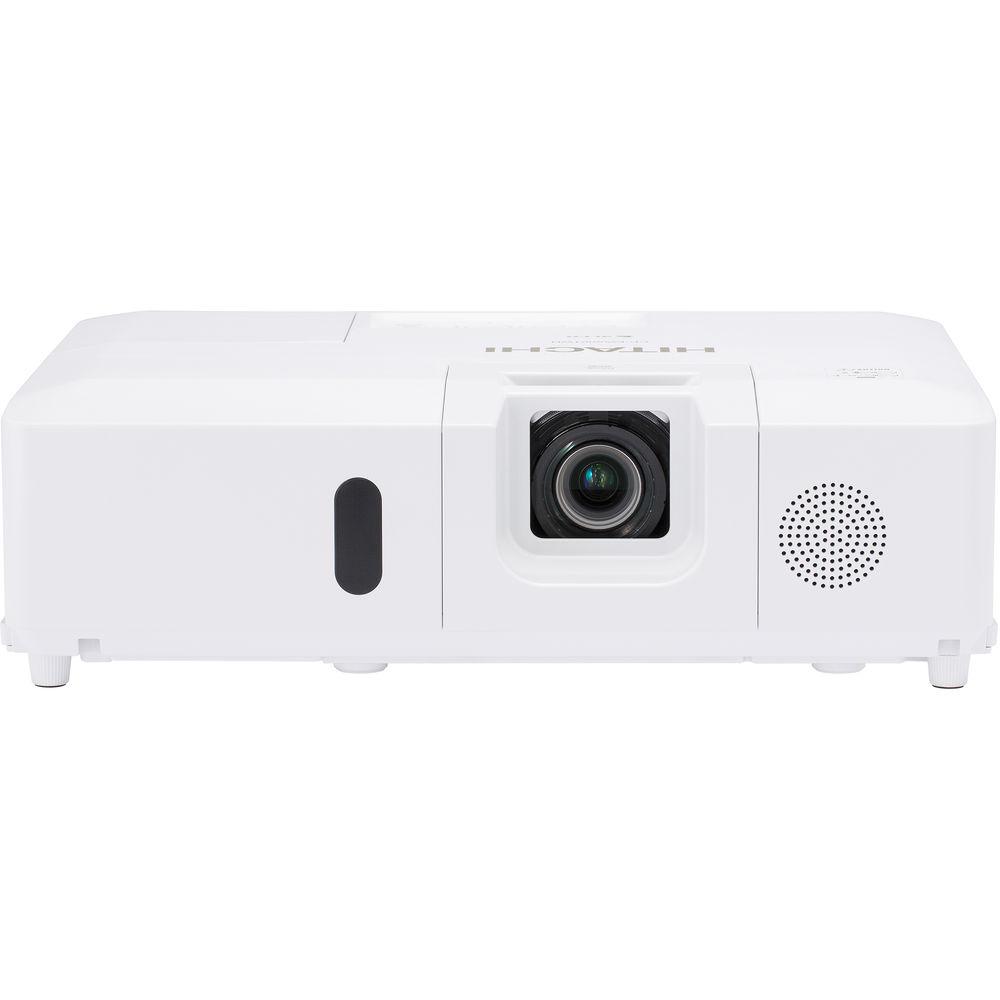

User Manual for Hitachi CP-EU4501WN 4500-Lumen WUXGA 3LCD Projector Click to enlarge the picture
Contents of the user manual for the Hitachi CP-EU4501WN 4500-Lumen WUXGA 3LCD Projector
- Product category: Multimedia Projectors Hitachi
- Brand: Hitachi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hitachi Multimedia Projectors
 |
User manual for the Hitachi CP-EU4501WN 4500-Lumen WUXGA 3LCD Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hitachi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hitachi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hitachi product will considerably shorten its lifespan!
|
Product description Present in rooms with ambient light with the Hitachi CP-EU4501WN 4500-Lumen WUXGA 3LCD Projector. It features 4500 lumens of brightness to overcome ambient light in many situations, and its 1920 x 1200 WUXGA resolution help keep images and text clear at most viewing distances.
Composite video, two VGA, and two HDMI inputs help ensure compatibility with a multitude of source types. The second VGA input can alternately be used as an output to daisy-chain multiple projectors or displays. A built-in 16W speaker eliminates the need for an external sound system, though you can use one with the analog audio inputs and output. The projector is controllable via Ethernet, RS-232, or the included IR remote control. Image Quality Features - ACCENTUALIZER and HDCR
- The Accentualizer is designed to make pictures look more real by enhancing shade, sharpness, and gloss. The HDCR function is engineered to correct blurred images caused by room lighting or external light sources. HDCR creates an effect similar to increasing contrast, helping to create clear images even in bright rooms.
- Image Optimizer
- The Image Optimizer is designed to maintain visibility of an image through automatic image correction, in accordance with lamp consumption.
Convenient Functions - Perfect Fit
- The Perfect Fit function allows you to adjust the positions of the four corners and four sides of the projected image, providing remote correction of image distortions such as pincushion and barrel distortion.
- Vertical and Horizontal Keystone Correction
- You can correct misaligned images automatically with vertical and horizontal keystone correction.
- 1.6x Zoom Lens
- Place the projector near the back of the room for added flexibility with the 1.6x manual zoom lens.
- Two HDMI Inputs
- Two HDMI inputs allow you to input two digital HD sources.
- MHL Connectivity
- One HDMI input supports the Mobile High-Definition Link (MHL), allowing you to mirror the screen of your compatible smartphone or tablet.
- Schedule Setting
- You can schedule routine and special projector events including power on, power off, input selection, and other settings.
Network Functions - Optional Wireless Connectivity
- The CP-EU4501WN is capable of wireless connectivity with an optional USB wireless adapter. This adapter is sold separately and allows you to control the projector via a network or project the screen of any computer that has LiveViewer software installed.
- Multi-Projector
- You can project the same image to up to 12 projectors simultaneously, a feature well-suited for meetings and lectures in large venues where a single screen is not sufficient.
- Moderator Control Mode
- Setting one computer as the moderator (host), makes it possible to project the image from up to 50 multiple computer (clients) that are connected to the projector.
- Projector Quick Connection
- You can project images, documents, and photos from a tablet or smartphone on which the Projector Quick Connection app is installed. This app allows you to control the projector with your compatible device.
- Remote Projector Monitoring and Control
- Hitachi's Projector Management Software (PJMan) gives you the ability to control, diagnose, and manage a single or group of compatible projectors. Functionality includes status monitoring, including power, lamp hours, temperature, and air filter conditions.
- AMX Device Discovery
- When integrated with an AMX Controller, the relevant communication modules and drivers are downloaded to the projector automatically.
- Email Alerts
- Email notifications can be sent out for routine maintenance and error conditions.
Reliability Features - Hybrid Filter
- The Hybrid Filter is designed to require less frequent maintenance and cleaning, making possible operation for up to 20,000 hours.
- 3LCD Chips with Inorganic Alignment Layers
- The CP-EU4501WN incorporates three LCD panels with inorganic alignment layers that are designed to be light resistant, helping to increase brightness and contrast ratio for smooth images and enhanced readability.
- Designed for Long Lamp Life
- Using Eco Mode, lamp life is extended to approximately 6000 hours, which is equivalent to the projector being used for three hours a day over a period of ten years.
UPC: 050585155824 In the Box Hitachi CP-EU4501WN 4500-Lumen WUXGA 3LCD Projector Remote Control 2 x AA Batteries Computer Cable HDMI Cable Holder Adapter Cover Cable Tie Lens Cover Security Label Application CD Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hitachi CP-EU4501WN 4500-Lumen WUXGA 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHitachi CP-EU4501WN Specs | | | Display System | 3-Chip 0.64" LCD | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | Minimum: VGA
Maximum: WUXGA | | Max Brightness | 4500 Lumens | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 16,000:1 | | Scan | Horizontal: 15 to 106 kHz
Vertical: 24 to 120 Hz | | | | Focus | Manual | | Optical Zoom | Manual: 1.6x | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Vertical

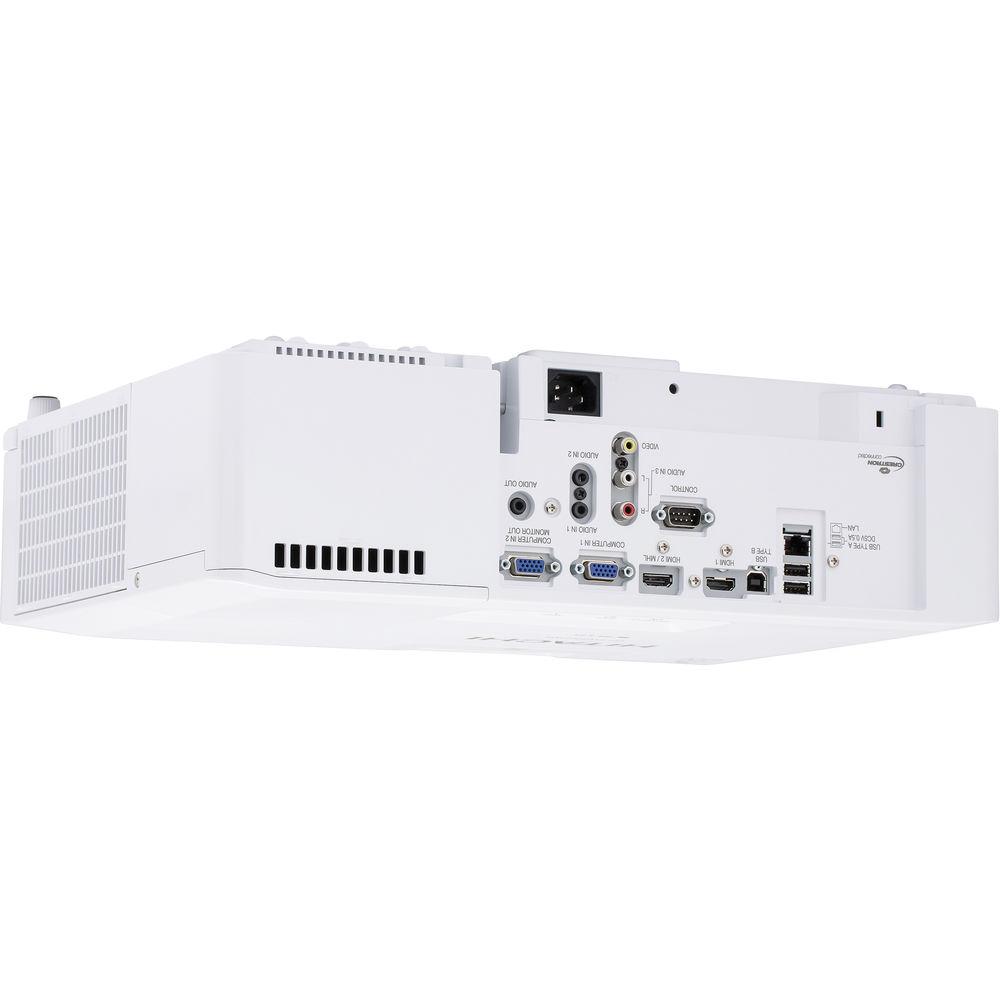

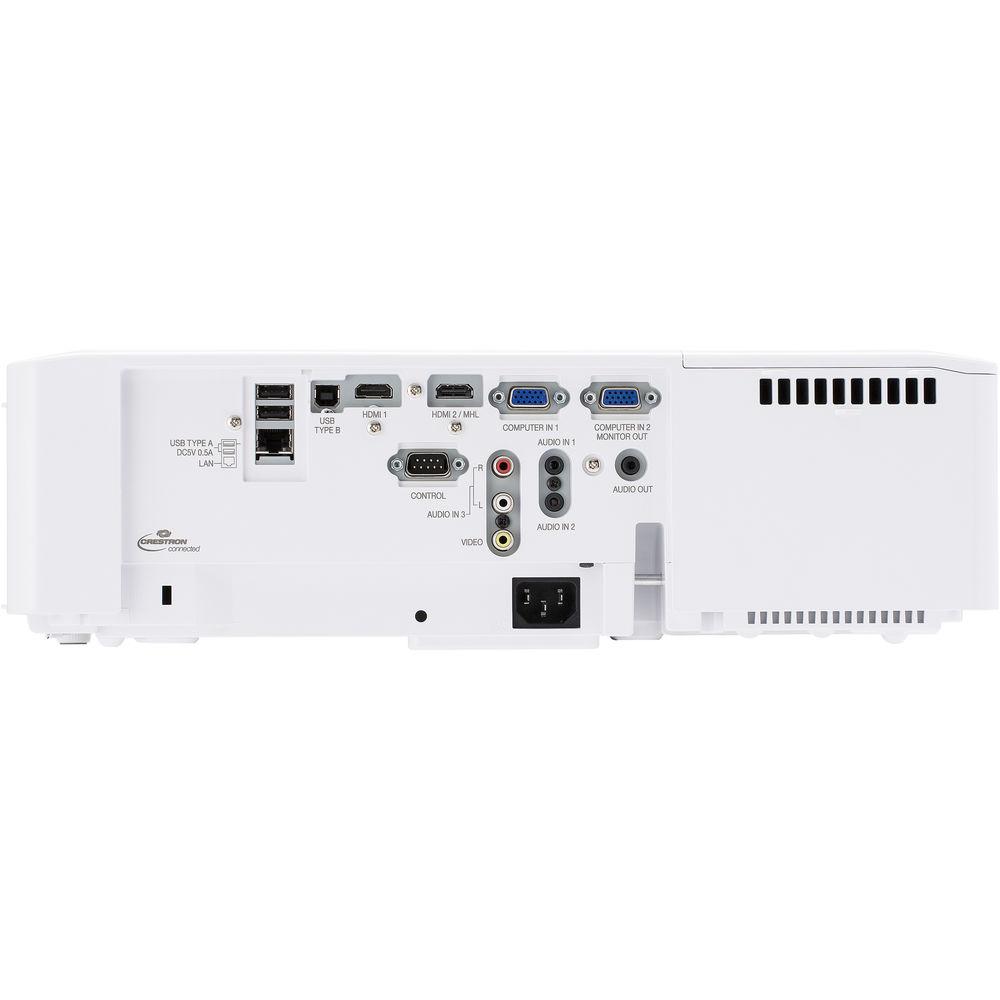

Horizontal | | Ceiling Mountable | Yes | | Built-In Speaker | Yes | | Speaker Power | 16W | | | | Inputs/Outputs | 1 x HDMI (HDMI Type-A) Audio, Video Input
1 x HDMI with MHL Support (HDMI Type-A) Audio, Video Input
1 x VGA (DE-15) Video Input
1 x VGA (DE-15) Video Input/Output
1 x Composite (RCA) Video Input
2 x RCA Audio Input
2 x 1/8" (3.5 mm) Mini Audio Input
1 x 1/8" (3.5 mm) Mini Audio Output
1 x RS-232 (DE-9) Control Input
3 x USB 2.0 (USB Type-A) Control Input
1 x Ethernet (RJ45) LAN Input | | Memory Card Slot | None | | | | Light Source | Lamp | | Lamp Power | 280 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 2.1 to 4.3 A | | Power Consumption | Full Brightness: 410 W
Full Brightness: <0.35 W | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 10 - 90% | | Dimensions (W x H x D) | 16.3 x 4.8 x 12.4" / 413.0 x 123.0 x 315.0 mm Including protrusions
16.0 x 4.3 x 12.3" / 407.0 x 108.0 x 312.0 mm Excluding protrusions | | Weight | 11.7 lb / 5.3 kg Approximately | | | | Package Weight | 17.25 lb | | Box Dimensions (LxWxH) | 21.9 x 18.7 x 9.5" |
