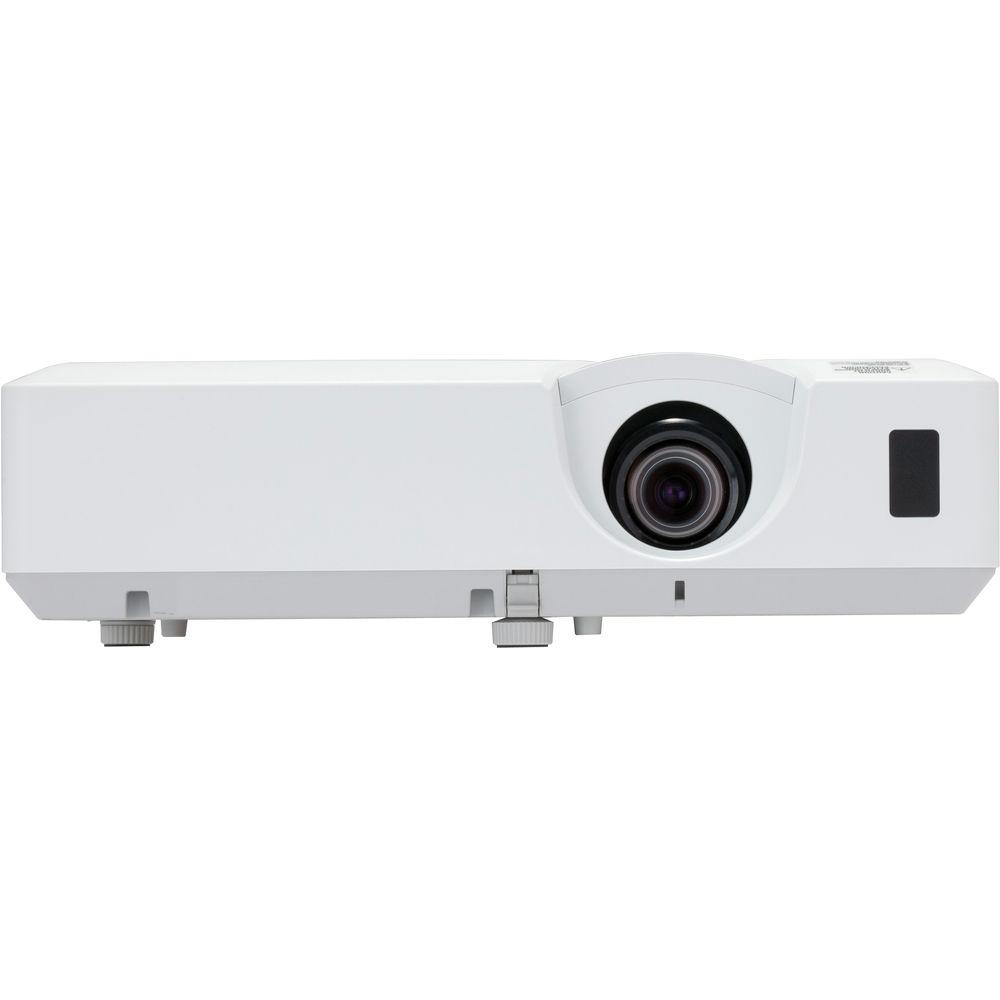

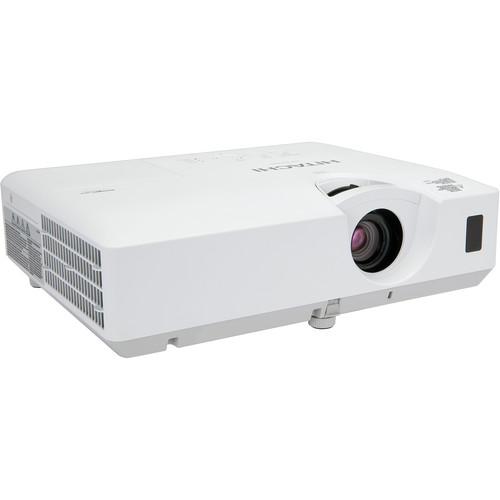

User Manual for Hitachi CP-EW302N 3000-Lumen WXGA 3LCD Projector Click to enlarge the picture
Contents of the user manual for the Hitachi CP-EW302N 3000-Lumen WXGA 3LCD Projector
- Product category: Multimedia Projectors Hitachi
- Brand: Hitachi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hitachi Multimedia Projectors
 |
User manual for the Hitachi CP-EW302N 3000-Lumen WXGA 3LCD Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hitachi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hitachi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hitachi product will considerably shorten its lifespan!
|
Product description Present in rooms with ambient light with the Hitachi CP-EW302N 3000-Lumen WXGA 3LCD Projector. It features 3000 lumens of color and white brightness to overcome ambient light in many situations, and its 1280 x 800 WXGA resolution will help keep images and text clear at most viewing distances.
HDMI, VGA, and composite video inputs help ensure compatibility with a multitude of source types. The second VGA input can alternately be used as an output to daisy-chain multiple projectors or displays. A built-in 16W speaker eliminates the need for an external sound system, though you can use one with the analog audio inputs and output. The projector is controllable via Ethernet, RS-232, or the included IR remote control. - ImageCare Technology
- ImageCare is a lamp power control function that combines picture performance with energy savings by decreasing energy usage, enhancing contrast ratio, and lengthening lamp life. The result is a lower total cost of ownership and reduced maintenance costs.
- Intelligent Eco and Saver Modes
- These modes automatically change the brightness of the lamp according to the brightness level of the screen. They also automatically change the brightness of the lamp if there is no change in the screen image.
- PIN Lock / MyScreen / MyText
- PIN lock protection can limit projector users. MyScreen PIN lock keeps captured images on the startup screen. Users can set any name logo to MyScreen, clearly identifying ownership. MyText provides the ability to write text on the startup screen such as model name, serial number, or location.
- Network Control, Maintenance, and Security
- Embedded networking gives you the ability to manage and control multiple projectors over your LAN. Features include scheduling of events, centralized reporting, image transfer, and email alerts for reactive and routine maintenance.
UPC: 050585155442 In the Box Hitachi CP-EW302N 3000-Lumen WXGA 3LCD Projector Remote Control 2 x AA Batteries Computer Cable Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hitachi CP-EW302N 3000-Lumen WXGA 3LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHitachi CP-EW302N Specs | | | Display System | 3-Chip LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 3000 Lumens | | Aspect Ratio | Native: 16:10
Supported: 4:3
Supported: 14:9
Supported: 16:9 | | Dynamic Contrast Ratio | 2000:1 | | Color Depth | 8-Bit (16.78 Million Colors) | | Scan | Horizontal: 15 to 106 kHz
Vertical: 50 to 120 Hz | | | | Focus | Manual | | Optical Zoom | Manual: 1.2x | | Throw Distance | 35 - 453" / 88.9 - 1150.62 cm | | Throw Ratio | 1.5 - 1.8:1 | | Projection Size | 300.00 - 3000.00" / 762.00 - 7620.00 mm | | | | Keystone Correction | Vertical: ± 30° | | Built-In Speaker | Yes | | Speaker Power | 16W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Input/Output)
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
2 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x Ethernet (RJ45) LAN (Input)
1 x USB Control (Input)
1 x RS-232C (Unspecified Connector) Control (Input) | | Wireless LAN / Wi-Fi | None | | | | Lamp Power | 225 W | | Expected Lamp Life | Medium Brightness: 5000 Hours
Low Brightness: 10,000 Hours | | Security | Cable Lock Slot
Password Protection
Security Bar | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 330 W | | Temperature | Operating
41 to 95°F (5 to 35°C) | | Dimensions (W x H x D) | 12.6 x 3.4 x 9.7" / 32.0 x 8.6 x 24.6 cm Excluding protruding parts | | Weight | 6.8 lb / 3.1 kg Approximate | | | | Package Weight | 9.5 lb | | Box Dimensions (LxWxH) | 14.8 x 12.6 x 6.3" |
