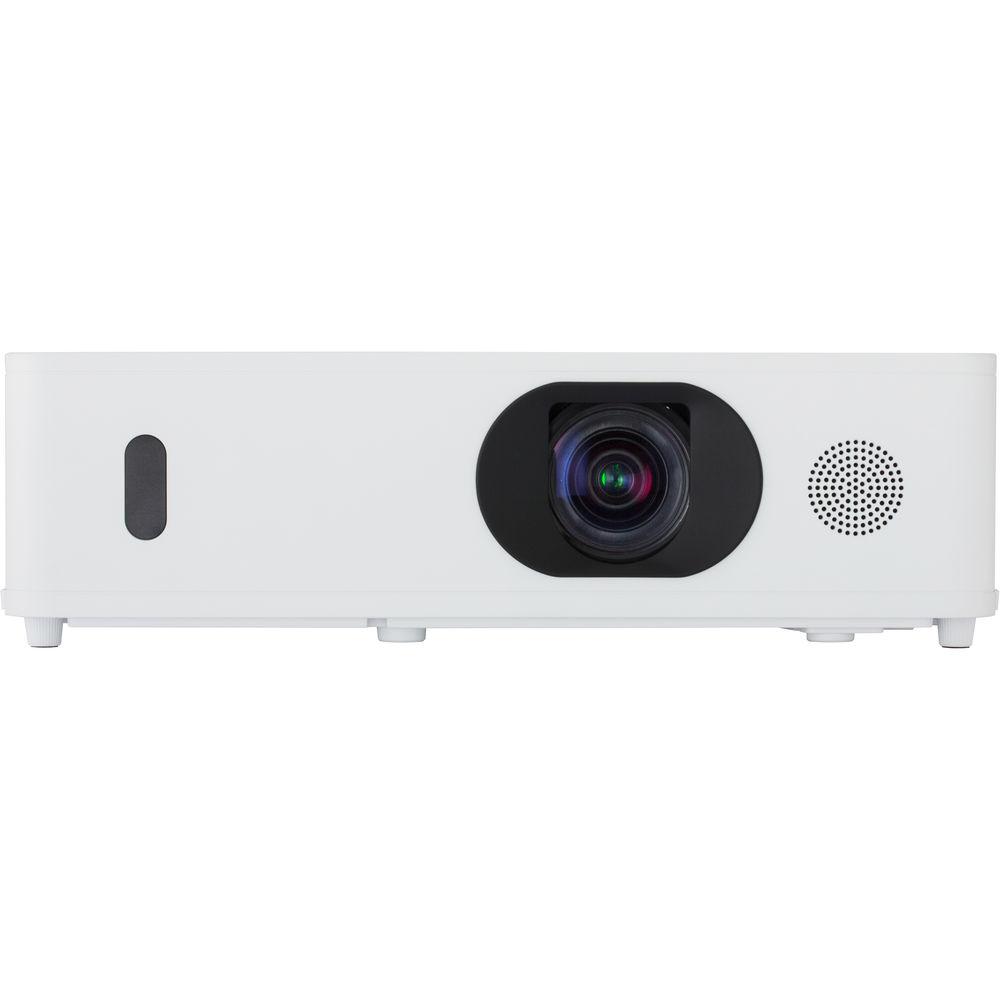

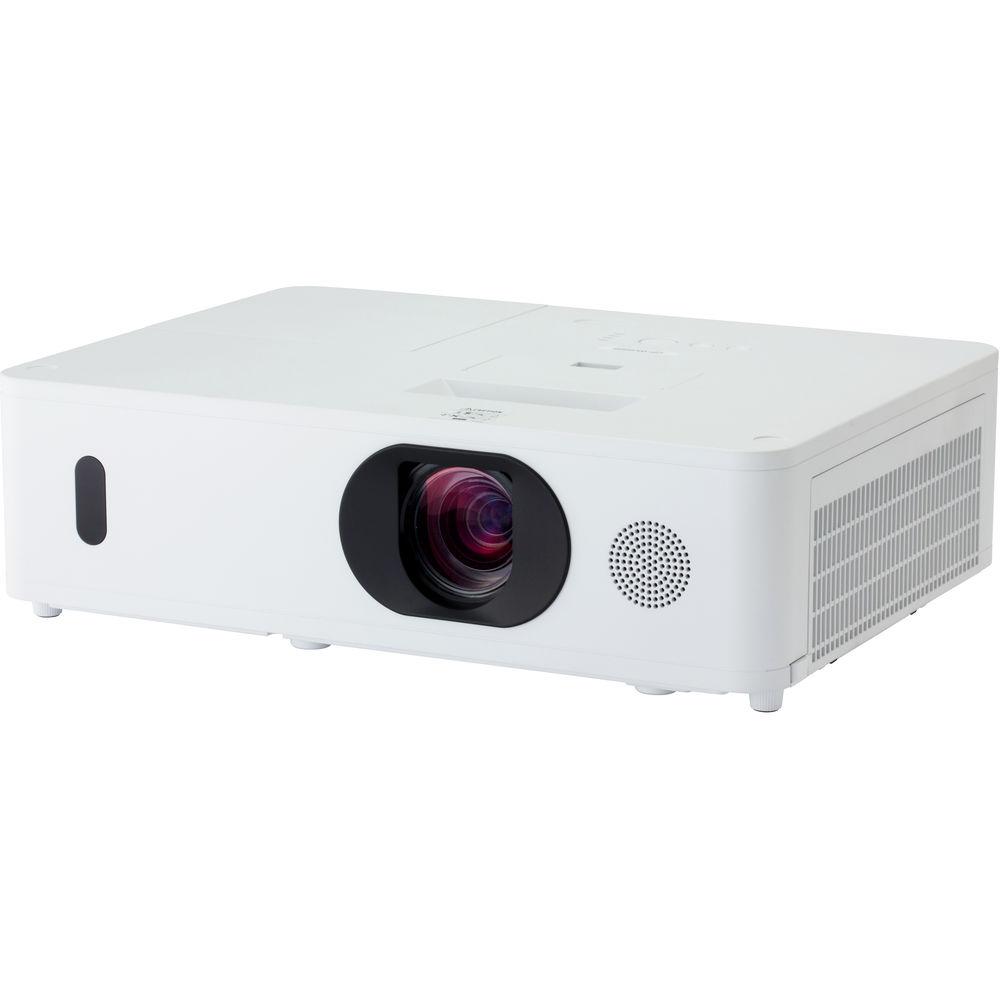

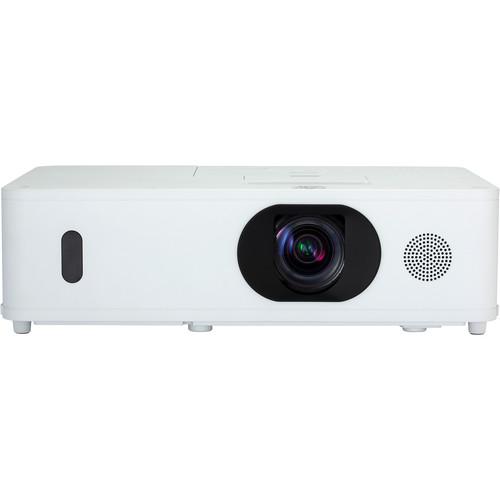

Product description The CP-WU5505 5200-Lumen WUXGA LCD Projector with HDBaseT Port from Hitachi is part of the Collegiate Series of projectors, designed to produce bright whites and colors that transform classrooms, lecture halls, and auditoriums into multimedia learning centers. The CP-WU5505 is stackable; one projector can be placed on top of another so both will project the same image onto a screen for added brightness. Multiple projectors can also be placed side by side to project a larger image, with the built-in edge blending technology able to compensate for overlap in the projectors' throws.
Incorporating Hitachi's technology, the CP-WU5505 features an image-enhancing combination of Accentualizer, High Dynamic Contrast Range (HDCR), and Image Optimizer, all of which contribute to the overall visual experience. Plus, Hitachi's Intelligent Eco and Saver Modes with ImageCare combine optimal picture performance with maximum energy savings. - Accentualizer
- Hitachi technology makes pictures look more real by enhancing sharpness, gloss, and shade to make pictures as clear as pictures on a flat-panel device. You can also adjust the effects by three levels according to your surroundings so that the colors of projected images are the actual colors of the objects they represent.
- DICOM Simulation Mode
- The DICOM (Digital Imaging and Communications in Medicine) Simulation mode projects grayscale images. This mode simulates the DICOM standard, which is a standard applicable to digital communications in medicine, and is useful for displaying medical images such as X-rays. This mode is suitable for viewing grayscale medical images, such as X-rays, for training and educational purposes.
Note: The projector is not a medical device and is not compliant with the DICOM standard. Neither the projector nor the DICOM Simulation mode should be used for medical diagnosis. - Edge Blending
- It supports instant blending, wherein blending is performed easily without the use of any special equipment, and automatic blending, wherein you can use a camera and quickly perform high-precision blending processing automatically. Automatic blending requires installation of a specialized application to your computer.
- Warping
- Warping is possible from your computer by using the specialized application. Projection is possible on spherical surfaces and surfaces with corners, as well as conventional flat screens.
- HDCR (High Dynamic Contrast Range)
- Using this function, blurred images caused by room lighting or outside light sources are corrected, and an effect similar to increasing contrast occurs. This results in clear images even in bright rooms.
- Image Optimizer
- The Image Optimizer automatically adjusts HDCR and Accentualizer to improve visibility as lamp brightness dims over time.
- Picture by Picture and Picture in Picture
- The projector supports images from two input signals at the same time. Picture by Picture (P by P) enables you to compare two images side by side. Picture in Picture (P in P) enables you to display one image within another image. These functions are handy when you need to compare two sets of data or other material.
- V/H Lens Shift
- For ease of installation, V/H Lens Shift allows you to move the image without having to physically move the projector.
- Picture Shift
- Enables the user to fit or align contents to the screen by shifting the content area vertically.
- Perfect Fit
- Enables the user to adjust individual corners and sides independent of one another. Perfect Fit provides vertical and horizontal digital correction of either barrel or pin cushion distortions. This feature helps correct geometric and complicated distortions. Perfect Fit allows the projected image to fit correctly to the screen quickly and easily.
- HDMI Out
- When sharing content on multiple screens by multiple projectors, the HDMI output is used to bring the content signal from one projector to another.
- Network Control, Maintenance, and Security
- Embedded networking gives you the ability to manage and control multiple projectors over your LAN. Features include scheduling of events, centralized reporting, image transfer, and e-mail alerts for reactive and routine maintenance.
- PJMessenger
- PJMessenger function allows you to send and display text messages and audio alerts on your networked projectors. It is an easy and efficient way to send announcements out to multiple units.
- Projector Quick Connection App for Mobile Devices
- Hitachi's iOS application offers full projector control and also provides the capability to display photos, document files, and web site contents. The app is available for iPad, iPhone, and Android devices. It works over your LAN via your RJ-45 port or via an optional USBWL11N wireless adapter.
- Wireless Presentation Compatible
- You can connect the projector to a computer or your network using the optional USB wireless adapter (part number USBWL11N). The adapter supports IEEE802.11 b/g/n.
UPC: 050585155237 In the Box Hitachi CP-WU5505 5200-Lumen WUXGA LCD Projector with HDBaseT Port Remote Control with Batteries Power Cord Computer Cable Lens Cover Adapter Cover Security Label Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hitachi CP-WU5505 5200-Lumen WUXGA LCD Projector with HDBaseT Port in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHitachi CP-WU5505 Specs | | | Display System | 3-Chip LCD | | Native Chip Resolution | 1920 x 1200 (WUXGA) | | Supported Resolutions | VGA
SVGA
XGA
WXGA
WXGA+
SXGA
SXGA+
WSXGA+
UXGA
WUXGA
MAC16 | | Max Brightness | 5200 Lumens | | Aspect Ratio | Native: 16:10
Native: 4:3
Supported: 14:9
Supported: 16:9 | | Contrast Ratio | 5000:1 | | Color Depth | 8-Bit (16.78 Million Colors) | | Scan | Horizontal: 15 to 106 kHz
Vertical: 50 to 120 Hz | | | | Focus | Manual | | Optical Zoom | Manual: 1.7x | | Throw Distance | 33 - 597" / 83.82 - 1516.38 cm | | Throw Ratio | 1.4 - 2.3:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Horizontal: ± 30°

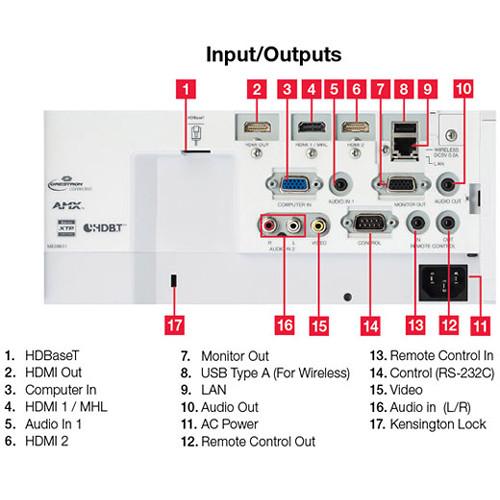

Vertical: ± 30° | | Picture-in-Picture | Yes | | Built-In Speaker | Yes | | Speaker Power | 16W | | | | Inputs/Outputs | 1 x HDBaseT (RJ45) LAN
1 x HDMI Audio/Video (Input)
1 x HDMI with MHL Support Audio/Video (Input)
1 x HDMI Audio/Video (Output)
1 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x RS-232C (DE-9) Control (Input)
1 x 1/8" (3.5 mm) Mini Control (Input)
1 x 1/8" (3.5 mm) Mini Control (Output)
1 x Ethernet (RJ45) LAN
1 x USB Type-A Female | | Wireless LAN / Wi-Fi | No, Optional Adapter Available Requires optional wireless adapter; connects via USB Type-A port. | | | | Lamp Power | 300 W | | Expected Lamp Life | Medium Brightness: 4000 Hours
Low Brightness: 6000 Hours | | Security | Cable Lock Slot | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 440 W | | Temperature | Operating
32 to 95°F (0 to 35°C) | | Dimensions (W x H x D) | 18.1 x 13.1 x 5.4" / 46.0 x 33.3 x 13.7 cm | | Weight | 14.00 lb / 6.35 kg | | | | Package Weight | 22.0 lb | | Box Dimensions (LxWxH) | 22.0 x 19.0 x 9.0" |
