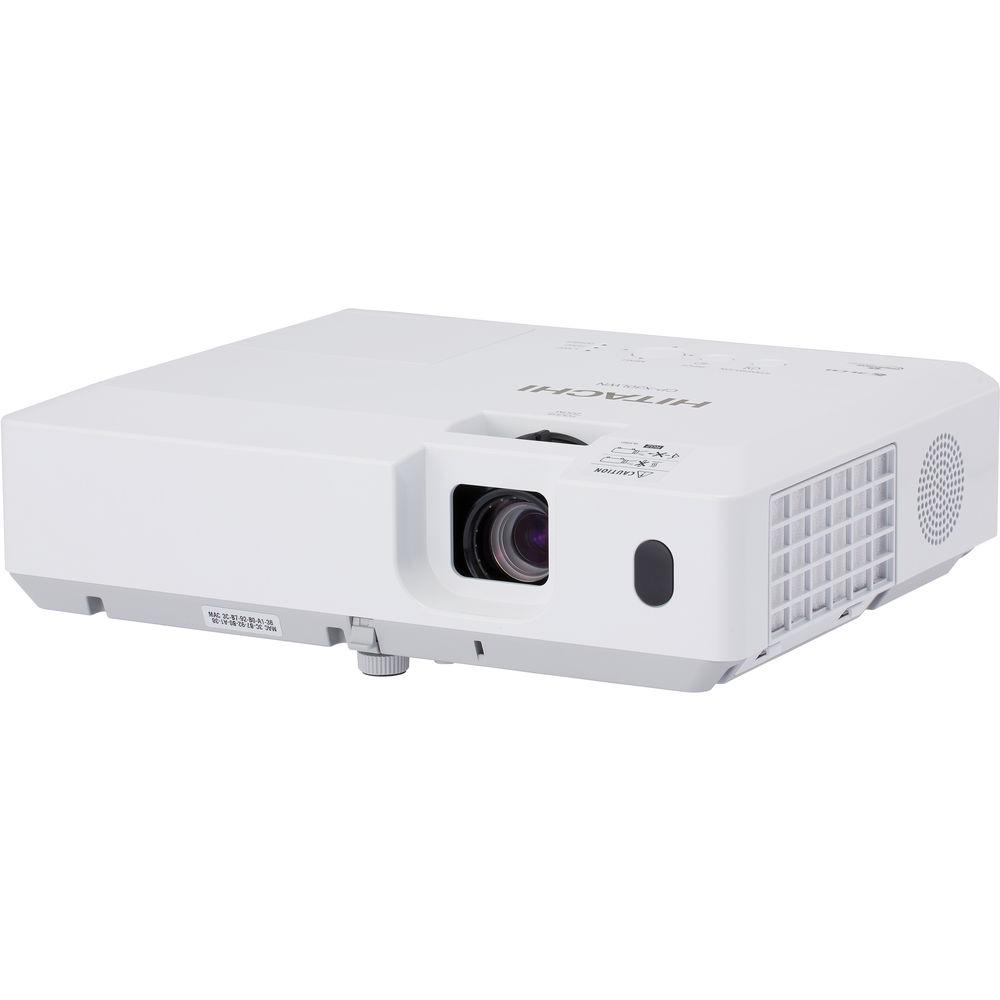

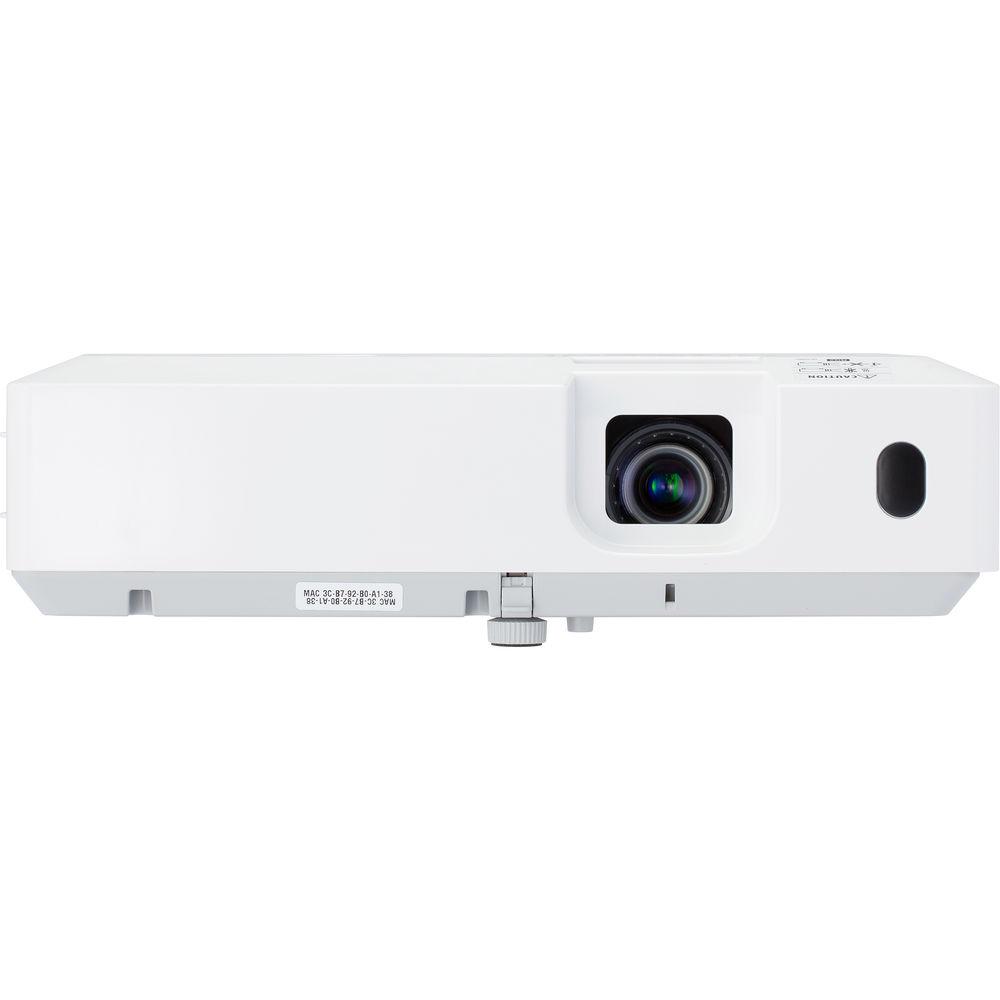

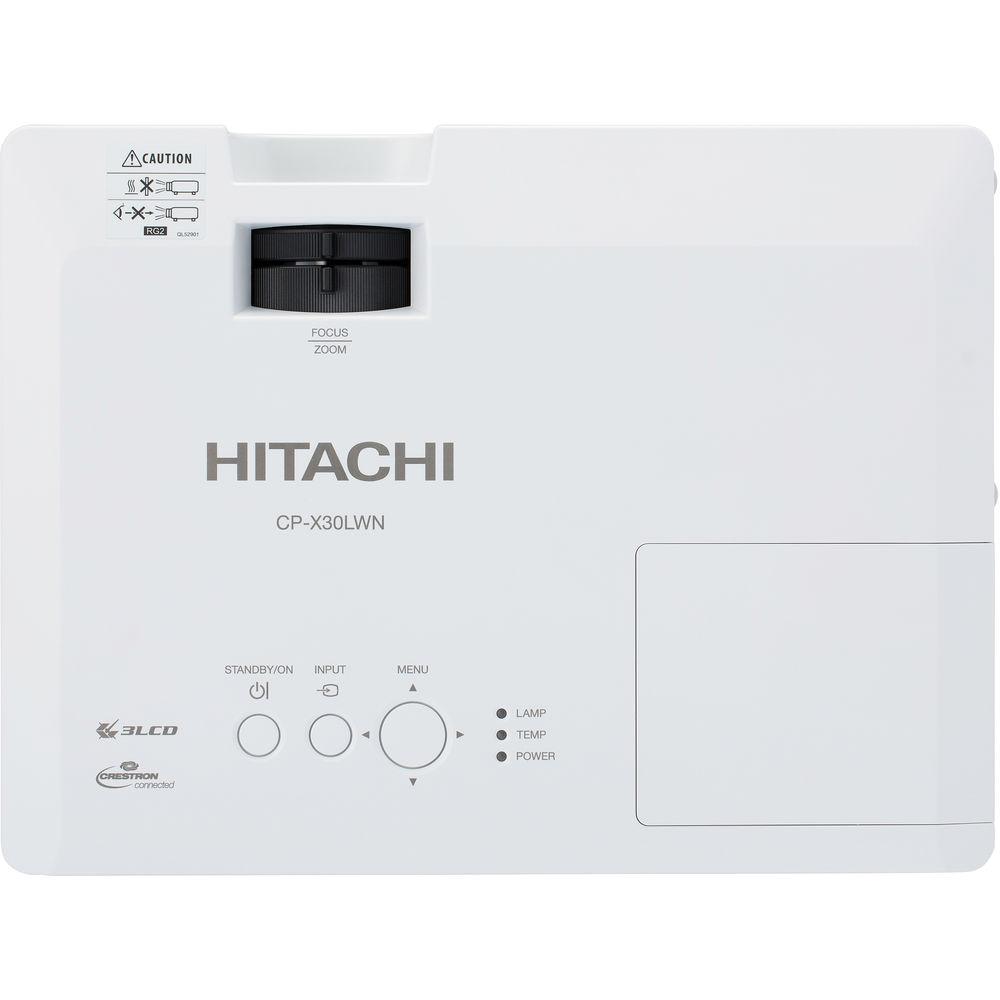

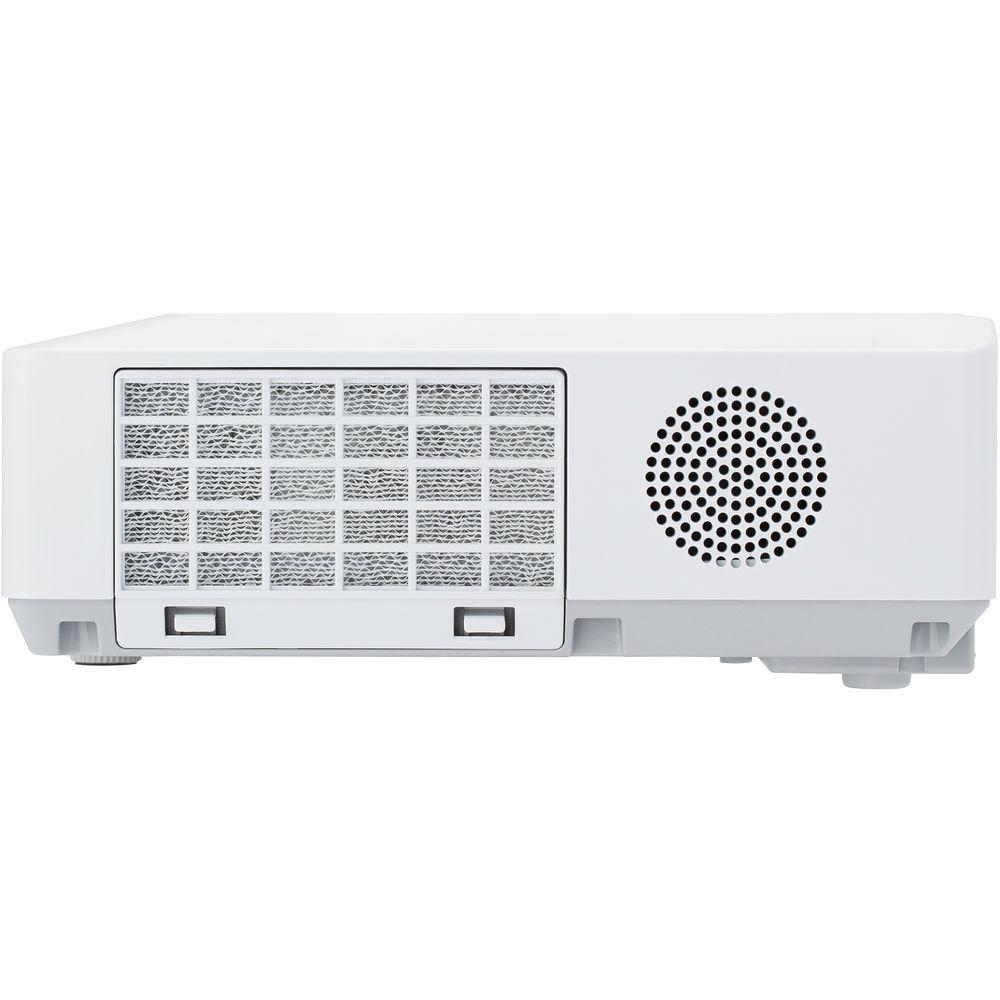

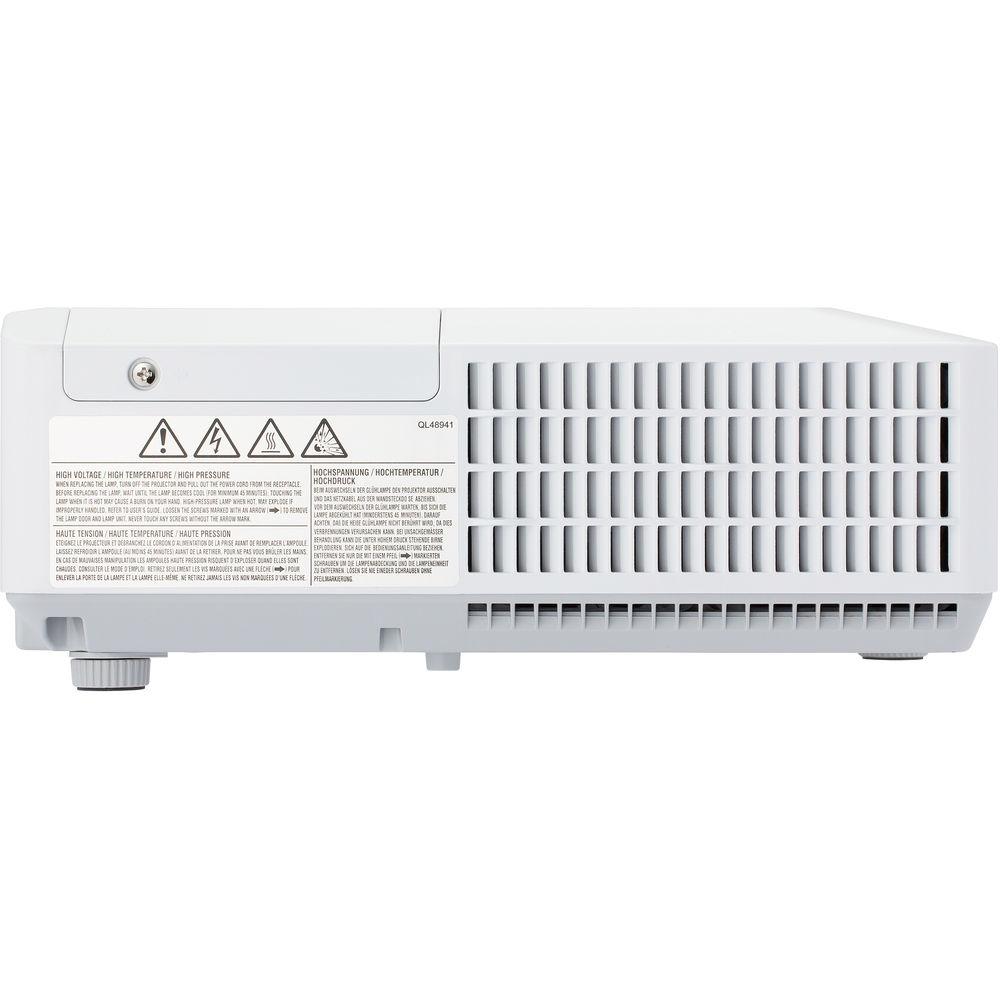

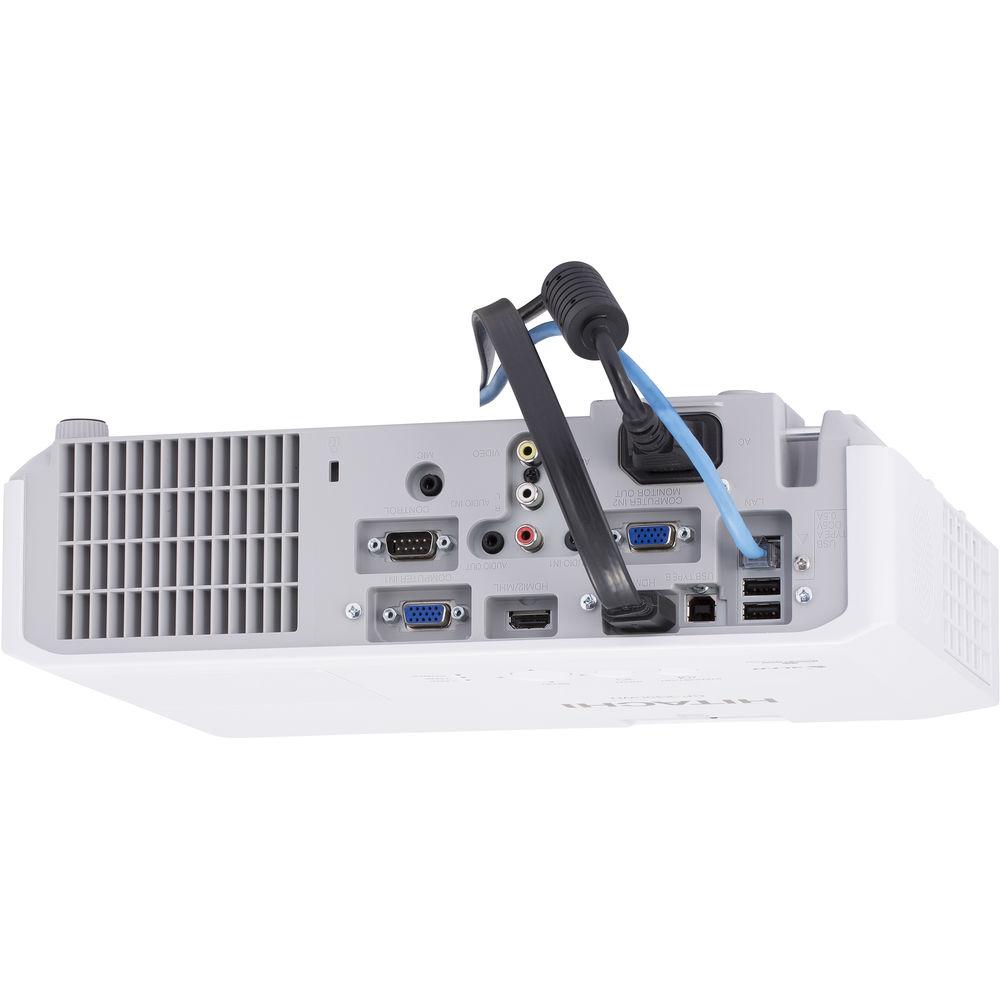

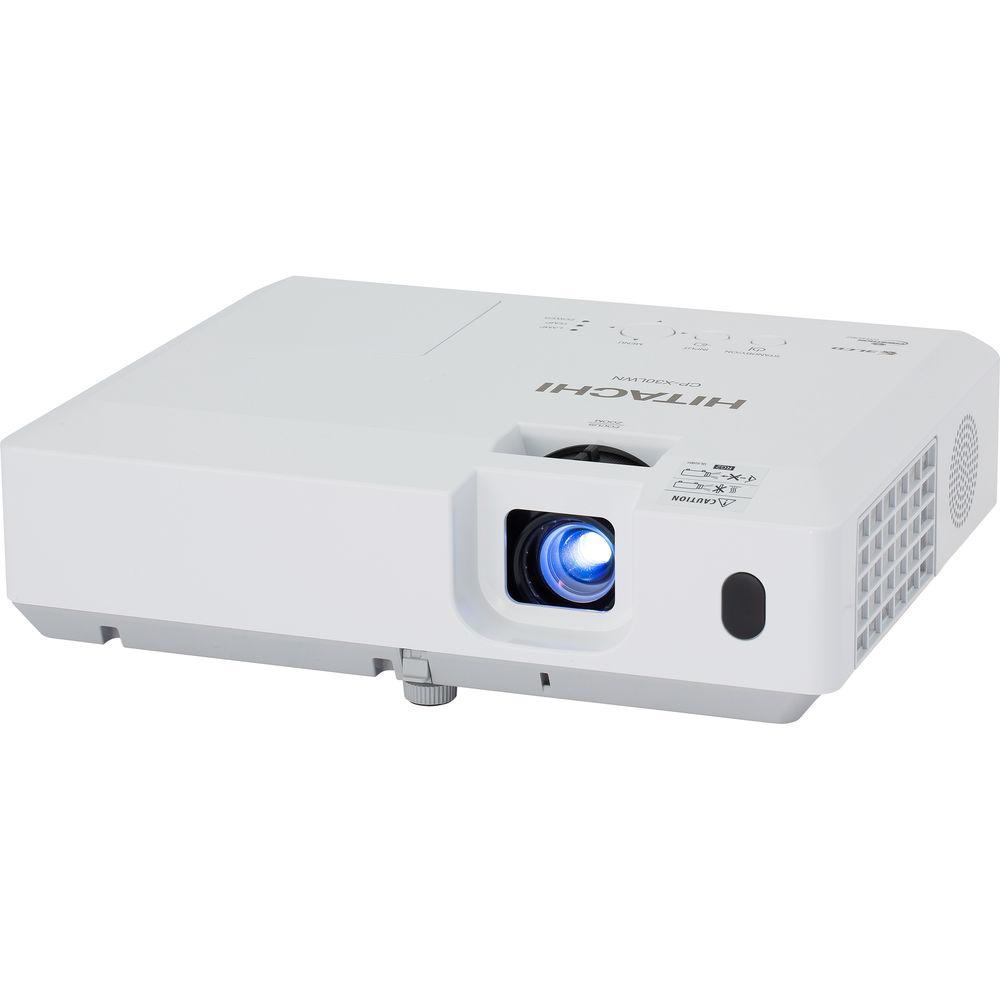

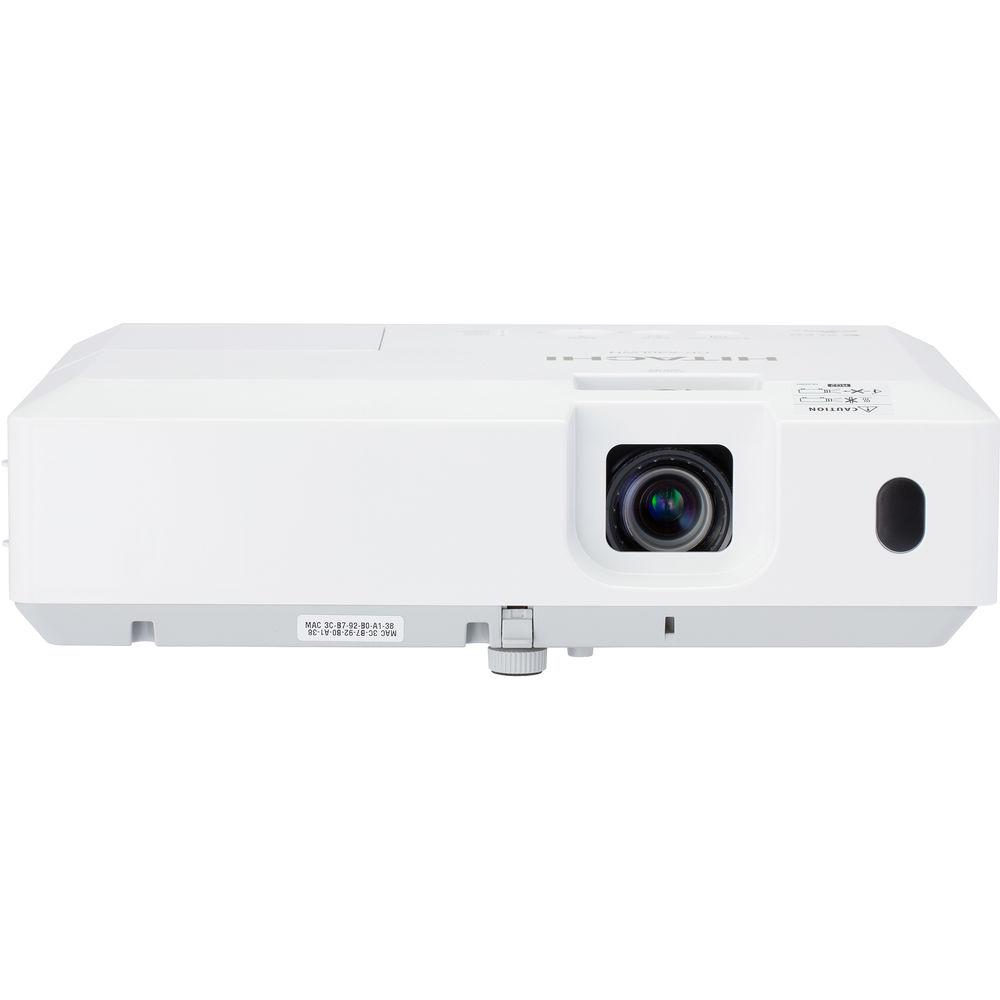

User Manual for Hitachi CP-WX30LWN 3000 Lumen WXGA LCD Projector Click to enlarge the picture
Contents of the user manual for the Hitachi CP-WX30LWN 3000 Lumen WXGA LCD
- Product category: Multimedia Projectors Hitachi
- Brand: Hitachi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hitachi Multimedia Projectors
 |
User manual for the Hitachi CP-WX30LWN 3000 Lumen WXGA LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hitachi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hitachi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hitachi product will considerably shorten its lifespan!
|
Product description Brighten up your presentations with the Hitachi CP-WX30LWN 3000 Lumen WXGA LCD Projector. Its 3000 lumens of brightness, combined with the 10,000:1 dynamic contrast ratio, ensures that images remain visible in most rooms, even with ambient light. The projector has two HDMI inputs to accommodate a variety of sources. A built-in 16W speaker eliminates the need for an external sound system. It is controllable via Ethernet and USB. - MHL (Mobile High-Definition)
- MHL (Mobile High-Definition) allows you to mirror your phone/tablet screen with the projector display. It is compatible with any and all apps.
- PJMessenger
- The PJMessenger function allows you to send and display text messages and audio alerts on your Hitachi networked projectors. It is an easy and efficient way to send announcements out to multiple units.
- Present Content via LAN
- Hitachi's suite of networking software allows you to easily send content directly from your computer to the projector via your LAN connection.
- Projector Quick Connection App for Mobile Devices
- The mobile app offers full projector control and also provides the capability to display photos, document files, and website contents. It is available for iPad, iPhone, and Android devices. The projector works over your LAN via your RJ45 port or via an optional USB-WL11N wireless adapter.
- ImageCare Technology
- ImageCare Technology is a lamp power control function that combines optimal picture performance with maximum energy savings by decreasing energy usage, improving contrast ratio, and lengthening lamp life.
- Advanced Features
- Wireless capability (optional), 16W audio output, 10,000 hours hybrid filter, accentualizer, High Dynamic Contrast Range (HDCR), image-optimizer, cloning function, perfect fit, network control, maintenance, and security, 36 to 455" (91 to 1155 cm) focus distance
UPC: 050585155695 In the Box Hitachi CP-WX30LWN 3000 Lumen WXGA LCD Projector Limited 3-Year Warranty on Projector Limited 5-Year or 10,000-Hour Warranty on Lamp, Whichever Comes First Table of Contents
|
Upload User Manual
Have you got an user manual for the Hitachi CP-WX30LWN 3000 Lumen WXGA LCD Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

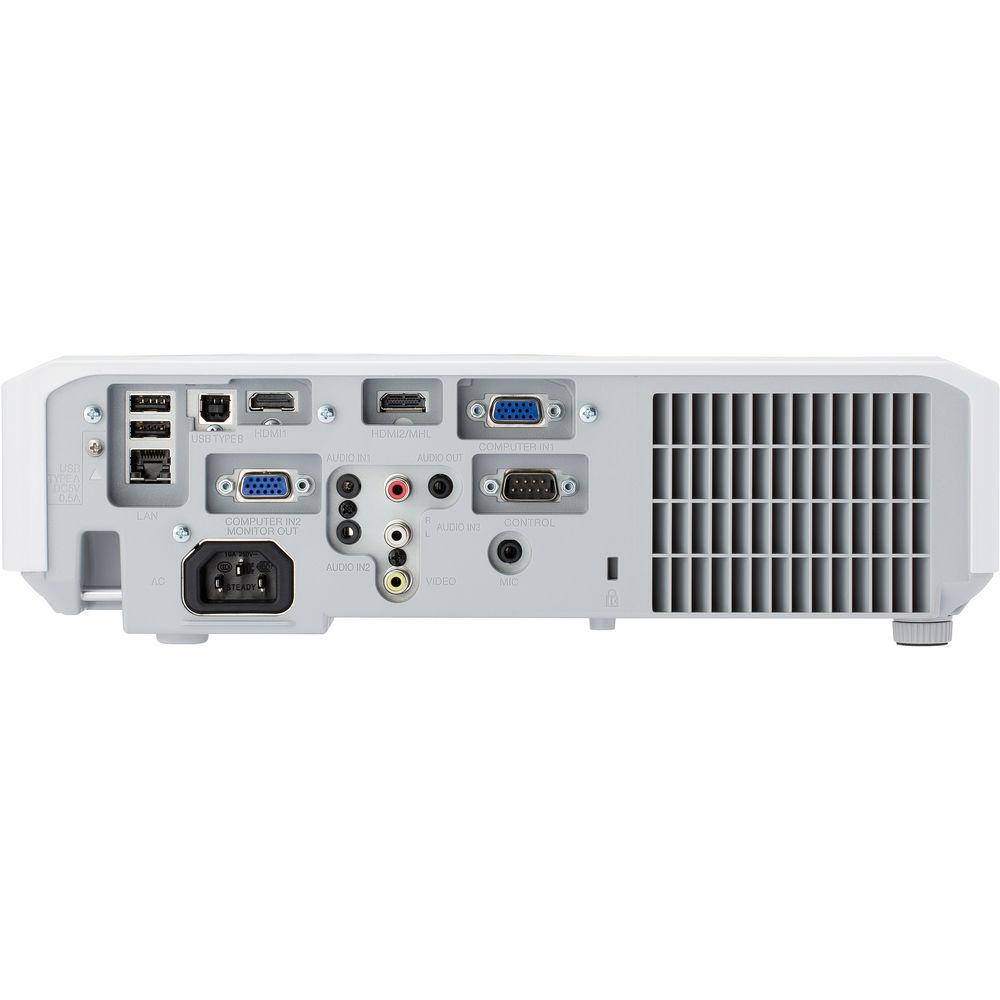

Technical parametersHitachi CP-WX30LWN Specs | | | Display System | 3-Chip LCD | | Native Chip Resolution | 1280 x 800 (WXGA) | | Max Brightness | 3000 Lumens | | Contrast Ratio | 10000:1 | | DLP Link 3D | None | | Supported 3D Formats | None | | | | Throw Ratio | 1.5 - 1.8:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | Built-In Speaker | Yes (Mono) | | | | Inputs/Outputs | 1 x HDMI Video
1 x HDMI with MHL Support Video
1 x RS-232C (Unspecified Connector) Control
1 x Ethernet (RJ45) LAN 2 x USB Type A
1 x USB Type B
2 x Computer input
1 x Audio Output
3 x Audio Input
1 x Microphone Input
1 x Security Bar
1 x AC | | | | Expected Lamp Life | Medium Brightness: 10,000 Hours | | Fan Noise | Full Brightness: 37 dB Whisper mode: 32 dB | | Power Consumption | Full Brightness: 320 W | | Dimensions (W x H x D) | 12.8 x 9.7 x 3.4" / 32.5 x 24.6 x 8.6 cm | | Weight | 7.3 lb / 3.3 kg | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 18.8 x 14.7 x 6.4" |
